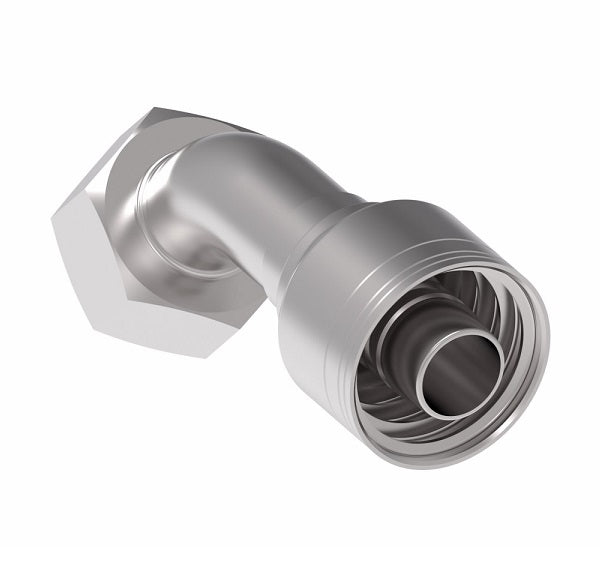

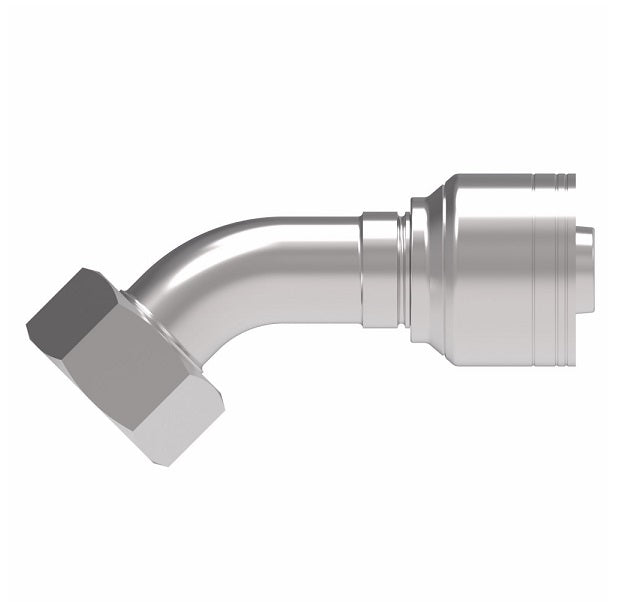

1A25DLA16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel

1A25DLA16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel

Name: 1A25DLA16 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty, 45° Elbow (DLA) Crimp Fitting | L28 Female DKO/DIN x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A25DLA16 Danfoss
Price: 82.77 USD
Availability: InStock

$82.77 - $82.77

$82.77

$82.77 - $82.77

$82.77

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty, Crimp Fitting (DLA) - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 1A25DLA16 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	L28 Female DIN, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	EØ	H	Hex 1
1A5DLA4	M12X1.5	-	-04	-	-	-	-	-
1A6DLA4	M14 x 1.5	8	-04	2.46"	1.53"	0.16"	0.69"	0.67"
1A8DLA4	M16 X 1.5	10	-04	2.55"	1.63"	0.17"	0.72"	0.75"
1A8DLA6	M16 x 1.5	10	-06	2.63"	1.63"	0.26"	0.75"	0.75"
1A10DLA6	M18 x 1.5	12	-06	2.75"	1.75"	0.26"	0.81"	0.87"
1A12DLA8	M22 x 1.5	15	-08	3.22"	2.05"	0.38"	0.85"	1.06"
1A16DLA10	M26 x 1.5	18	-10	3.48"	2.32"	0.50"	1.08"	1.26"
1A20DLA12	M30 x 2	22	-12	3.87"	2.68"	0.61"	1.02"	1.42"
1A25DLA16	M36 x 2	28	-16	4.72"	3.37"	0.81"	1.32"	1.61"
