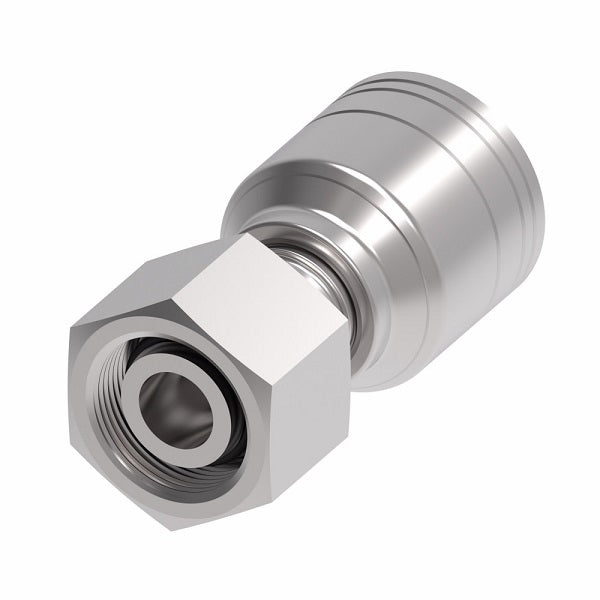

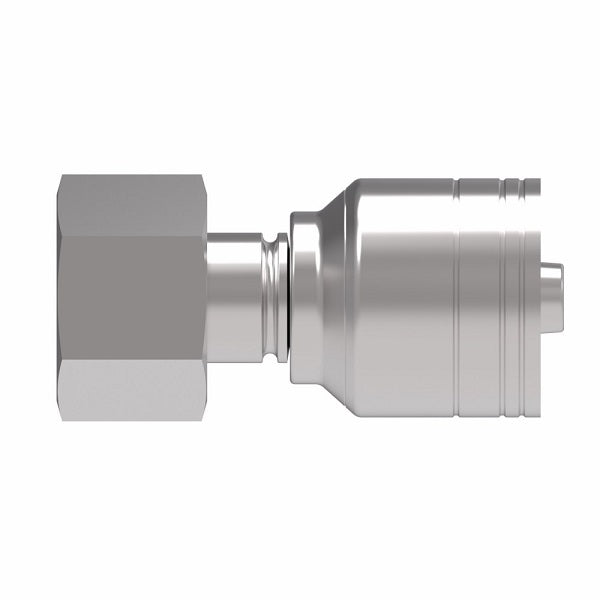

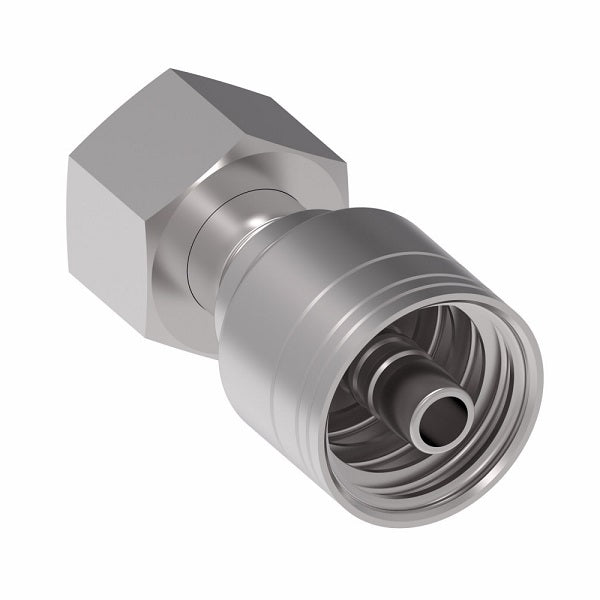

1A32DL20 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Light Duty (DL) Crimp Fitting | L35 Female DKO/DIN x -20 Hose Barb | Steel

Original price $134.18 - Original price $134.18
Original price
$134.18
$134.18 - $134.18
Current price $134.18

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Light Duty Crimp Fitting (DL) - Straight

(Formerly Eaton Aeroquip)

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1A32DL20 Danfoss
Shape (Orientation): Straight
Ends Configuration: L35 Female DIN, 1-1/4in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Steel
Part Number
Thread Tube OD Hose Size A D Hex 1

1A5DL4 M12 x 1.5 6 -04 1.89" 0.97" 0.16" 0.67"
1A6DL4 M14 x 1.5 8 -04 1.81" 0.89" 0.16" 0.67"
1A8DL4 M16 x 1.5 10 -04 1.90" 0.98" 0.17" 0.75"
1A8DL6 M16 x 1.5 10 -06 1.99" 0.99" 0.26" 0.75"
1A10DL6 M18 x 1.5 12 -06 2.01" 1.02" 0.26" 0.87"
1A12DL8 M22 x 1.5 15 -08 2.30" 1.13" 0.38" 1.06"
1A16DL8 M26 x 1.5 18 -08 - - - -
1A16DL10 M26 x 1.5 18 -10 2.33" 1.17" 0.50" 1.26"
1A16DL12 M26 x 1.5 18 -12 - - - -
1A20DL12 M30 x 2 22 -12 2.46" 1.27" 0.61" 1.42"
1A25DL16 M36 x 2 28 -16 2.68" 1.33" 0.81" 1.61"
1A32DL20 M45 x 2 35 -20 3.29" 1.56" 1.05" 1.97"
1A40DL24 M52 x 2 42 -24 3.43" 1.61" 1.26" 2.36"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
