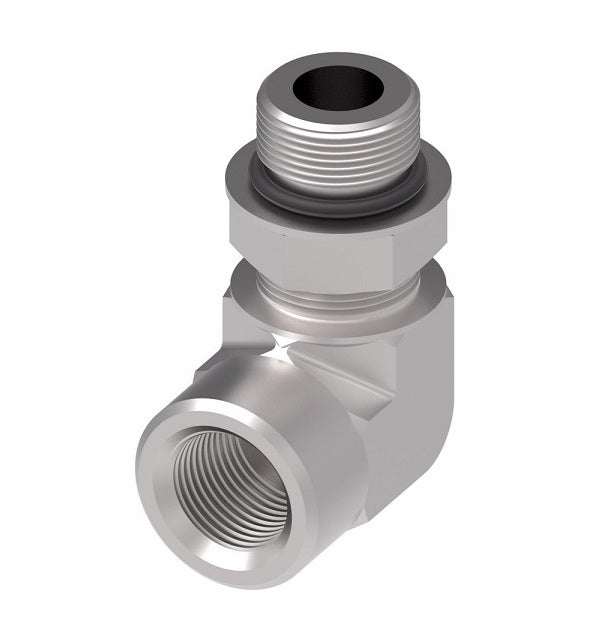

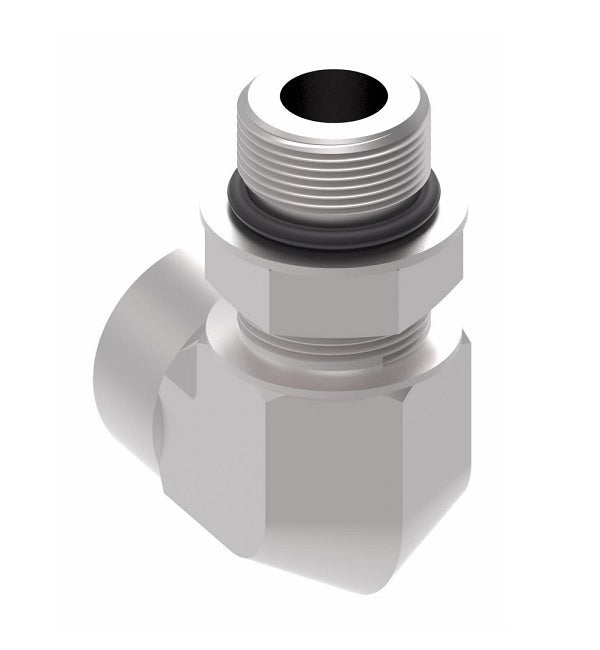

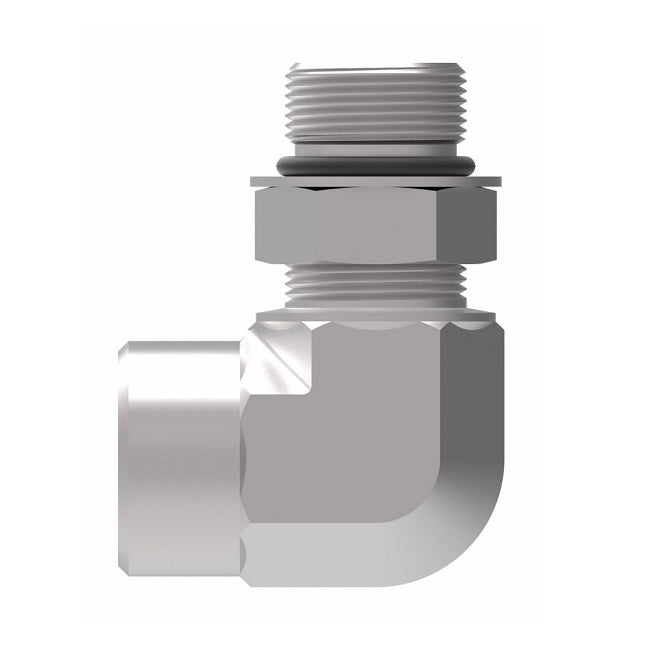

206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

206801-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

$34.50 - $34.50
$34.50
$34.50 - $34.50
$34.50

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 206801-12-12S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female NPTF, 3/4in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Part Number
Steel
without O-Ring		 Thread P Thread T A B
206801-4-6S - 1/4-18 9/16-18 - -
206801-6-8S - 3/8-18 3/4-16 1.02" 1.62"
206801-8-8S 206801-1-8-8S 1/2-14 3/4-16 1.23" 1.73"
206801-8-10S - 1/2-14 7/8-14 - -
206801-12-12S - 3/4-14 1-1/16-12 1.36" 2.17"
206801-16-16S - 1-11-1/2 1-5/16-12 1.62" 2.41"
206801-20-20S - 1-1/4-11 1/2 1-5/8-12 - -
