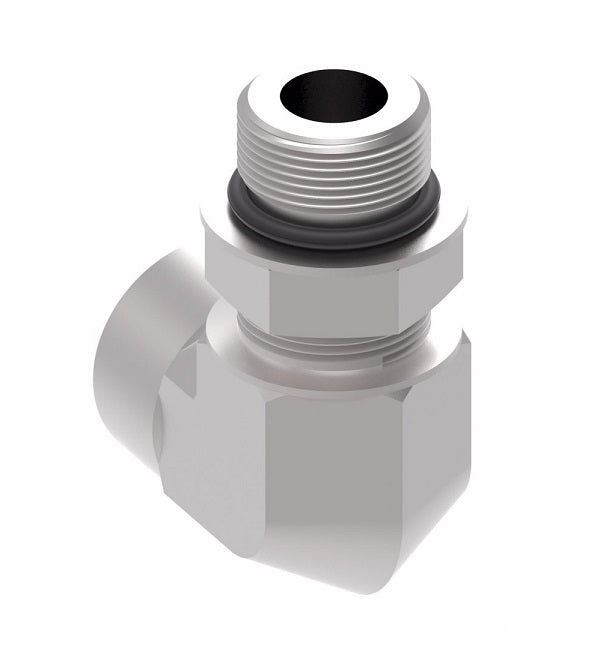

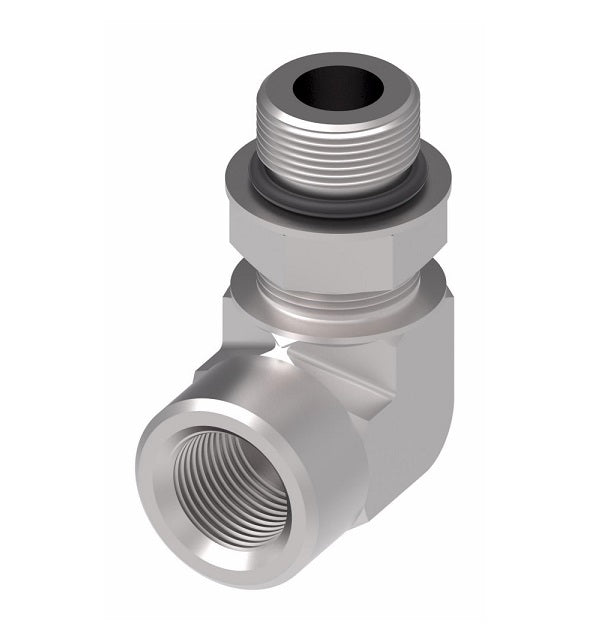

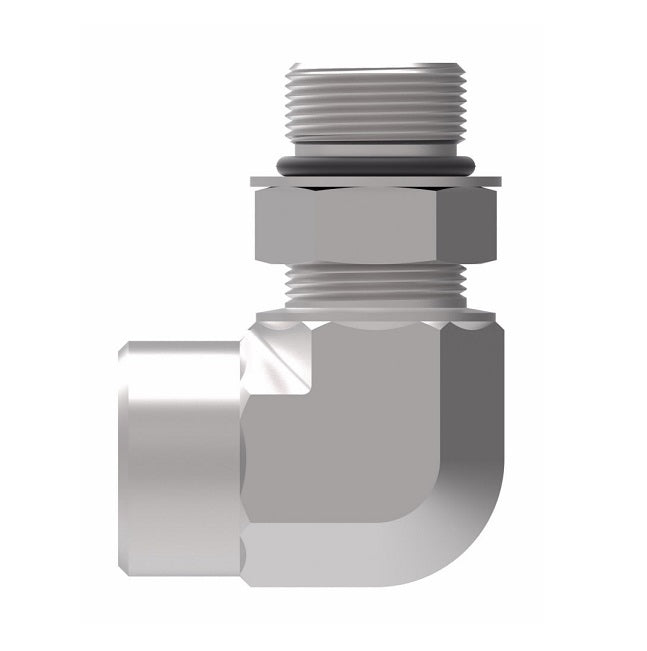

206801-20-20S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPTF x -20 Male SAE O-Ring Boss | Steel

206801-20-20S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPTF x -20 Male SAE O-Ring Boss | Steel

Name: 206801-20-20S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -20 Female NPTF x -20 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 206801-20-20S Danfoss
Price: 122.43 USD
Availability: InStock

$122.43 - $122.43

$122.43

$122.43 - $122.43

$122.43

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 206801-20-20S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in Female NPTF, 1-1/4in Male O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Buna-N O-Rings are standard.


Part Number Steel Buna-N O-Ring	Part Number Steel without O-Ring	Thread P	Thread T	A	B
206801-4-6S	-	1/4-18	9/16-18	-	-
206801-6-8S	-	3/8-18	3/4-16	1.02"	1.62"
206801-8-8S	206801-1-8-8S	1/2-14	3/4-16	1.23"	1.73"
206801-8-10S	-	1/2-14	7/8-14	-	-
206801-12-12S	-	3/4-14	1-1/16-12	1.36"	2.17"
206801-16-16S	-	1-11-1/2	1-5/16-12	1.62"	2.41"
206801-20-20S	-	1-1/4-11 1/2	1-5/8-12	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
