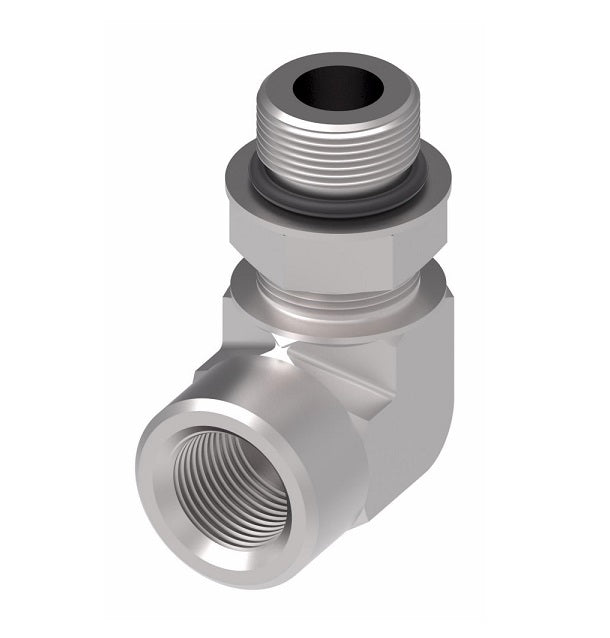

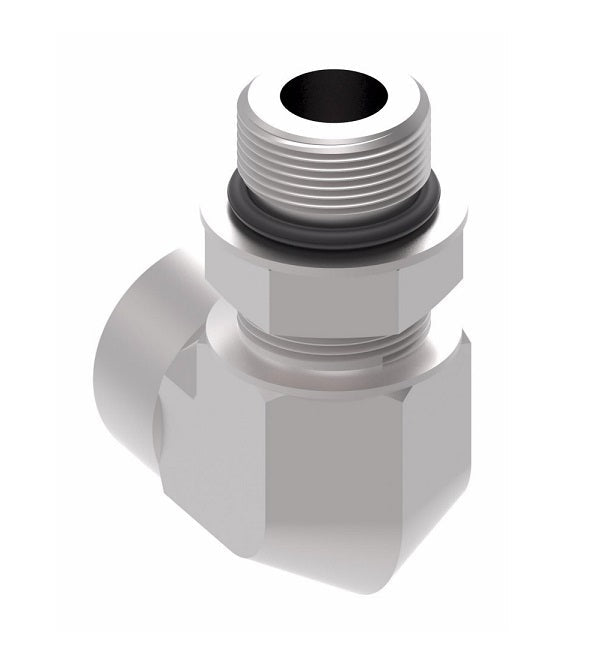

206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel

Name: 206801-8-10S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -08 Female NPTF x -10 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: 206801-8-10S Danfoss
Price: 47.34 USD
Availability: InStock

$47.34 - $47.34

$47.34

$47.34 - $47.34

$47.34

Aeroquip® by Danfoss
Internal Pipe/SAE O-Ring Boss (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 206801-8-10S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female NPTF, 5/8in Male O-Ring Boss
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Buna-N O-Rings are standard.


Part Number Steel Buna-N O-Ring	Part Number Steel without O-Ring	Thread P	Thread T	A	B
206801-4-6S	-	1/4-18	9/16-18	-	-
206801-6-8S	-	3/8-18	3/4-16	1.02"	1.62"
206801-8-8S	206801-1-8-8S	1/2-14	3/4-16	1.23"	1.73"
206801-8-10S	-	1/2-14	7/8-14	-	-
206801-12-12S	-	3/4-14	1-1/16-12	1.36"	2.17"
206801-16-16S	-	1-11-1/2	1-5/16-12	1.62"	2.41"
206801-20-20S	-	1-1/4-11 1/2	1-5/8-12	-	-
