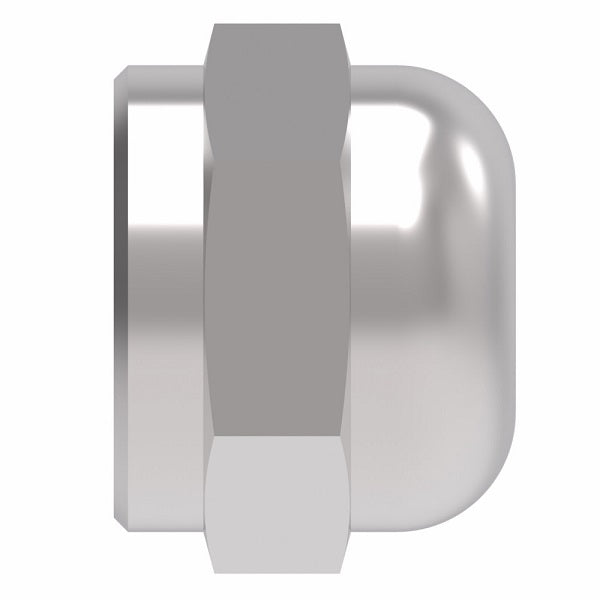

210292-20S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -20 Female 37° JIC Flare | Steel

210292-20S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -20 Female 37° JIC Flare | Steel

Name: 210292-20S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -20 Female 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 210292-20S Danfoss
Price: 10.64 USD
Availability: InStock

$10.64 - $10.64

$10.64

$10.64 - $10.64

$10.64

Aeroquip® by Danfoss
Female 37° JIC Flare Cap Nut Adapter
Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 210292-20S Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1-1/4in Female JIC
Material(s):	Steel

Specifications:
Ref. SAE 070112


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T	A	B
210292-2S	-	-	-	-	-
210292-3S	-	0.19"	3/8-24	0.56"	0.44"
210292-4S	259-210292-4	0.25"	7/16-20	0.59"	0.56"
210292-5S	-	0.31"	1/2-20	0.61"	0.62"
210292-6S	259-210292-6	0.38"	9/16-18	0.62"	0.69"
210292-8S	259-210292-8	0.50"	3/4-16	0.75"	0.88"
210292-10S	-	0.63"	7/8-14	0.84"	1.00"
210292-12S	259-210292-12	0.75"	1-1/16-12	0.91"	1.25"
210292-16S	-	1.00"	1-5/16-12	1.02"	1.50"
210292-20S	-	1.25"	1-5/8-12	1.06"	2.00"
210292-24S	-	1.50"	1-7/8-12	1.19"	2.25"
210292-32S	-	2.00"	2-1/2-12	1.44"	2.88"
