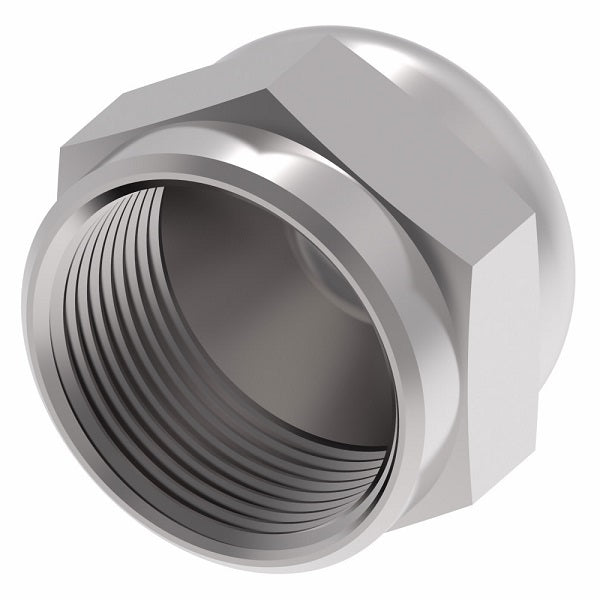

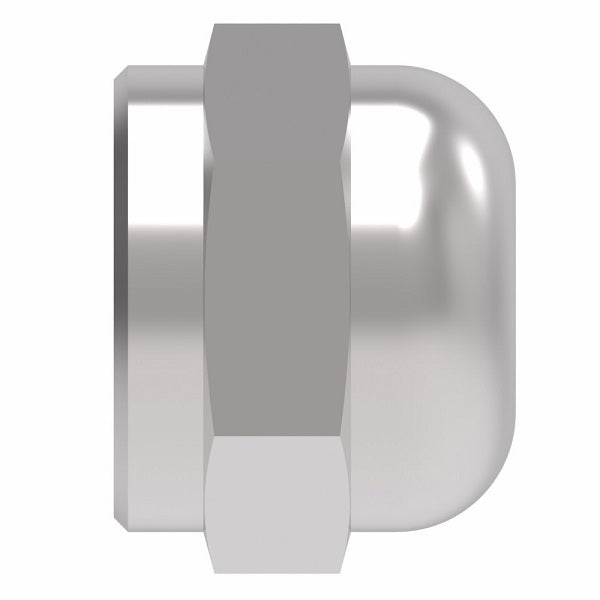

259-210292-6 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -06 Female 37° JIC Flare | Stainless Steel

259-210292-6 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -06 Female 37° JIC Flare | Stainless Steel

Name: 259-210292-6 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -06 Female 37° JIC Flare | Stainless Steel
Brand: Danfoss/Eaton
SKU: 259-210292-6 Danfoss
Price: 33.32 USD
Availability: InStock

$33.32 - $33.32

$33.32

$33.32 - $33.32

$33.32

Aeroquip® by Danfoss
Female 37° JIC Flare Cap Nut Adapter
Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 259-210292-6 Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	3/8in Female JIC
Material(s):	Stainless Steel

Specifications:
Ref. SAE 070112


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T	A	B
210292-2S	-	-	-	-	-
210292-3S	-	0.19"	3/8-24	0.56"	0.44"
210292-4S	259-210292-4	0.25"	7/16-20	0.59"	0.56"
210292-5S	-	0.31"	1/2-20	0.61"	0.62"
210292-6S	259-210292-6	0.38"	9/16-18	0.62"	0.69"
210292-8S	259-210292-8	0.50"	3/4-16	0.75"	0.88"
210292-10S	-	0.63"	7/8-14	0.84"	1.00"
210292-12S	259-210292-12	0.75"	1-1/16-12	0.91"	1.25"
210292-16S	-	1.00"	1-5/16-12	1.02"	1.50"
210292-20S	-	1.25"	1-5/8-12	1.06"	2.00"
210292-24S	-	1.50"	1-7/8-12	1.19"	2.25"
210292-32S	-	2.00"	2-1/2-12	1.44"	2.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
