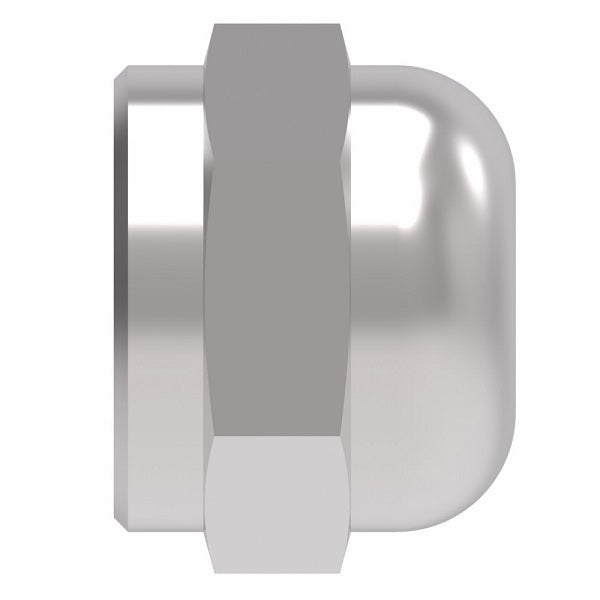

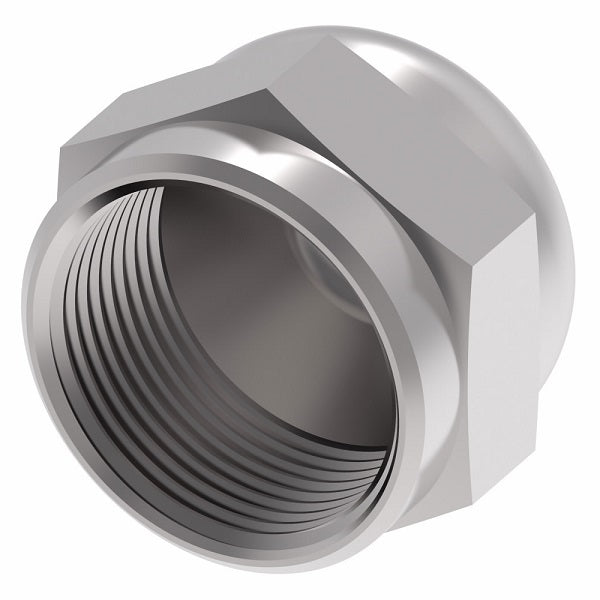

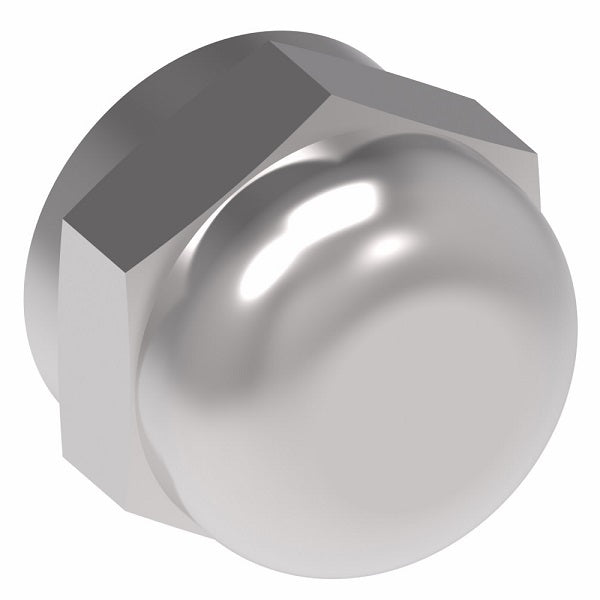

210292-4S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -04 Female 37° JIC Flare | Steel
210292-4S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -04 Female 37° JIC Flare | Steel
210292-4S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -04 Female 37° JIC Flare | Steel
210292-4S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -04 Female 37° JIC Flare | Steel

210292-4S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -04 Female 37° JIC Flare | Steel

$1.52 - $1.52
$1.52
$1.52 - $1.52
$1.52

Aeroquip® by Danfoss
Female 37° JIC Flare Cap Nut Adapter
Female 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 210292-4S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1/4in Female JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070112
Part Number
Steel		 Part Number
Stainless Steel 		Tube O.D. Thread T A B
210292-2S - - - - -
210292-3S - 0.19" 3/8-24 0.56" 0.44"
210292-4S 259-210292-4 0.25" 7/16-20 0.59" 0.56"
210292-5S - 0.31" 1/2-20 0.61" 0.62"
210292-6S 259-210292-6 0.38" 9/16-18 0.62" 0.69"
210292-8S 259-210292-8 0.50" 3/4-16 0.75" 0.88"
210292-10S - 0.63" 7/8-14 0.84" 1.00"
210292-12S 259-210292-12 0.75" 1-1/16-12 0.91" 1.25"
210292-16S - 1.00" 1-5/16-12 1.02" 1.50"
210292-20S - 1.25" 1-5/8-12 1.06" 2.00"
210292-24S - 1.50" 1-7/8-12 1.19" 2.25"
210292-32S - 2.00" 2-1/2-12 1.44" 2.88"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
