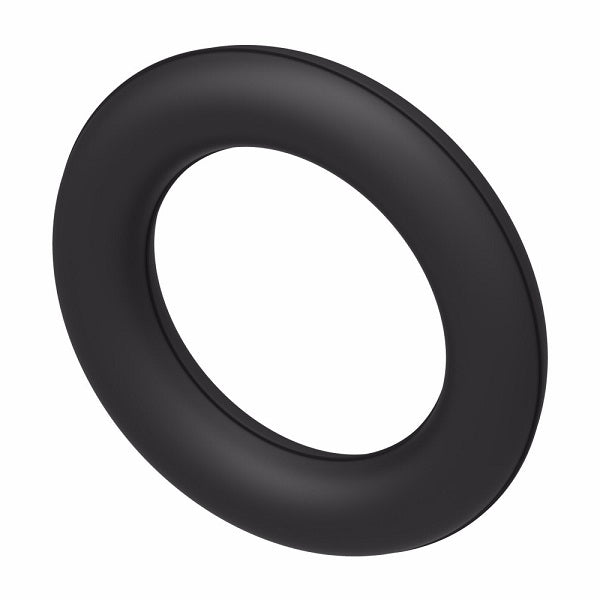

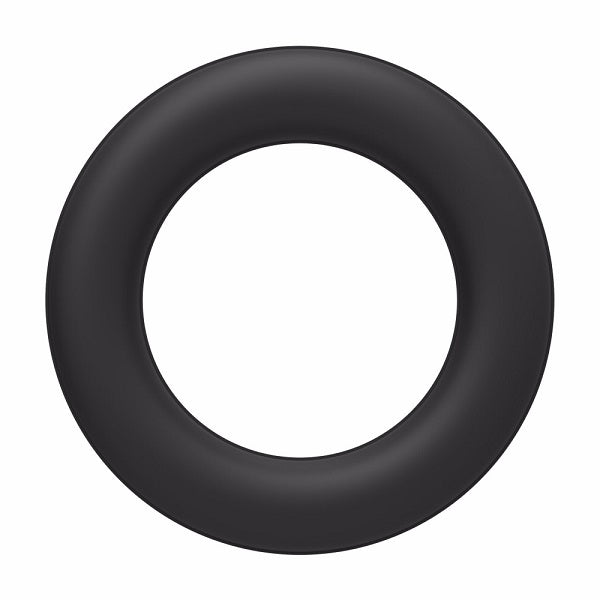

22012-16 Aeroquip by Danfoss | -16 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1" Tube Size
22012-16 Aeroquip by Danfoss | -16 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1" Tube Size
22012-16 Aeroquip by Danfoss | -16 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1" Tube Size

22012-16 Aeroquip by Danfoss | -16 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1" Tube Size

$1.78 - $1.78
$1.78
$1.78 - $1.78
$1.78

Aeroquip® by Danfoss
O-Ring for SAE O-Ring Boss Fittings (ORB)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 22012-16 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Buna-N/Nitrile Rubber
Technical Info:
O-Ring Base
Part Number		 Material Operating Temperature range
22617-
(Standard)		 Buna-N
Nitrile rubber
90 Durometer		 -30°F to +250°F
(-34°C to +121°C)
22033- EPDM
Ethylene propylene
diene monomer		 -65°F to +212°F
(-55°C to +100°C)
22068- Viton* Fluoroelastomer
90 Durometer		 -15°F to +400°F
(-25°C to +205°C)
22012- Buna-N
Low temperature nitrile rubber 90 Durometer		 -65°F to +225°F
(-55°C to +107°C)
Buna-N (Nitrile)
Part Number		 EPDM
Part Number		 Viton
Part Number		 Low Temperature
Buna-N (Nitrile)
Part Number		 Tube Size A E
22617-1 - - - -01 (1/16") 0.185" 0.056"
22617-2 - - - -02 (1/8") 0.239" 0.064"
22617-3 - - 22012-3 -03 (3/16") 0.301" 0.064"
22617-4 22033-4 22068-4 22012-4 -04 (1/4") 0.351" 0.072"
22617-5 - 22068-5 22012-5 -05 (5/16") 0.414" 0.072"
22617-6 22033-6 22068-6 22012-6 -06 (3/8") 0.468" 0.078"
22617-7 - - - -07 (7/16") 0.530" 0.082"
22617-8 22033-8 22068-8 22012-8 -08 (1/2") 0.755" 0.097"
22617-10 22033-10 22068-10 - -10 (5/8") 0.755" 0.097"
22617-12 22033-12 22068-12 22012-12 -12 (3/4") 0.924" 0.116"
22617-14 - - 22012-14 -14 (7/8") 1.048" 0.116"
22617-16 22033-16 22068-16 22012-16 -16 (1") 1.171" 0.116"
22617-20 - 22068-20 22012-20 -20 (1-1/4") 1.475" 0.118"
22617-24 - 22068-24 - -24 (1-1/2") 1.720" 0.118"
22617-32 - - - -32 (2") 2.337" 0.118"

* Viton is a trademark of The Chemours Company FC, LLC
