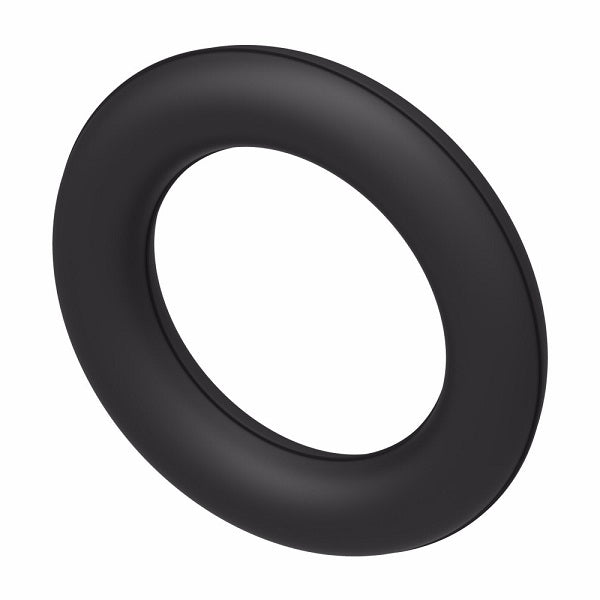

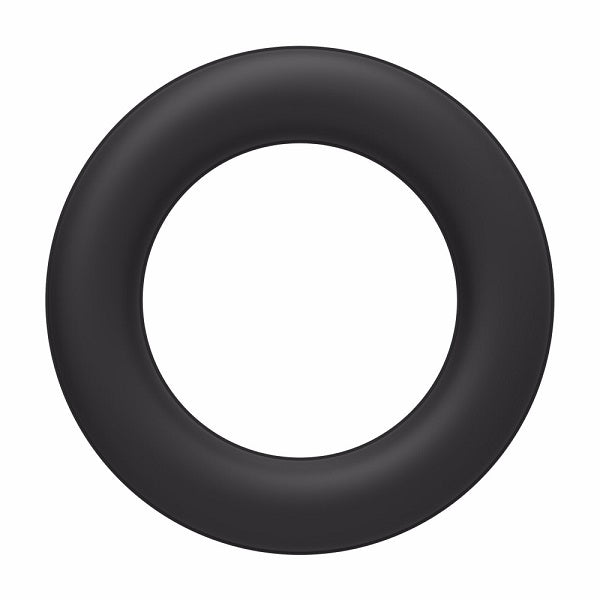

22068-8 Aeroquip by Danfoss | -08 Viton O-Ring for SAE O-Ring Boss Fittings (ORB) | 1/2" Tube Size

Name: 22068-8 Aeroquip by Danfoss | -08 Viton O-Ring for SAE O-Ring Boss Fittings (ORB) | 1/2" Tube Size
Brand: Danfoss/Eaton
SKU: 22068-8 Danfoss
Price: 4.24 USD
Availability: InStock

$4.24 - $4.24

$4.24

$4.24 - $4.24

$4.24

Aeroquip® by Danfoss
O-Ring for SAE O-Ring Boss Fittings (ORB)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 22068-8 Danfoss
Shape (Orientation):	No Orientation
Seal Material(s):	Viton/FKM

Technical Info:
Crimp Fitting Socket Data.PDF

O-Ring Base Part Number	Material	Operating Temperature range
22617- (Standard)	Buna-N Nitrile rubber 90 Durometer	-30°F to +250°F (-34°C to +121°C)
22033-	EPDM Ethylene propylene diene monomer	-65°F to +212°F (-55°C to +100°C)
22068-	Viton* Fluoroelastomer 90 Durometer	-15°F to +400°F (-25°C to +205°C)
22012-	Buna-N Low temperature nitrile rubber 90 Durometer	-65°F to +225°F (-55°C to +107°C)


Buna-N (Nitrile) Part Number	EPDM Part Number	Viton Part Number	Low Temperature Buna-N (Nitrile) Part Number	Tube Size	A	E
22617-1	-	-	-	-01 (1/16")	0.185"	0.056"
22617-2	-	-	-	-02 (1/8")	0.239"	0.064"
22617-3	-	-	22012-3	-03 (3/16")	0.301"	0.064"
22617-4	22033-4	22068-4	22012-4	-04 (1/4")	0.351"	0.072"
22617-5	-	22068-5	22012-5	-05 (5/16")	0.414"	0.072"
22617-6	22033-6	22068-6	22012-6	-06 (3/8")	0.468"	0.078"
22617-7	-	-	-	-07 (7/16")	0.530"	0.082"
22617-8	22033-8	22068-8	22012-8	-08 (1/2")	0.755"	0.097"
22617-10	22033-10	22068-10	-	-10 (5/8")	0.755"	0.097"
22617-12	22033-12	22068-12	22012-12	-12 (3/4")	0.924"	0.116"
22617-14	-	-	22012-14	-14 (7/8")	1.048"	0.116"
22617-16	22033-16	22068-16	22012-16	-16 (1")	1.171"	0.116"
22617-20	-	22068-20	22012-20	-20 (1-1/4")	1.475"	0.118"
22617-24	-	22068-24	-	-24 (1-1/2")	1.720"	0.118"
22617-32	-	-	-	-32 (2")	2.337"	0.118"

* Viton is a trademark of The Chemours Company FC, LLC

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
