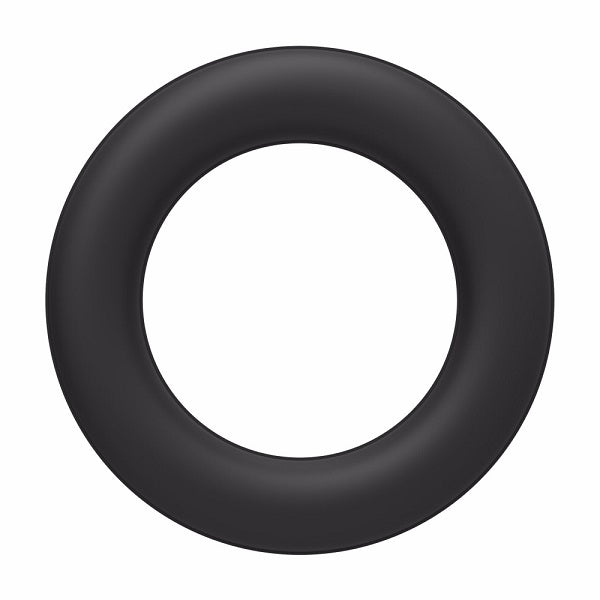

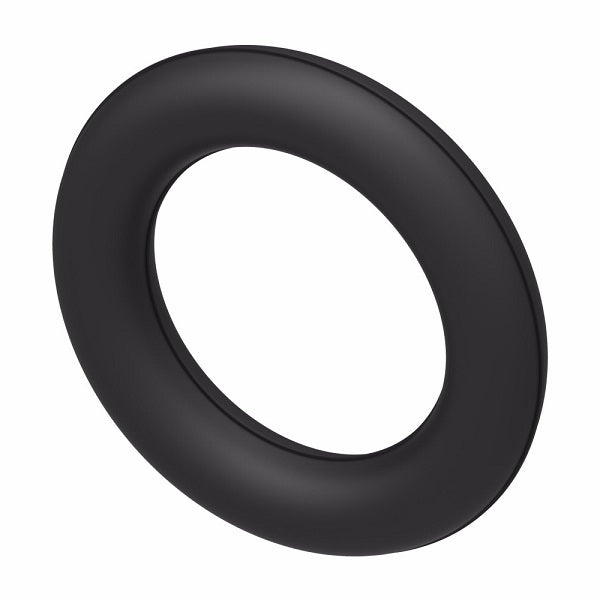

22012-8 Aeroquip by Danfoss | -08 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1/2" Tube Size

Name: 22012-8 Aeroquip by Danfoss | -08 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Boss Fittings (ORB) | 1/2" Tube Size
Brand: Danfoss/Eaton
SKU: 22012-8 Danfoss
Price: 1.21 USD
Availability: InStock

$1.21 - $1.21

$1.21

$1.21 - $1.21

$1.21

Aeroquip® by Danfoss
O-Ring for SAE O-Ring Boss Fittings (ORB)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 22012-8 Danfoss
Shape (Orientation):	No Orientation
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Info:
Crimp Fitting Socket Data.PDF

O-Ring Base Part Number	Material	Operating Temperature range
22617- (Standard)	Buna-N Nitrile rubber 90 Durometer	-30°F to +250°F (-34°C to +121°C)
22033-	EPDM Ethylene propylene diene monomer	-65°F to +212°F (-55°C to +100°C)
22068-	Viton* Fluoroelastomer 90 Durometer	-15°F to +400°F (-25°C to +205°C)
22012-	Buna-N Low temperature nitrile rubber 90 Durometer	-65°F to +225°F (-55°C to +107°C)


Buna-N (Nitrile) Part Number	EPDM Part Number	Viton Part Number	Low Temperature Buna-N (Nitrile) Part Number	Tube Size	A	E
22617-1	-	-	-	-01 (1/16")	0.185"	0.056"
22617-2	-	-	-	-02 (1/8")	0.239"	0.064"
22617-3	-	-	22012-3	-03 (3/16")	0.301"	0.064"
22617-4	22033-4	22068-4	22012-4	-04 (1/4")	0.351"	0.072"
22617-5	-	22068-5	22012-5	-05 (5/16")	0.414"	0.072"
22617-6	22033-6	22068-6	22012-6	-06 (3/8")	0.468"	0.078"
22617-7	-	-	-	-07 (7/16")	0.530"	0.082"
22617-8	22033-8	22068-8	22012-8	-08 (1/2")	0.755"	0.097"
22617-10	22033-10	22068-10	-	-10 (5/8")	0.755"	0.097"
22617-12	22033-12	22068-12	22012-12	-12 (3/4")	0.924"	0.116"
22617-14	-	-	22012-14	-14 (7/8")	1.048"	0.116"
22617-16	22033-16	22068-16	22012-16	-16 (1")	1.171"	0.116"
22617-20	-	22068-20	22012-20	-20 (1-1/4")	1.475"	0.118"
22617-24	-	22068-24	-	-24 (1-1/2")	1.720"	0.118"
22617-32	-	-	-	-32 (2")	2.337"	0.118"

* Viton is a trademark of The Chemours Company FC, LLC
