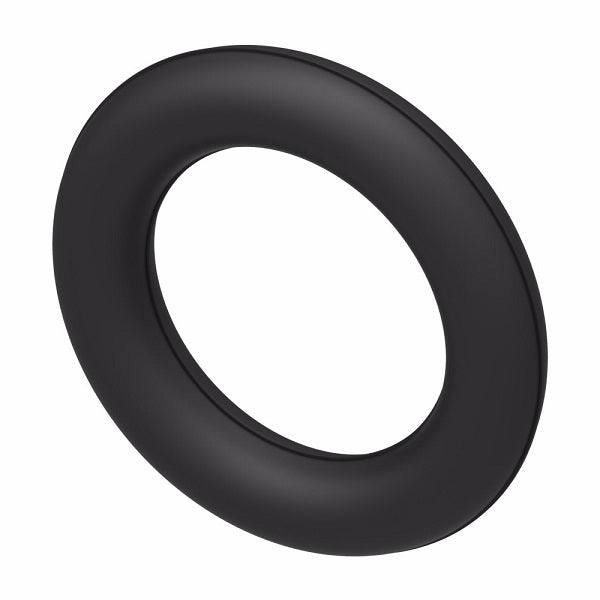

22046-16 Aeroquip by Danfoss | -10 Viton O-Ring for SAE O-Ring Face Seal Fittings (ORS)
22046-16 Aeroquip by Danfoss | -10 Viton O-Ring for SAE O-Ring Face Seal Fittings (ORS)
22046-16 Aeroquip by Danfoss | -10 Viton O-Ring for SAE O-Ring Face Seal Fittings (ORS)

22046-16 Aeroquip by Danfoss | -10 Viton O-Ring for SAE O-Ring Face Seal Fittings (ORS)

$2.43 - $2.43
$2.43
$2.43 - $2.43
$2.43

Aeroquip® by Danfoss
O-Ring for SAE O-Ring Face Seal Fittings (ORS)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 22046-16 Danfoss
Shape (Orientation): No Orientation
Seal Material(s): Viton/FKM
Technical Info:
O-Ring Base
Part Number		 Material Operating Temperature range
FF9446-
(Standard)		 Buna-N
Nitrile rubber
90 Durometer		 -40°F to +250°F
(-40°C to +121°C)
22033- EPDM
Ethylene propylene
diene monomer		 -65°F to +212°F
(-55°C to +100°C)
22046- Viton* Fluoroelastomer
90 Durometer		 -15°F to +400°F
(-25°C to +205°C)
FF9855- Buna-N
Low temperature nitrile rubber 90 Durometer		 -65°F to +225°F
(-55°C to +107°C)
22546- Neoprene
90 Durometer		 -65°F to +300°F
(-55°C to +150°C)
Buna-N (Nitrile)
Part Number		 Viton
Part Number		 Low Temperature
Buna-N (Nitrile)
Part Number		 Neoprene
Part Number		 Tube Size A E
FF9446-11
Weatherhead Part #: 4629X4		 22046-11 - - -04 0.301" 0.07"
FF9446-12
Weatherhead Part #: 4629X6		 22046-12 FF9855-12 22546-12 -06 0.364" 0.07"
FF9446-14
Weatherhead Part #: 4629X8		 22046-14 FF9855-14 22546-14 -08 0.489" 0.07"
FF9446-16
Weatherhead Part #: 4629X10		 22046-16 FF9855-16 22546-16 -10 0.614" 0.07"
FF9446-18
Weatherhead Part #: 4629X12		 22046-18 FF9855-18 22546-18 -12 0.739" 0.07"
FF9446-19 - - - - 0.8125" 0.0625"
FF9446-21
Weatherhead Part #: 4629X16		 22046-21 - 22546-21 -16 0.926" 0.07"
FF9446-25
Weatherhead Part #: 4629X20		 22046-25 - 22546-25 -20 1.176" 0.07"
FF9446-29
Weatherhead Part #: 4629X24		 22046-29 - - -24 1.489" 0.07"

* Viton is a trademark of The Chemours Company FC, LLC
