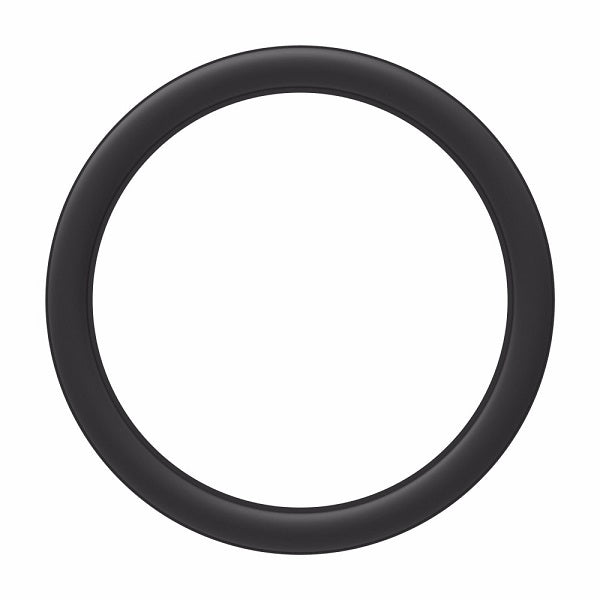

FF9855-18 Aeroquip by Danfoss | -12 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Face Seal Fittings (ORS)

Name: FF9855-18 Aeroquip by Danfoss | -12 Low Temperature Buna-N (Nitrile) O-Ring for SAE O-Ring Face Seal Fittings (ORS)
Brand: Danfoss/Eaton
SKU: FF9855-18 Danfoss
Price: 0.7 USD
Availability: InStock

$0.70 - $0.70

$0.70

$0.70 - $0.70

$0.70

Aeroquip® by Danfoss
O-Ring for SAE O-Ring Face Seal Fittings (ORS)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF9855-18 Danfoss
Shape (Orientation):	No Orientation
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Info:
Crimp Fitting Socket Data.PDF

O-Ring Base Part Number	Material	Operating Temperature range
FF9446- (Standard)	Buna-N Nitrile rubber 90 Durometer	-40°F to +250°F (-40°C to +121°C)
22033-	EPDM Ethylene propylene diene monomer	-65°F to +212°F (-55°C to +100°C)
22046-	Viton* Fluoroelastomer 90 Durometer	-15°F to +400°F (-25°C to +205°C)
FF9855-	Buna-N Low temperature nitrile rubber 90 Durometer	-65°F to +225°F (-55°C to +107°C)
22546-	Neoprene 90 Durometer	-65°F to +300°F (-55°C to +150°C)


Buna-N (Nitrile) Part Number	Viton Part Number	Low Temperature Buna-N (Nitrile) Part Number	Neoprene Part Number	Tube Size	A	E
FF9446-11 Weatherhead Part #: 4629X4	22046-11	-	-	-04	0.301"	0.07"
FF9446-12 Weatherhead Part #: 4629X6	22046-12	FF9855-12	22546-12	-06	0.364"	0.07"
FF9446-14 Weatherhead Part #: 4629X8	22046-14	FF9855-14	22546-14	-08	0.489"	0.07"
FF9446-16 Weatherhead Part #: 4629X10	22046-16	FF9855-16	22546-16	-10	0.614"	0.07"
FF9446-18 Weatherhead Part #: 4629X12	22046-18	FF9855-18	22546-18	-12	0.739"	0.07"
FF9446-19	-	-	-	-	0.8125"	0.0625"
FF9446-21 Weatherhead Part #: 4629X16	22046-21	-	22546-21	-16	0.926"	0.07"
FF9446-25 Weatherhead Part #: 4629X20	22046-25	-	22546-25	-20	1.176"	0.07"
FF9446-29 Weatherhead Part #: 4629X24	22046-29	-	-	-24	1.489"	0.07"

* Viton is a trademark of The Chemours Company FC, LLC
