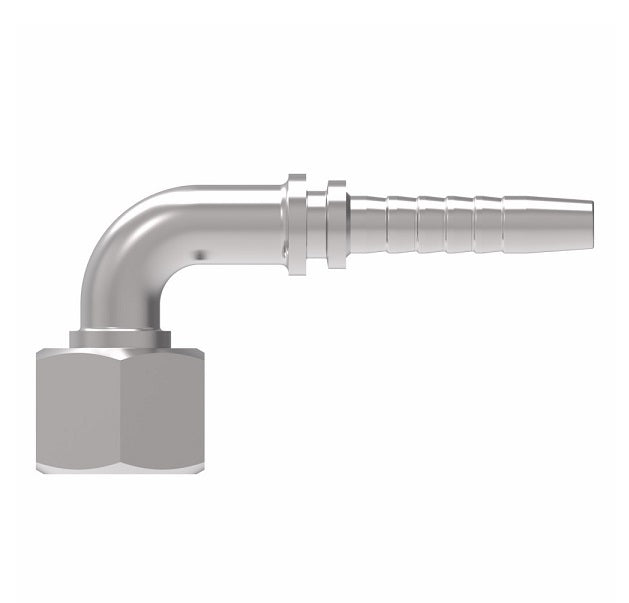

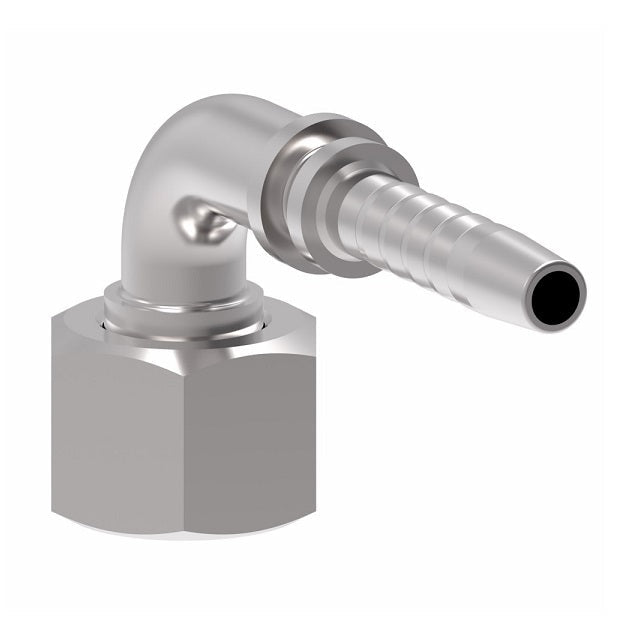

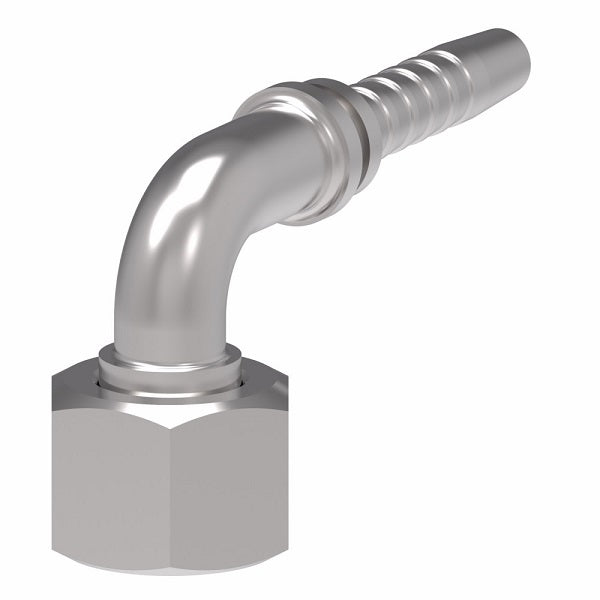

Name: 24291-10-08H70TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (70mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 24291-10-08H70TZF Danfoss
Price: 23.09 USD
Availability: InStock

$23.09 - $23.09

$23.09

$23.09 - $23.09

$23.09

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 90° Elbow

Quantity

Specifications for Variant SKU: 24291-10-08H70TZF Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	H	Hex 1
24291-04-04ZF	-04	9/16"x18	6	-04	2.28"	1.18"	0.16"	1.61"	17mm
24291-06-06ZF	-06	11/16"x16	10	-06	2.57"	1.39"	0.28"	0.17"	22mm
24291-08-08ZF	-08	13/16"x16	12	-08	2.85"	1.61"	0.39"	2.26"	27mm
24291-10-10ZF	-10	1"x14	16	-10	3.54"	2.20"	0.47"	2.60"	30mm
24291-12-12ZF	-12	1.3/16"x12	20	-12	4.09"	2.58"	0.59"	3.03"	36mm
24291-16-16TZF (with Captive Nut)	-16	1.7/16"x12	25	-16	4.88"	3.03"	0.83"	2.66"	41mm

24291-04-04H21ZF (21mm Drop)	-04	9/16"-18	6	-04	2.34"	1.24"	0.16"	0.83"	17mm
24291-06-04H23TZF (23mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.34"	1.24"	0.15"	0.91"	22mm
24291-06-04H38TZF (38mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.28"	1.18"	0.15"	1.50"	22mm
24291-06-04H54TZF (54mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.28"	1.18"	0.15"	2.13"	22mm
24291-06-06H23ZF (23mm Drop)	-06	11/16"-16	10	-06	2.54"	1.36"	0.28"	0.91"	22mm
24291-06-06H38ZF (38mm Drop)	-06	11/16"-16	10	-06	2.60"	1.42"	0.27"	1.50"	22mm
24291-06-06H54ZF (54mm Drop)	-06	11/16"-16	10	-06	2.57"	1.39"	0.28"	2.13"	22mm
24291-06-08H23ZF (23mm Drop)	-06	11/16"-16	12	-08	2.87"	1.63"	0.39"	0.91"	22mm
24291-08-06H29TZF (29mm Drop, with Captive Nut)	-08	13/16"-16	10	-06	2.60"	1.42"	0.28"	1.14"	24mm
24291-08-08H29ZF (29mm Drop)	-08	13/16"-16	12	-08	2.87"	1.63"	0.35"	1.14"	24mm
24291-08-08H41ZF (41mm Drop)	-08	13/16"-16	12	-08	3.11"	1.87"	0.39"	1.61"	24mm
24291-08-08H64ZF (64mm Drop)	-08	13/16"-16	12	-08	2.85"	1.61"	0.39"	2.52"	24mm
24291-08-10H29ZF (29mm Drop)	-08	13/16"-16	16	-10	3.41"	2.07"	0.47"	1.14"	24mm
24291-10-08H32TZF (32mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.91"	1.67"	0.39"	1.26"	30mm
24291-10-08H47TZF (47mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.85"	1.61"	0.39"	1.85"	30mm
24291-10-08H70TZF (70mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.85"	1.61"	0.39"	2.76"	30mm
24291-10-10H32ZF (32mm Drop)	-10	1"-14	16	-10	3.29"	1.95"	0.47"	1.26"	30mm
24291-10-10H47ZF (47mm Drop)	-10	1"-14	16	-10	3.54"	2.20"	0.47"	1.85"	30mm
24291-10-10H70ZF (70mm Drop)	-10	1"-14	16	-10	3.54"	2.20"	0.47"	2.76"	30mm
24291-10-12H32ZF (32mm Drop)	-10	1"-14	20	-12	3.57"	2.06"	0.59"	1.26"	30mm
24291-12-10H48TZF (48mm Drop, with Captive Nut)	-12	1-3/16"-12	16	-10	3.54"	2.20"	0.47"	1.89"	36mm
24291-12-10H96TZF (96mm Drop, with Captive Nut)	-12	1-3/16"-12	16	-10	3.54"	2.20"	0.47"	3.78"	36mm
24291-12-12H48ZF (48mm Drop)	-12	1-3/16"-12	20	-12	4.17"	2.66"	0.59"	1.89"	36mm
24291-12-12H58ZF (58mm Drop)	-12	1-3/16"-12	20	-12	4.17"	2.66"	0.59"	2.28"	36mm
24291-12-12H96ZF (96mm Drop)	-12	1-3/16"-12	20	-12	4.09"	2.58"	0.59"	3.78"	36mm
24291-16-12H56TZF (56mm Drop, with Captive Nut)	-16	1-7/16	20	-12	4.09"	2.58"	0.59"	2.20"	41mm
24291-16-16H56TZF (56mm Drop, with Captive Nut)	-16	1-7/16"-12	25	-16	4.72"	2.87"	0.82"	2.20"	41mm
24291-16-16H114TZF (114mm Drop, with Captive Nut)	-16	1-7/16"-12	25	-16	4.88"	3.03"	0.79"	4.49"	41mm
