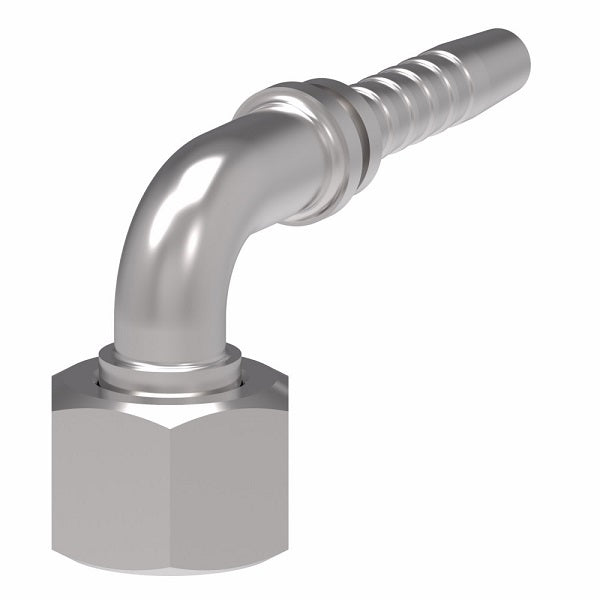

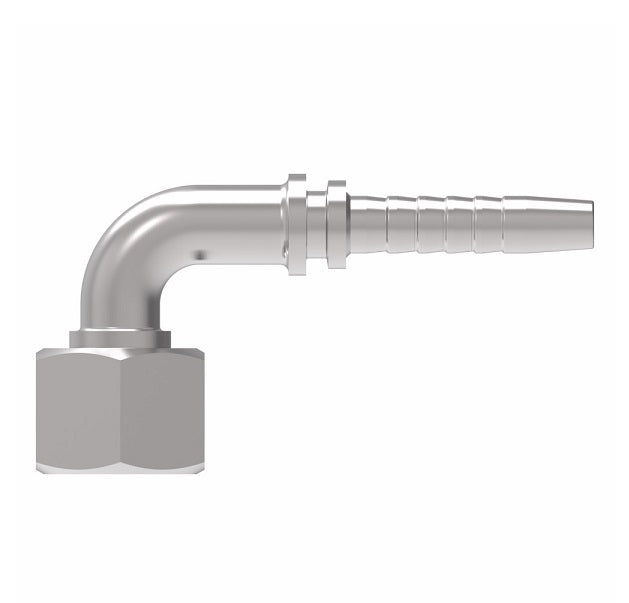

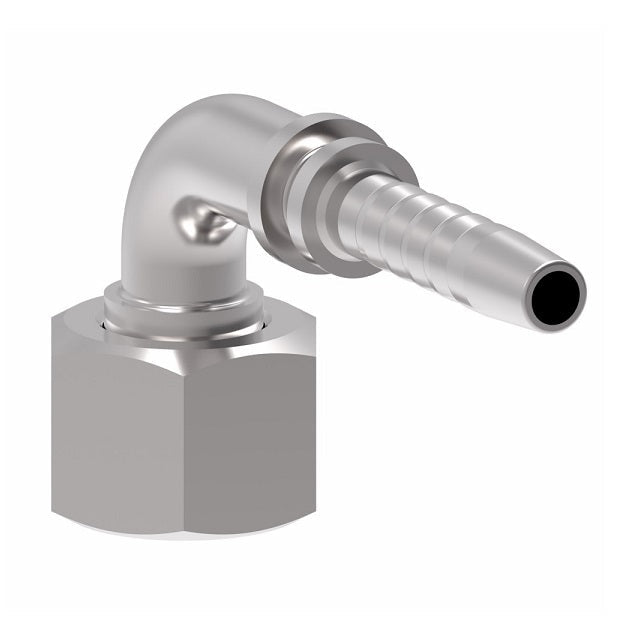

24291-16-16TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
24291-16-16TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
24291-16-16TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
24291-16-16TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

24291-16-16TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

$70.36 - $70.36
$70.36
$70.36 - $70.36
$70.36

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 90° Elbow
Specifications for Variant SKU: 24291-16-16TZF Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
24291-04-04ZF -04 9/16"x18 6 -04 2.28" 1.18" 0.16" 1.61" 17mm
24291-06-06ZF -06 11/16"x16 10 -06 2.57" 1.39" 0.28" 0.17" 22mm
24291-08-08ZF -08 13/16"x16 12 -08 2.85" 1.61" 0.39" 2.26" 27mm
24291-10-10ZF -10 1"x14 16 -10 3.54" 2.20" 0.47" 2.60" 30mm
24291-12-12ZF -12 1.3/16"x12 20 -12 4.09" 2.58" 0.59" 3.03" 36mm
24291-16-16TZF
(with Captive Nut)		 -16 1.7/16"x12 25 -16 4.88" 3.03" 0.83" 2.66" 41mm
24291-04-04H21ZF
(21mm Drop)		 -04 9/16"-18 6 -04 2.34" 1.24" 0.16" 0.83" 17mm
24291-06-04H23TZF
(23mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.34" 1.24" 0.15" 0.91" 22mm
24291-06-04H38TZF
(38mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.28" 1.18" 0.15" 1.50" 22mm
24291-06-04H54TZF
(54mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.28" 1.18" 0.15" 2.13" 22mm
24291-06-06H23ZF
(23mm Drop)		 -06 11/16"-16 10 -06 2.54" 1.36" 0.28" 0.91" 22mm
24291-06-06H38ZF
(38mm Drop)		 -06 11/16"-16 10 -06 2.60" 1.42" 0.27" 1.50" 22mm
24291-06-06H54ZF
(54mm Drop)		 -06 11/16"-16 10 -06 2.57" 1.39" 0.28" 2.13" 22mm
24291-06-08H23ZF
(23mm Drop)		 -06 11/16"-16 12 -08 2.87" 1.63" 0.39" 0.91" 22mm
24291-08-06H29TZF
(29mm Drop, with Captive Nut)		 -08 13/16"-16 10 -06 2.60" 1.42" 0.28" 1.14" 24mm
24291-08-08H29ZF
(29mm Drop)		 -08 13/16"-16 12 -08 2.87" 1.63" 0.35" 1.14" 24mm
24291-08-08H41ZF
(41mm Drop)		 -08 13/16"-16 12 -08 3.11" 1.87" 0.39" 1.61" 24mm
24291-08-08H64ZF
(64mm Drop)		 -08 13/16"-16 12 -08 2.85" 1.61" 0.39" 2.52" 24mm
24291-08-10H29ZF
(29mm Drop)		 -08 13/16"-16 16 -10 3.41" 2.07" 0.47" 1.14" 24mm
24291-10-08H32TZF
(32mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.91" 1.67" 0.39" 1.26" 30mm
24291-10-08H47TZF
(47mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.85" 1.61" 0.39" 1.85" 30mm
24291-10-08H70TZF
(70mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.85" 1.61" 0.39" 2.76" 30mm
24291-10-10H32ZF
(32mm Drop)		 -10 1"-14 16 -10 3.29" 1.95" 0.47" 1.26" 30mm
24291-10-10H47ZF
(47mm Drop)		 -10 1"-14 16 -10 3.54" 2.20" 0.47" 1.85" 30mm
24291-10-10H70ZF
(70mm Drop)		 -10 1"-14 16 -10 3.54" 2.20" 0.47" 2.76" 30mm
24291-10-12H32ZF
(32mm Drop)		 -10 1"-14 20 -12 3.57" 2.06" 0.59" 1.26" 30mm
24291-12-10H48TZF
(48mm Drop, with Captive Nut)		 -12 1-3/16"-12 16 -10 3.54" 2.20" 0.47" 1.89" 36mm
24291-12-10H96TZF
(96mm Drop, with Captive Nut)		 -12 1-3/16"-12 16 -10 3.54" 2.20" 0.47" 3.78" 36mm
24291-12-12H48ZF
(48mm Drop)		 -12 1-3/16"-12 20 -12 4.17" 2.66" 0.59" 1.89" 36mm
24291-12-12H58ZF
(58mm Drop)		 -12 1-3/16"-12 20 -12 4.17" 2.66" 0.59" 2.28" 36mm
24291-12-12H96ZF
(96mm Drop)		 -12 1-3/16"-12 20 -12 4.09" 2.58" 0.59" 3.78" 36mm
24291-16-12H56TZF
(56mm Drop, with Captive Nut)		 -16 1-7/16 20 -12 4.09" 2.58" 0.59" 2.20" 41mm
24291-16-16H56TZF
(56mm Drop, with Captive Nut)		 -16 1-7/16"-12 25 -16 4.72" 2.87" 0.82" 2.20" 41mm
24291-16-16H114TZF
(114mm Drop, with Captive Nut)		 -16 1-7/16"-12 25 -16 4.88" 3.03" 0.79" 4.49" 41mm
