24291-16-16H114TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (114mm Drop, with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

24291-16-16H114TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (114mm Drop, with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

Name: 24291-16-16H114TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (114mm Drop, with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 24291-16-16H114TZF Danfoss
Price: 88.64 USD
Availability: InStock

$88.64 - $88.64

$88.64

$88.64 - $88.64

$88.64

Winner by Danfoss

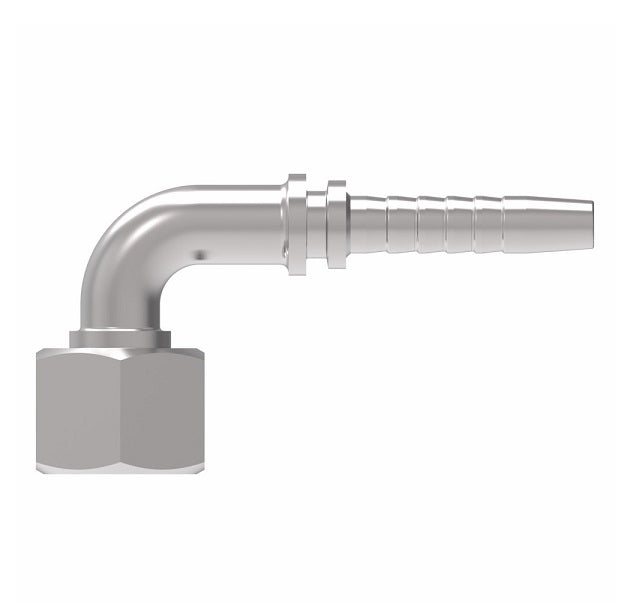

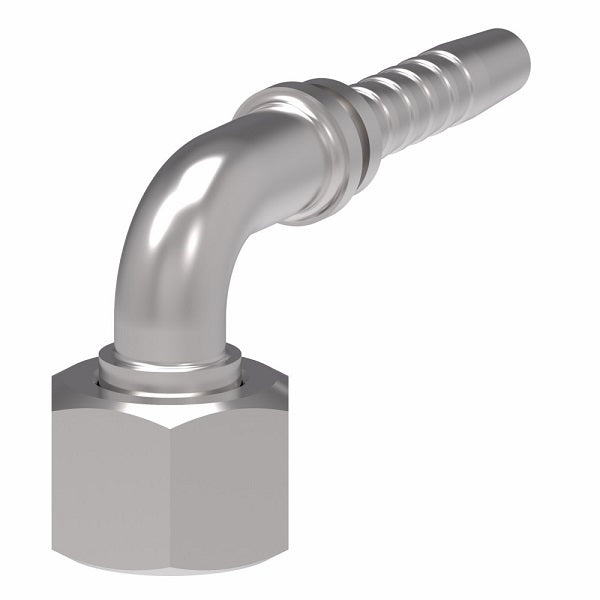

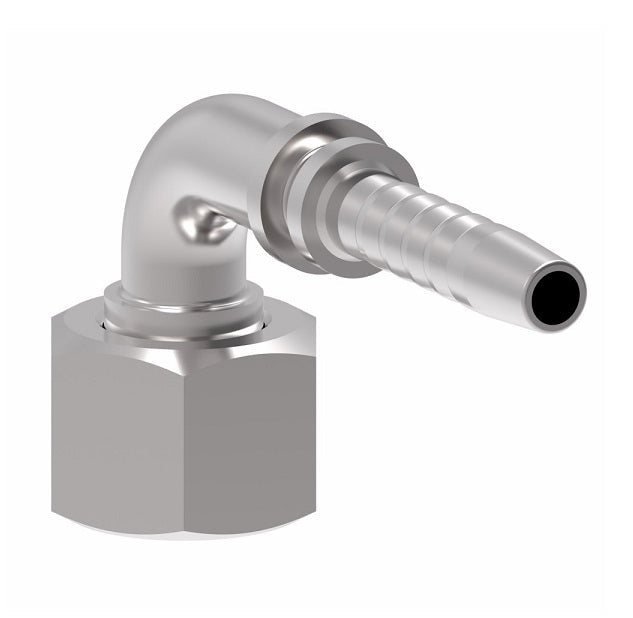

Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 90° Elbow

Quantity

Specifications for Variant SKU: 24291-16-16H114TZF Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC115 Series \| EC215 Series \| EC110 Series \| EC210 Series \| EC118 Series

Features:
Non-skive, two-piece crimp Fitting. Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating. Carbon steel material.


Part Number	Terminal End Dash Size	Thread	DN	Hose Size	A	D Cut Off Factor	E&Oslash	H	Hex 1
24291-04-04ZF	-04	9/16"x18	6	-04	2.28"	1.18"	0.16"	1.61"	17mm
24291-06-06ZF	-06	11/16"x16	10	-06	2.57"	1.39"	0.28"	0.17"	22mm
24291-08-08ZF	-08	13/16"x16	12	-08	2.85"	1.61"	0.39"	2.26"	27mm
24291-10-10ZF	-10	1"x14	16	-10	3.54"	2.20"	0.47"	2.60"	30mm
24291-12-12ZF	-12	1.3/16"x12	20	-12	4.09"	2.58"	0.59"	3.03"	36mm
24291-16-16TZF (with Captive Nut)	-16	1.7/16"x12	25	-16	4.88"	3.03"	0.83"	2.66"	41mm

24291-04-04H21ZF (21mm Drop)	-04	9/16"-18	6	-04	2.34"	1.24"	0.16"	0.83"	17mm
24291-06-04H23TZF (23mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.34"	1.24"	0.15"	0.91"	22mm
24291-06-04H38TZF (38mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.28"	1.18"	0.15"	1.50"	22mm
24291-06-04H54TZF (54mm Drop, with Captive Nut)	-06	11/16"-16	6	-04	2.28"	1.18"	0.15"	2.13"	22mm
24291-06-06H23ZF (23mm Drop)	-06	11/16"-16	10	-06	2.54"	1.36"	0.28"	0.91"	22mm
24291-06-06H38ZF (38mm Drop)	-06	11/16"-16	10	-06	2.60"	1.42"	0.27"	1.50"	22mm
24291-06-06H54ZF (54mm Drop)	-06	11/16"-16	10	-06	2.57"	1.39"	0.28"	2.13"	22mm
24291-06-08H23ZF (23mm Drop)	-06	11/16"-16	12	-08	2.87"	1.63"	0.39"	0.91"	22mm
24291-08-06H29TZF (29mm Drop, with Captive Nut)	-08	13/16"-16	10	-06	2.60"	1.42"	0.28"	1.14"	24mm
24291-08-08H29ZF (29mm Drop)	-08	13/16"-16	12	-08	2.87"	1.63"	0.35"	1.14"	24mm
24291-08-08H41ZF (41mm Drop)	-08	13/16"-16	12	-08	3.11"	1.87"	0.39"	1.61"	24mm
24291-08-08H64ZF (64mm Drop)	-08	13/16"-16	12	-08	2.85"	1.61"	0.39"	2.52"	24mm
24291-08-10H29ZF (29mm Drop)	-08	13/16"-16	16	-10	3.41"	2.07"	0.47"	1.14"	24mm
24291-10-08H32TZF (32mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.91"	1.67"	0.39"	1.26"	30mm
24291-10-08H47TZF (47mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.85"	1.61"	0.39"	1.85"	30mm
24291-10-08H70TZF (70mm Drop, with Captive Nut)	-10	1"-14	12	-08	2.85"	1.61"	0.39"	2.76"	30mm
24291-10-10H32ZF (32mm Drop)	-10	1"-14	16	-10	3.29"	1.95"	0.47"	1.26"	30mm
24291-10-10H47ZF (47mm Drop)	-10	1"-14	16	-10	3.54"	2.20"	0.47"	1.85"	30mm
24291-10-10H70ZF (70mm Drop)	-10	1"-14	16	-10	3.54"	2.20"	0.47"	2.76"	30mm
24291-10-12H32ZF (32mm Drop)	-10	1"-14	20	-12	3.57"	2.06"	0.59"	1.26"	30mm
24291-12-10H48TZF (48mm Drop, with Captive Nut)	-12	1-3/16"-12	16	-10	3.54"	2.20"	0.47"	1.89"	36mm
24291-12-10H96TZF (96mm Drop, with Captive Nut)	-12	1-3/16"-12	16	-10	3.54"	2.20"	0.47"	3.78"	36mm
24291-12-12H48ZF (48mm Drop)	-12	1-3/16"-12	20	-12	4.17"	2.66"	0.59"	1.89"	36mm
24291-12-12H58ZF (58mm Drop)	-12	1-3/16"-12	20	-12	4.17"	2.66"	0.59"	2.28"	36mm
24291-12-12H96ZF (96mm Drop)	-12	1-3/16"-12	20	-12	4.09"	2.58"	0.59"	3.78"	36mm
24291-16-12H56TZF (56mm Drop, with Captive Nut)	-16	1-7/16	20	-12	4.09"	2.58"	0.59"	2.20"	41mm
24291-16-16H56TZF (56mm Drop, with Captive Nut)	-16	1-7/16"-12	25	-16	4.72"	2.87"	0.82"	2.20"	41mm
24291-16-16H114TZF (114mm Drop, with Captive Nut)	-16	1-7/16"-12	25	-16	4.88"	3.03"	0.79"	4.49"	41mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
