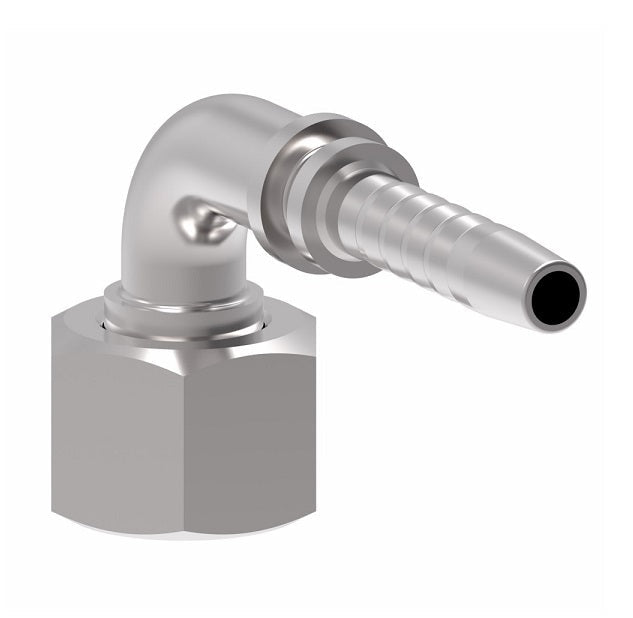

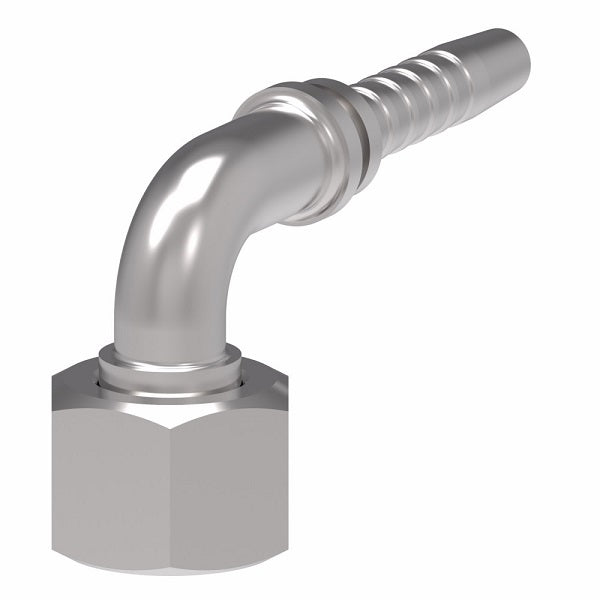

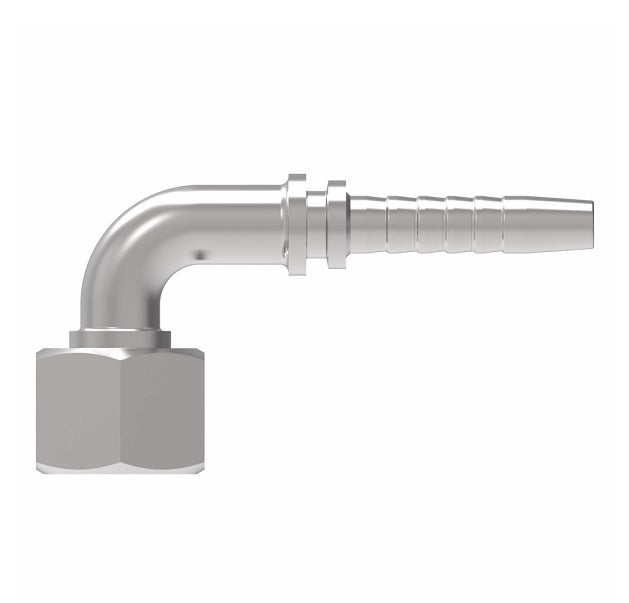

24291-10-08H47TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (47mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24291-10-08H47TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (47mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24291-10-08H47TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (47mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24291-10-08H47TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (47mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

24291-10-08H47TZF Winner by Danfoss | Female ORS Swivel 90° Elbow 2-Piece Hose Crimp Fitting (47mm Drop, with Captive Nut) | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$21.45 - $21.45
$21.45
$21.45 - $21.45
$21.45

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - 90° Elbow
Specifications for Variant SKU: 24291-10-08H47TZF Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash H Hex 1
24291-04-04ZF -04 9/16"x18 6 -04 2.28" 1.18" 0.16" 1.61" 17mm
24291-06-06ZF -06 11/16"x16 10 -06 2.57" 1.39" 0.28" 0.17" 22mm
24291-08-08ZF -08 13/16"x16 12 -08 2.85" 1.61" 0.39" 2.26" 27mm
24291-10-10ZF -10 1"x14 16 -10 3.54" 2.20" 0.47" 2.60" 30mm
24291-12-12ZF -12 1.3/16"x12 20 -12 4.09" 2.58" 0.59" 3.03" 36mm
24291-16-16TZF
(with Captive Nut)		 -16 1.7/16"x12 25 -16 4.88" 3.03" 0.83" 2.66" 41mm
24291-04-04H21ZF
(21mm Drop)		 -04 9/16"-18 6 -04 2.34" 1.24" 0.16" 0.83" 17mm
24291-06-04H23TZF
(23mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.34" 1.24" 0.15" 0.91" 22mm
24291-06-04H38TZF
(38mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.28" 1.18" 0.15" 1.50" 22mm
24291-06-04H54TZF
(54mm Drop, with Captive Nut)		 -06 11/16"-16 6 -04 2.28" 1.18" 0.15" 2.13" 22mm
24291-06-06H23ZF
(23mm Drop)		 -06 11/16"-16 10 -06 2.54" 1.36" 0.28" 0.91" 22mm
24291-06-06H38ZF
(38mm Drop)		 -06 11/16"-16 10 -06 2.60" 1.42" 0.27" 1.50" 22mm
24291-06-06H54ZF
(54mm Drop)		 -06 11/16"-16 10 -06 2.57" 1.39" 0.28" 2.13" 22mm
24291-06-08H23ZF
(23mm Drop)		 -06 11/16"-16 12 -08 2.87" 1.63" 0.39" 0.91" 22mm
24291-08-06H29TZF
(29mm Drop, with Captive Nut)		 -08 13/16"-16 10 -06 2.60" 1.42" 0.28" 1.14" 24mm
24291-08-08H29ZF
(29mm Drop)		 -08 13/16"-16 12 -08 2.87" 1.63" 0.35" 1.14" 24mm
24291-08-08H41ZF
(41mm Drop)		 -08 13/16"-16 12 -08 3.11" 1.87" 0.39" 1.61" 24mm
24291-08-08H64ZF
(64mm Drop)		 -08 13/16"-16 12 -08 2.85" 1.61" 0.39" 2.52" 24mm
24291-08-10H29ZF
(29mm Drop)		 -08 13/16"-16 16 -10 3.41" 2.07" 0.47" 1.14" 24mm
24291-10-08H32TZF
(32mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.91" 1.67" 0.39" 1.26" 30mm
24291-10-08H47TZF
(47mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.85" 1.61" 0.39" 1.85" 30mm
24291-10-08H70TZF
(70mm Drop, with Captive Nut)		 -10 1"-14 12 -08 2.85" 1.61" 0.39" 2.76" 30mm
24291-10-10H32ZF
(32mm Drop)		 -10 1"-14 16 -10 3.29" 1.95" 0.47" 1.26" 30mm
24291-10-10H47ZF
(47mm Drop)		 -10 1"-14 16 -10 3.54" 2.20" 0.47" 1.85" 30mm
24291-10-10H70ZF
(70mm Drop)		 -10 1"-14 16 -10 3.54" 2.20" 0.47" 2.76" 30mm
24291-10-12H32ZF
(32mm Drop)		 -10 1"-14 20 -12 3.57" 2.06" 0.59" 1.26" 30mm
24291-12-10H48TZF
(48mm Drop, with Captive Nut)		 -12 1-3/16"-12 16 -10 3.54" 2.20" 0.47" 1.89" 36mm
24291-12-10H96TZF
(96mm Drop, with Captive Nut)		 -12 1-3/16"-12 16 -10 3.54" 2.20" 0.47" 3.78" 36mm
24291-12-12H48ZF
(48mm Drop)		 -12 1-3/16"-12 20 -12 4.17" 2.66" 0.59" 1.89" 36mm
24291-12-12H58ZF
(58mm Drop)		 -12 1-3/16"-12 20 -12 4.17" 2.66" 0.59" 2.28" 36mm
24291-12-12H96ZF
(96mm Drop)		 -12 1-3/16"-12 20 -12 4.09" 2.58" 0.59" 3.78" 36mm
24291-16-12H56TZF
(56mm Drop, with Captive Nut)		 -16 1-7/16 20 -12 4.09" 2.58" 0.59" 2.20" 41mm
24291-16-16H56TZF
(56mm Drop, with Captive Nut)		 -16 1-7/16"-12 25 -16 4.72" 2.87" 0.82" 2.20" 41mm
24291-16-16H114TZF
(114mm Drop, with Captive Nut)		 -16 1-7/16"-12 25 -16 4.88" 3.03" 0.79" 4.49" 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
