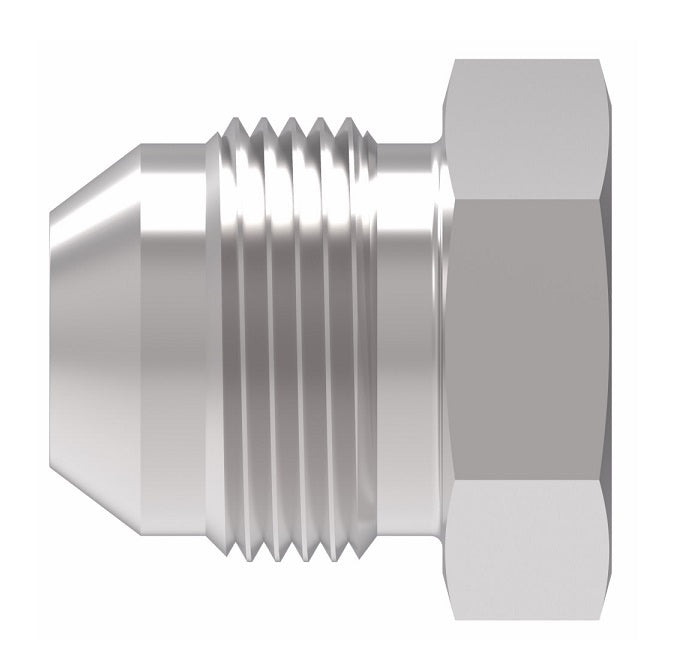

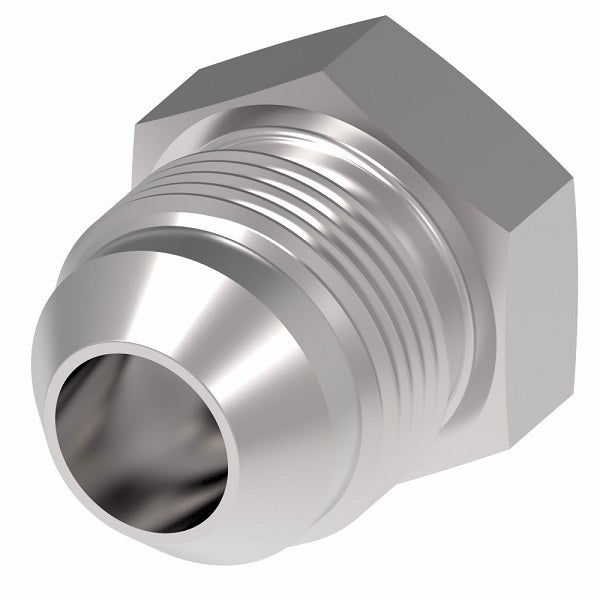

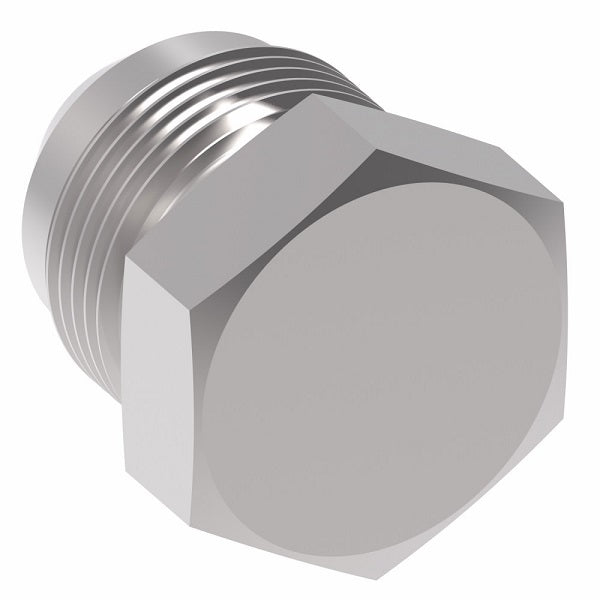

259-900599-6 Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -06 Male 37° JIC Flare | Stainless Steel

259-900599-6 Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -06 Male 37° JIC Flare | Stainless Steel

Name: 259-900599-6 Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -06 Male 37° JIC Flare | Stainless Steel
Brand: Danfoss/Eaton
SKU: 259-900599-6 Danfoss
Price: 29.96 USD
Availability: InStock

$29.96 - $29.96

$29.96

$29.96 - $29.96

$29.96

Aeroquip® by Danfoss
Male 37° JIC Flare Plug Adapter
Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 259-900599-6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male JIC
Material(s):	Stainless Steel

Specifications:
Ref. SAE 070109


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T1	A	B
900599-3S	-	0.19"	3/8-24	0.73"	0.44"
900599-4S	-	0.25"	7/16-20	0.80"	0.50"
900599-5S	-	0.31"	1/2-20	0.80"	0.56"
900599-6S	259-900599-6	0.38"	9/16-18	0.84"	0.62"
900599-8S	-	0.50"	3/4-16	0.94"	0.81"
900599-10S	-	0.63"	7/8-14	1.10"	0.94"
900599-12S	259-900599-12	0.75"	1-1/16-12	1.28"	1.12"
900599-14S	-	-	-	-	-
900599-16S	-	1.00"	1-5/16-12	1.33"	1.38"
900599-20S	-	1.25"	1-5/8-12	1.45"	1.69"
900599-24S	-	1.50"	1-7/8-12	1.65"	2.00"
900599-32S	-	2.00"	2-1/2-12	2.05"	2.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
