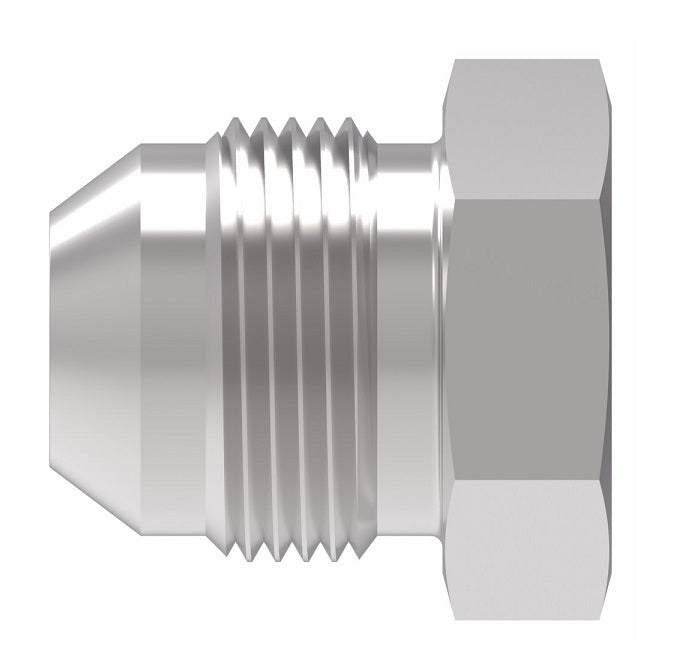

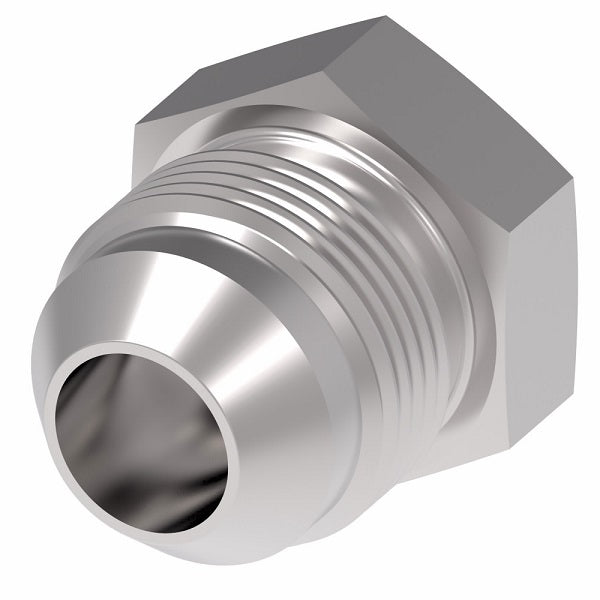

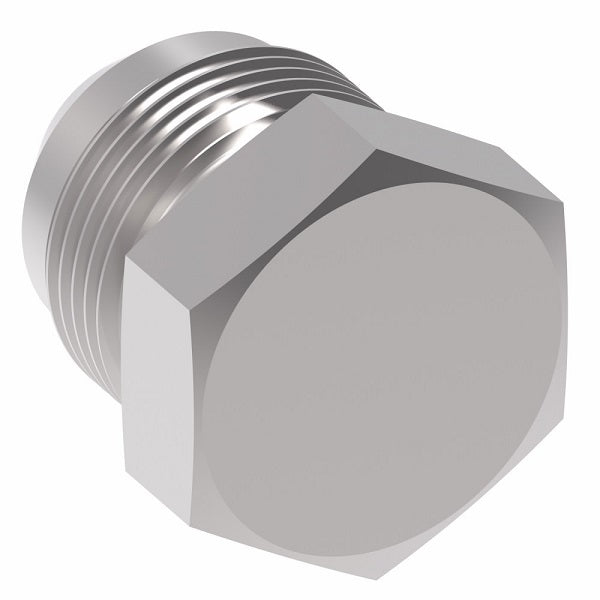

900599-10S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -10 Male 37° JIC Flare | Steel
900599-10S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -10 Male 37° JIC Flare | Steel
900599-10S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -10 Male 37° JIC Flare | Steel
900599-10S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -10 Male 37° JIC Flare | Steel

900599-10S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -10 Male 37° JIC Flare | Steel

$1.90 - $1.90
$1.90
$1.90 - $1.90
$1.90

Aeroquip® by Danfoss
Male 37° JIC Flare Plug Adapter
Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 900599-10S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070109
Part Number
Steel		 Part Number
Stainless Steel		 Tube O.D. Thread T1 A B
900599-3S - 0.19" 3/8-24 0.73" 0.44"
900599-4S - 0.25" 7/16-20 0.80" 0.50"
900599-5S - 0.31" 1/2-20 0.80" 0.56"
900599-6S 259-900599-6 0.38" 9/16-18 0.84" 0.62"
900599-8S - 0.50" 3/4-16 0.94" 0.81"
900599-10S - 0.63" 7/8-14 1.10" 0.94"
900599-12S 259-900599-12 0.75" 1-1/16-12 1.28" 1.12"
900599-14S - - - - -
900599-16S - 1.00" 1-5/16-12 1.33" 1.38"
900599-20S - 1.25" 1-5/8-12 1.45" 1.69"
900599-24S - 1.50" 1-7/8-12 1.65" 2.00"
900599-32S - 2.00" 2-1/2-12 2.05" 2.62"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
