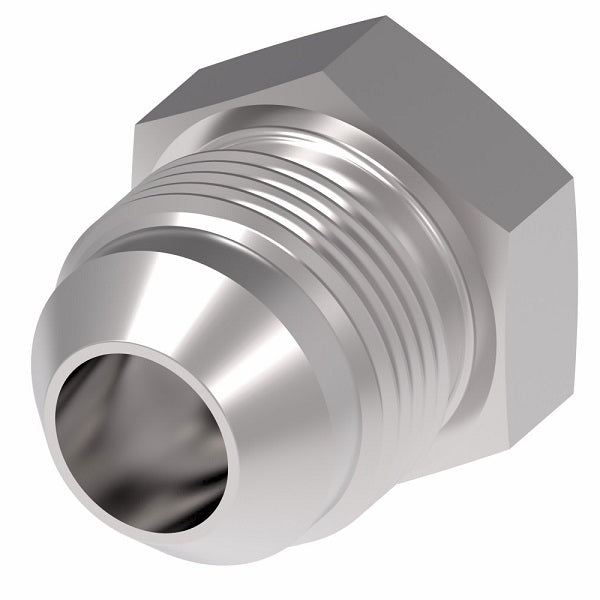

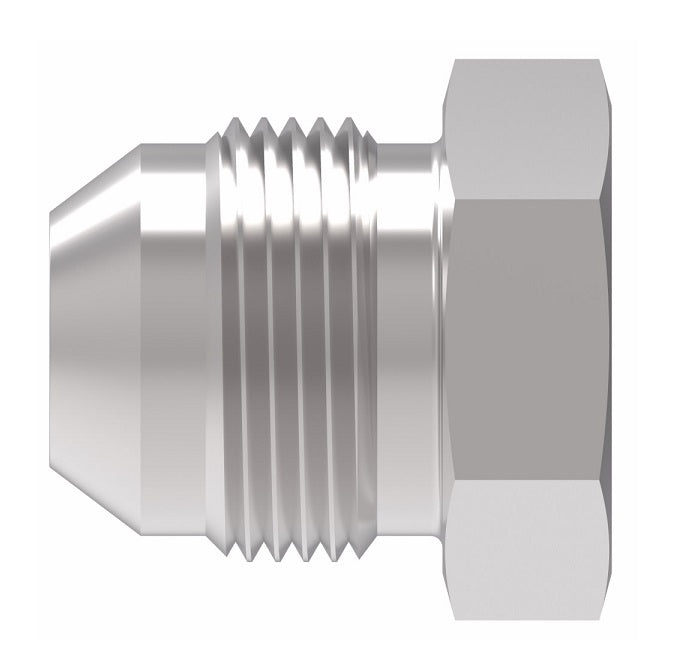

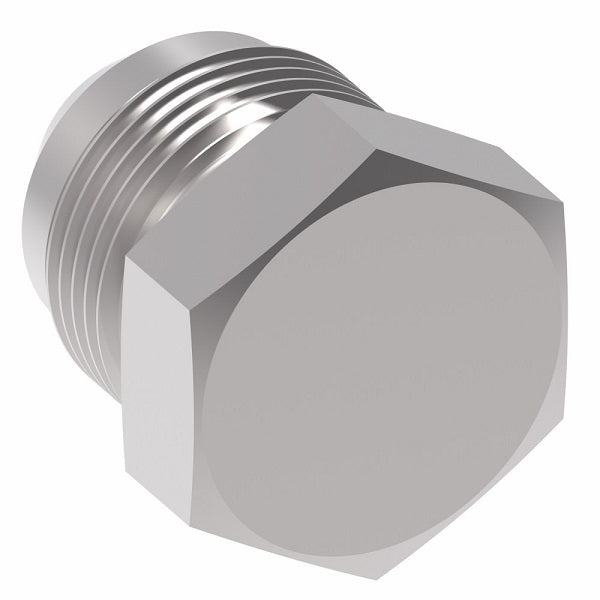

900599-12S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -12 Male 37° JIC Flare | Steel

900599-12S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -12 Male 37° JIC Flare | Steel

Name: 900599-12S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -12 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 900599-12S Danfoss
Price: 4.05 USD
Availability: InStock

$4.05 - $4.05

$4.05

$4.05 - $4.05

$4.05

Aeroquip® by Danfoss
Male 37° JIC Flare Plug Adapter
Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 900599-12S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070109


Part Number Steel	Part Number Stainless Steel	Tube O.D.	Thread T1	A	B
900599-3S	-	0.19"	3/8-24	0.73"	0.44"
900599-4S	-	0.25"	7/16-20	0.80"	0.50"
900599-5S	-	0.31"	1/2-20	0.80"	0.56"
900599-6S	259-900599-6	0.38"	9/16-18	0.84"	0.62"
900599-8S	-	0.50"	3/4-16	0.94"	0.81"
900599-10S	-	0.63"	7/8-14	1.10"	0.94"
900599-12S	259-900599-12	0.75"	1-1/16-12	1.28"	1.12"
900599-14S	-	-	-	-	-
900599-16S	-	1.00"	1-5/16-12	1.33"	1.38"
900599-20S	-	1.25"	1-5/8-12	1.45"	1.69"
900599-24S	-	1.50"	1-7/8-12	1.65"	2.00"
900599-32S	-	2.00"	2-1/2-12	2.05"	2.62"
