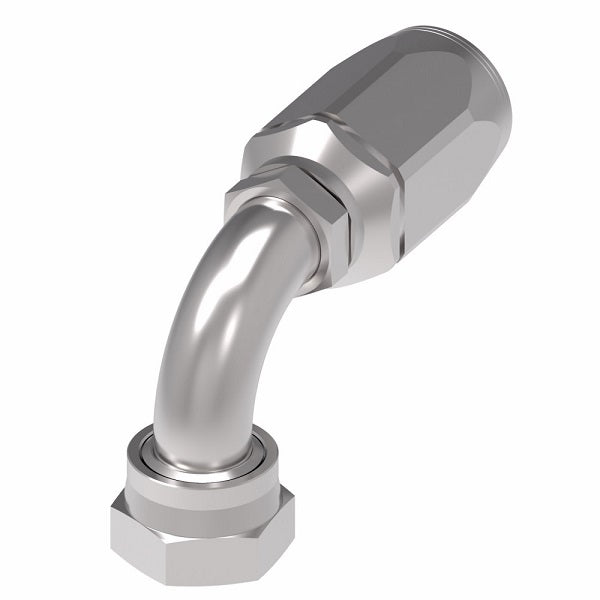

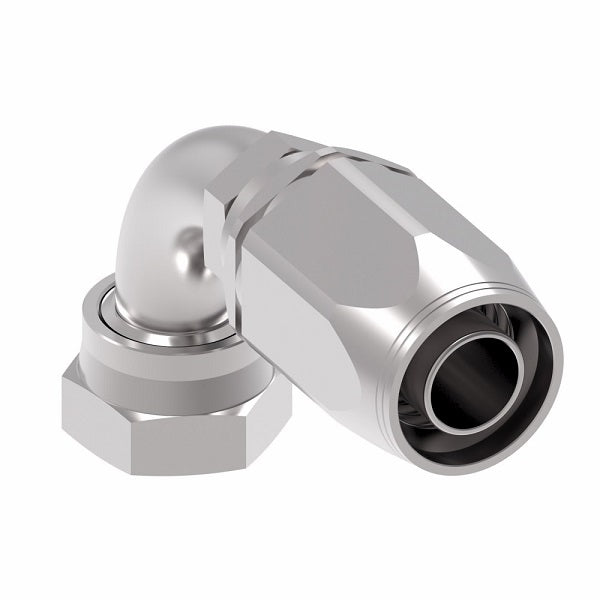

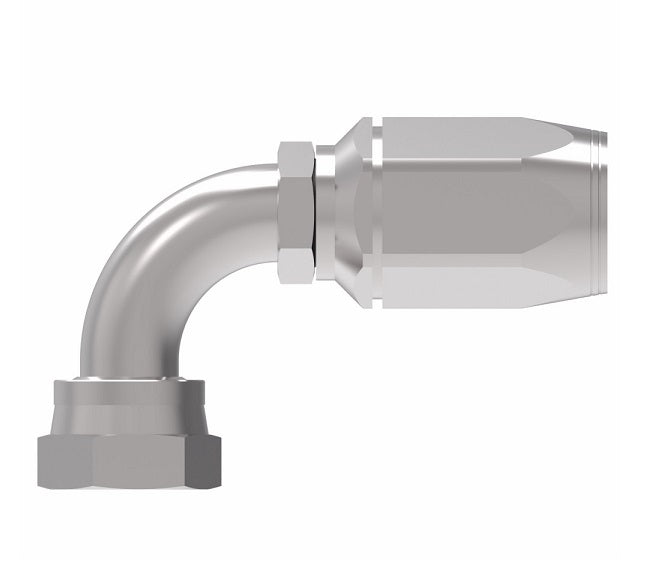

2RA12FRB12 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRB12 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRB12 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel
2RA12FRB12 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

2RA12FRB12 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Female O-Ring Face Seal Swivel x -12 Reusable Hose End | Steel

$179.72 - $179.72
$179.72
$179.72 - $179.72
$179.72

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - 90° Elbow
Specifications for Variant SKU: 2RA12FRB12 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FRB4 FJ8734-0404S 2RA4 9/16-18 -04 2.47" 1.30" 0.17" 0.82"
2RA6FRB6 FJ8734-0606S 2RA6 11/16-16 -06 2.72" 1.38" 0.26" 0.90"
2RA8FRB8 FJ8734-0808S 2RA8 13/16-16 -08 3.03" 1.52" 0.38" 1.15"
2RA12FRB12 FJ8734-1212S 2RA12 1-3/16-12 -12 4.11" 2.24" 0.61" 1.88"
2RA16FRB16 FJ8734-1616S 2RA16 1-7/16-12 -16 4.84" 2.79" 0.81" 2.21"
