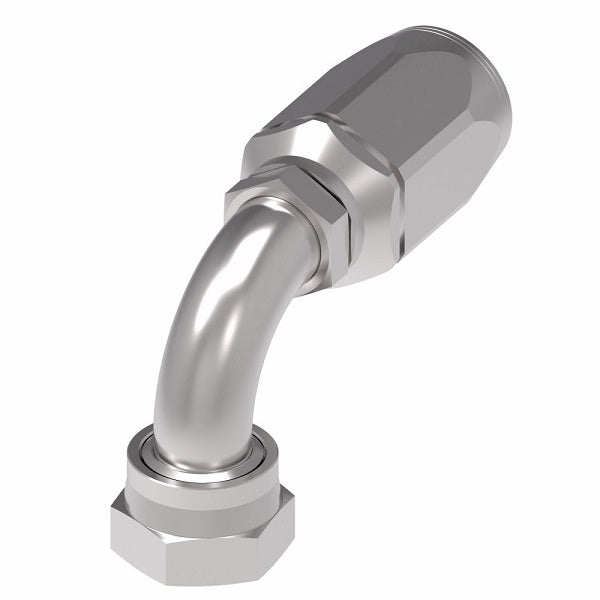

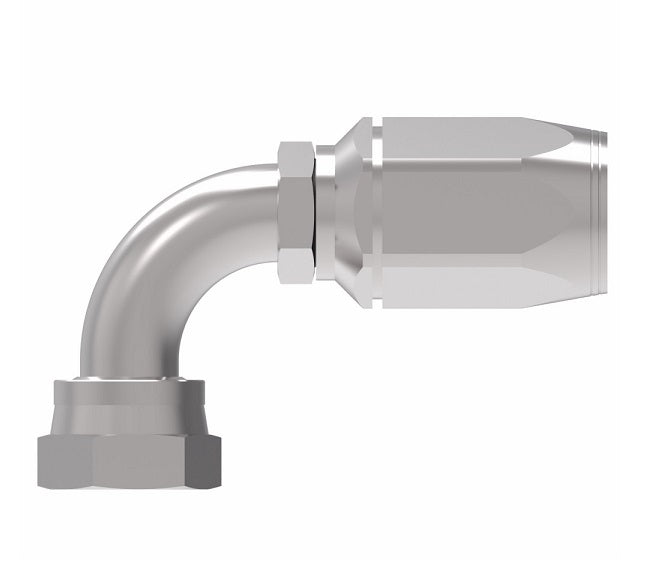

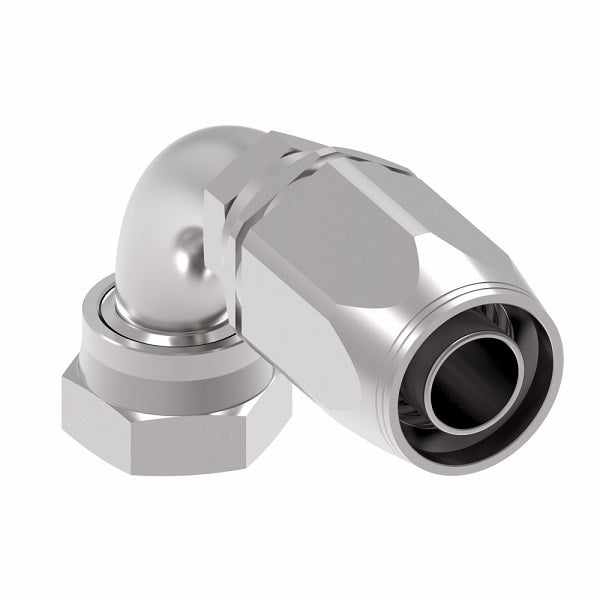

2RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

2RA6FRB6 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

$114.59 - $114.59
$114.59
$114.59 - $114.59
$114.59

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - 90° Elbow
Specifications for Variant SKU: 2RA6FRB6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FRB4 FJ8734-0404S 2RA4 9/16-18 -04 2.47" 1.30" 0.17" 0.82"
2RA6FRB6 FJ8734-0606S 2RA6 11/16-16 -06 2.72" 1.38" 0.26" 0.90"
2RA8FRB8 FJ8734-0808S 2RA8 13/16-16 -08 3.03" 1.52" 0.38" 1.15"
2RA12FRB12 FJ8734-1212S 2RA12 1-3/16-12 -12 4.11" 2.24" 0.61" 1.88"
2RA16FRB16 FJ8734-1616S 2RA16 1-7/16-12 -16 4.84" 2.79" 0.81" 2.21"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
