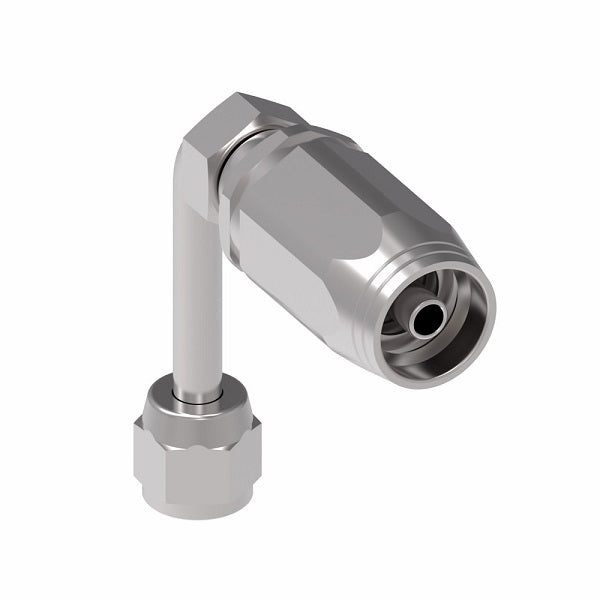

2RA6FJC6 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJC6 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJC6 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
2RA6FJC6 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

2RA6FJC6 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$69.69 - $69.69
$69.69
$69.69 - $69.69
$69.69

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Long Drop - 90° Elbow
Specifications for Variant SKU: 2RA6FJC6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Long Drop, Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FJC4 185263-4S 2RA4 7/16-20 -04 2.40" 1.23" 0.17" 1.80"
2RA6FJC6 185263-6S 2RA6 9/16-18 -06 2.72" 1.38" 0.31" 2.18"
2RA8FJC8 185263-8S 2RA8 3/4-16 -08 3.02" 1.52" 0.39" 2.43"
2RA12FJC12 185263-12S 2RA12 1-1/16-12 -12 4.11" 2.24" 0.61" 3.73"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
