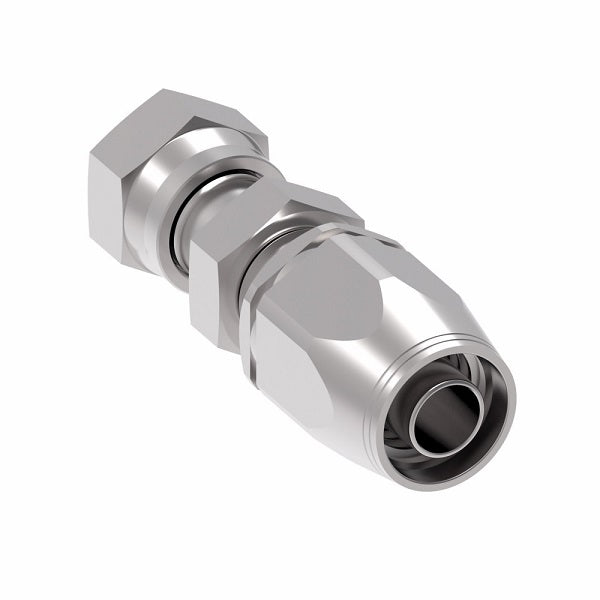

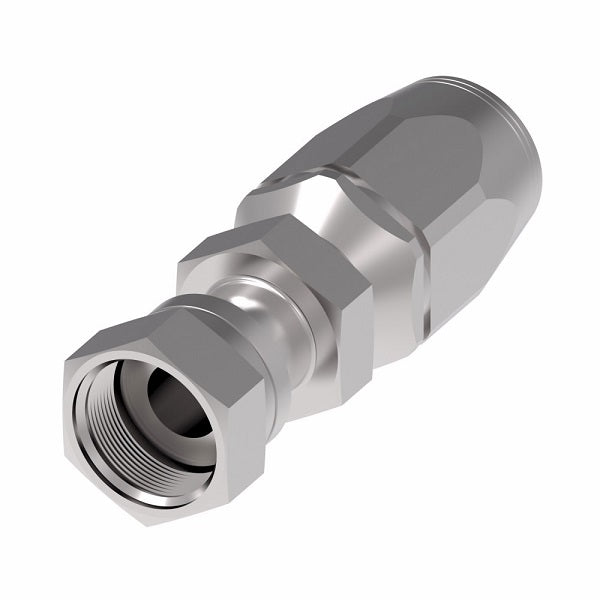

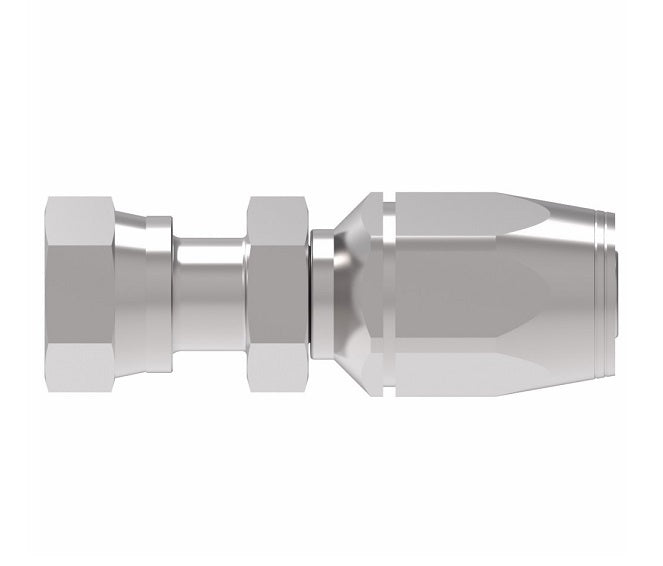

2RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
2RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

2RA6FR6 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

$76.98 - $76.98
$76.98
$76.98 - $76.98
$76.98

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - Straight
Specifications for Variant SKU: 2RA6FR6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4FR4 FJ8732-0404S 2RA4 9/16-18 -04 2.76" 1.59" 0.16"
2RA6FR6 FJ8732-0606S 2RA6 11/16-16 -06 3.03" 1.69" 0.26"
2RA8FR8 FJ8732-0808S 2RA8 13/16-16 -08 3.40" 1.89" 0.36"
2RA12FR12 FJ8732-1212S 2RA12 1-3/16-12 -12 4.06" 2.36" 0.55"
2RA16FR16 FJ8732-1616S 1RA16 1-7/16-12 -16 4.79" 2.74" 0.78"
