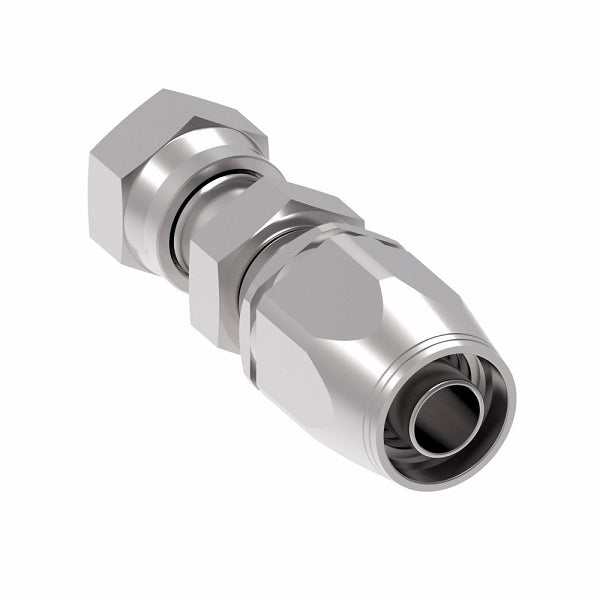

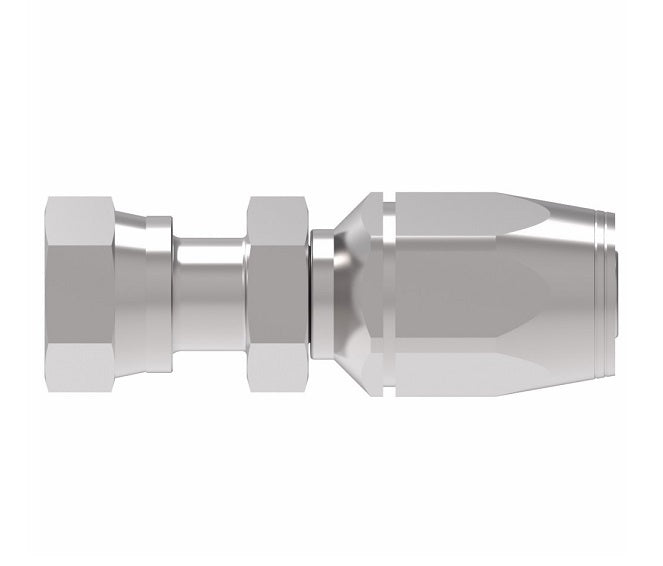

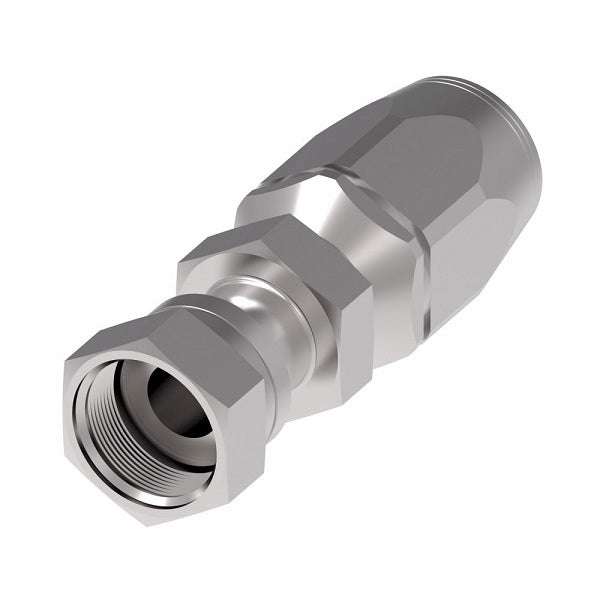

2RA8FR8 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
2RA8FR8 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
2RA8FR8 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
2RA8FR8 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

2RA8FR8 Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

$78.70 - $78.70
$78.70
$78.70 - $78.70
$78.70

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - Straight
Specifications for Variant SKU: 2RA8FR8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4FR4 FJ8732-0404S 2RA4 9/16-18 -04 2.76" 1.59" 0.16"
2RA6FR6 FJ8732-0606S 2RA6 11/16-16 -06 3.03" 1.69" 0.26"
2RA8FR8 FJ8732-0808S 2RA8 13/16-16 -08 3.40" 1.89" 0.36"
2RA12FR12 FJ8732-1212S 2RA12 1-3/16-12 -12 4.06" 2.36" 0.55"
2RA16FR16 FJ8732-1616S 1RA16 1-7/16-12 -16 4.79" 2.74" 0.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
