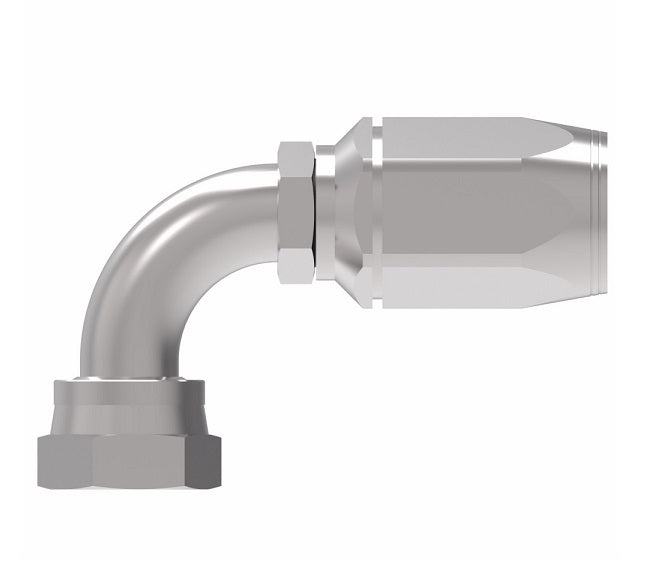

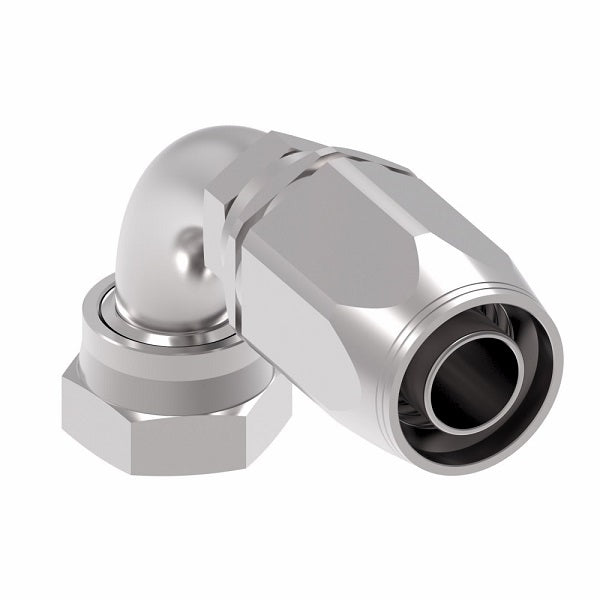

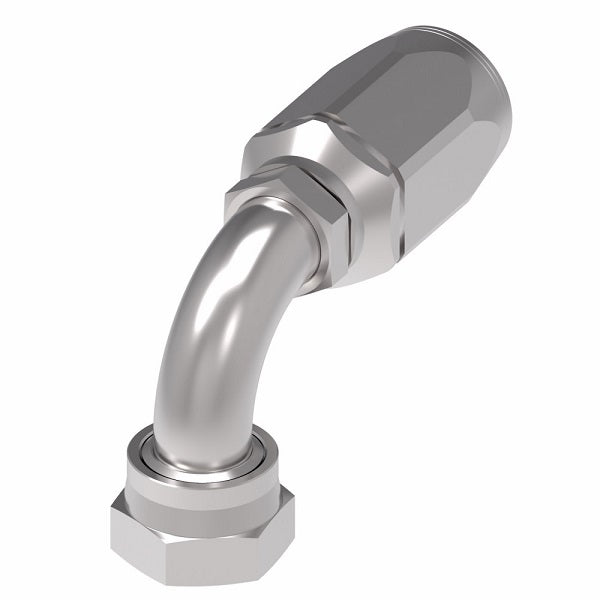

2RA4FRB4 Weatherhead by Danfoss | Female ORS Swivel 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

Original price $110.45 - Original price $110.45
Original price
$110.45
$110.45 - $110.45
Current price $110.45

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female O-Ring Face Seal Swivel - 90° Elbow


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2RA4FRB4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number
Nipple Assembly
Part Number
Steel
Reusable Socket
Part Number
Thread Size Hose Size A D E&Oslash H
2RA4FRB4 FJ8734-0404S 2RA4 9/16-18 -04 2.47" 1.30" 0.17" 0.82"
2RA6FRB6 FJ8734-0606S 2RA6 11/16-16 -06 2.72" 1.38" 0.26" 0.90"
2RA8FRB8 FJ8734-0808S 2RA8 13/16-16 -08 3.03" 1.52" 0.38" 1.15"
2RA12FRB12 FJ8734-1212S 2RA12 1-3/16-12 -12 4.11" 2.24" 0.61" 1.88"
2RA16FRB16 FJ8734-1616S 2RA16 1-7/16-12 -16 4.84" 2.79" 0.81" 2.21"
