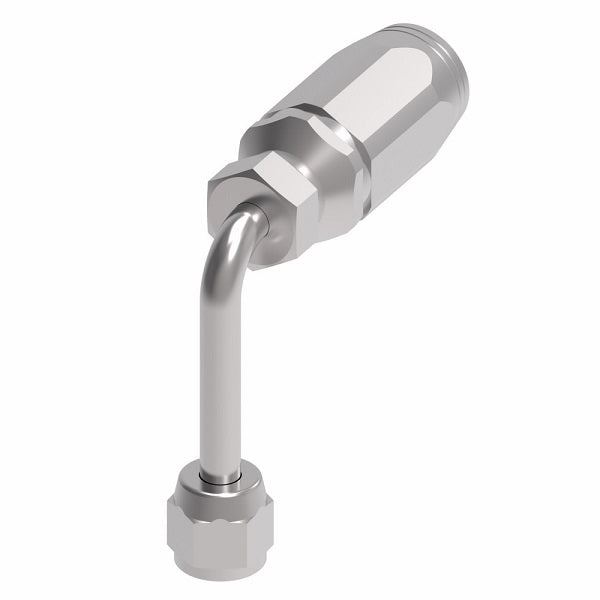

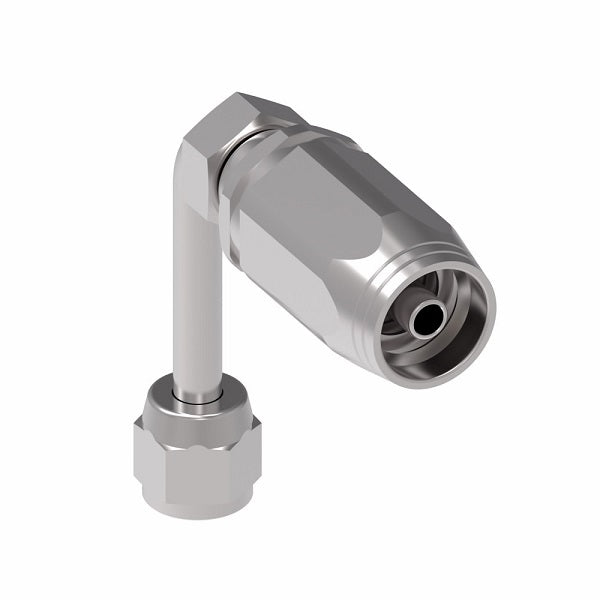

2RA8FJC8 Weatherhead by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

Original price $85.99 - Original price $85.99
Original price
$85.99
$85.99 - $85.99
Current price $85.99

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel Long Drop - 90° Elbow


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2RA8FJC8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Long Drop, Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number
Nipple Assembly
Part Number
Reusable Socket
Part Number
Thread Size Hose Size A D E&Oslash H
2RA4FJC4 185263-4S 2RA4 7/16-20 -04 2.40" 1.23" 0.17" 1.80"
2RA6FJC6 185263-6S 2RA6 9/16-18 -06 2.72" 1.38" 0.31" 2.18"
2RA8FJC8 185263-8S 2RA8 3/4-16 -08 3.02" 1.52" 0.39" 2.43"
2RA12FJC12 185263-12S 2RA12 1-1/16-12 -12 4.11" 2.24" 0.61" 3.73"
