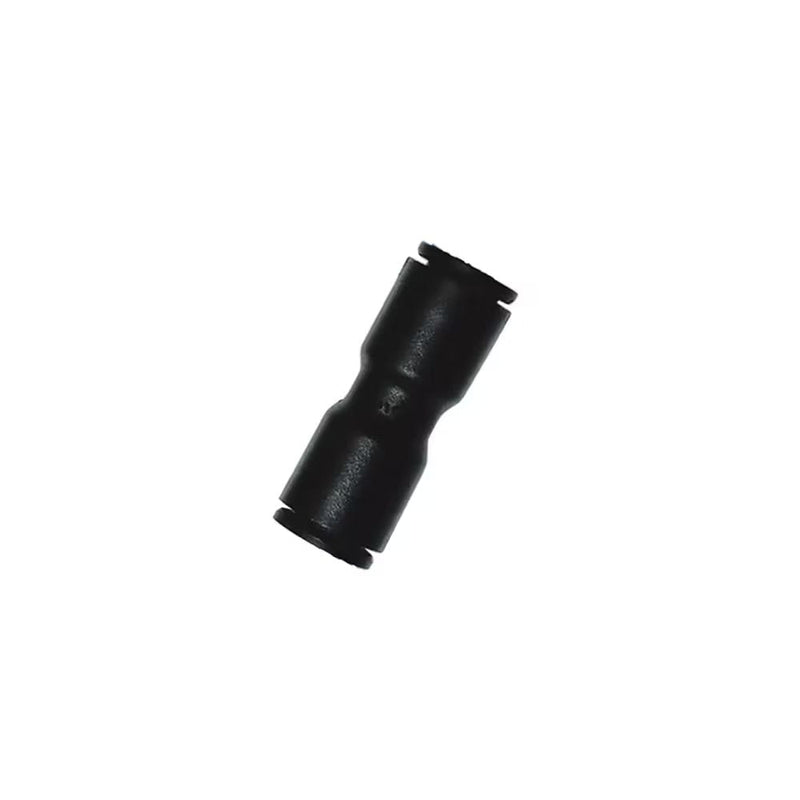

3106 04 08 by Parker | Legris Push-In Fitting | 4 mm Push-to-Connect x 8 mm Push-to-Connect | 34 mm Length | Straight | Polymer | Pack of 10

Save $41.61

$104.02

$104.02 - $104.02

$104.02

$62.41

$62.41 - $62.41

$62.41

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3106 04 08 Parker \| 10 \|
Brand:	LF 3000®
Series:	3106 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	G	G1	L	Kg
3106 03 00	3 mm	3 mm	-	8.5 mm	25 mm	.002 Kg
3106 03 04	3 mm	4 mm	-	8.5 mm	25 mm	.002 Kg
3106 04 00	4 mm	4 mm	-	8.5 mm	25 mm	.001 Kg
3106 04 06	4 mm	6 mm	-	11 mm	28 mm	.002 Kg
3106 04 08	4 mm	8 mm	10.6 mm	13.5 mm	34,1 mm	.005 Kg
3106 06 56	6 mm	1/4" mm	-	13.5 mm	36 mm	.009 Kg
3106 06 00	6 mm	6 mm	-	10.5 mm	28.5 mm	.002 Kg
3106 06 08	6 mm	8 mm	10.6	13.5 mm	34,1 mm	.005 Kg
3106 06 10	6 mm	10 mm	-	16 mm	42 mm	.008 Kg
3106 08 00	8 mm	8 mm	-	13.5 mm	38 mm	.004 Kg
3106 08 10	8 mm	10 mm	-	16 mm	42 mm	.007 Kg
3106 08 12	8 mm	12 mm	-	19 mm	50.5 mm	.026 Kg
3106 10 00	10 mm	10 mm	-	16 mm	42 mm	.005 Kg
3106 10 12	10 mm	12 mm	-	19 mm	50.5 mm	.018 Kg
3106 12 62	12 mm	1/2"	-	22 mm	56.5 mm	.041 Kg
3106 12 00	12 mm	12 mm	-	19 mm	50.5 mm	.009 Kg
3106 12 14	12 mm	14 mm	-	22 mm	56 mm	.025 Kg
3106 12 16	12 mm	16 mm	-	27 mm	61 mm	.066 Kg
3106 14 00	14 mm	14 mm	-	22 mm	56 mm	.014 Kg
3106 16 00	16 mm	16 mm	-	27 mm	56 mm	.041 Kg
