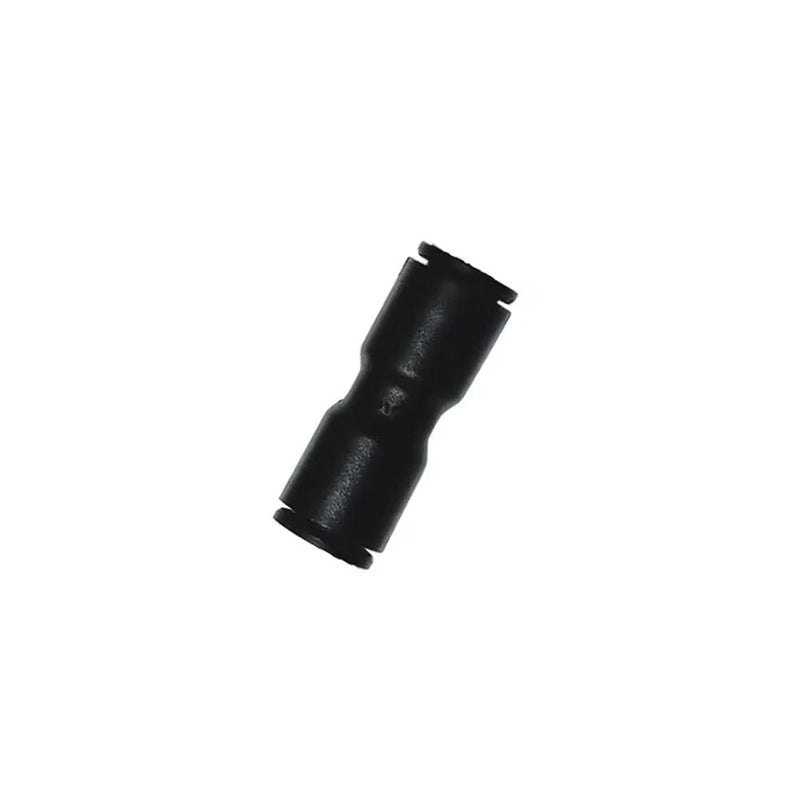

3106 08 12 by Parker | Legris Push-In Fitting | 8 mm Push-to-Connect x 12 mm Push-to-Connect | 50.5 mm Length | Straight | Polymer | Pack of 10

Save $68.20

$170.50

$170.50 - $170.50

$170.50

$102.30

$102.30 - $102.30

$102.30

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3106 08 12 Parker \| 10 \|
Brand:	LF 3000®
Series:	3106 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	G	G1	L	Kg
3106 03 00	3 mm	3 mm	-	8.5 mm	25 mm	.002 Kg
3106 03 04	3 mm	4 mm	-	8.5 mm	25 mm	.002 Kg
3106 04 00	4 mm	4 mm	-	8.5 mm	25 mm	.001 Kg
3106 04 06	4 mm	6 mm	-	11 mm	28 mm	.002 Kg
3106 04 08	4 mm	8 mm	10.6 mm	13.5 mm	34,1 mm	.005 Kg
3106 06 56	6 mm	1/4" mm	-	13.5 mm	36 mm	.009 Kg
3106 06 00	6 mm	6 mm	-	10.5 mm	28.5 mm	.002 Kg
3106 06 08	6 mm	8 mm	10.6	13.5 mm	34,1 mm	.005 Kg
3106 06 10	6 mm	10 mm	-	16 mm	42 mm	.008 Kg
3106 08 00	8 mm	8 mm	-	13.5 mm	38 mm	.004 Kg
3106 08 10	8 mm	10 mm	-	16 mm	42 mm	.007 Kg
3106 08 12	8 mm	12 mm	-	19 mm	50.5 mm	.026 Kg
3106 10 00	10 mm	10 mm	-	16 mm	42 mm	.005 Kg
3106 10 12	10 mm	12 mm	-	19 mm	50.5 mm	.018 Kg
3106 12 62	12 mm	1/2"	-	22 mm	56.5 mm	.041 Kg
3106 12 00	12 mm	12 mm	-	19 mm	50.5 mm	.009 Kg
3106 12 14	12 mm	14 mm	-	22 mm	56 mm	.025 Kg
3106 12 16	12 mm	16 mm	-	27 mm	61 mm	.066 Kg
3106 14 00	14 mm	14 mm	-	22 mm	56 mm	.014 Kg
3106 16 00	16 mm	16 mm	-	27 mm	56 mm	.041 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
