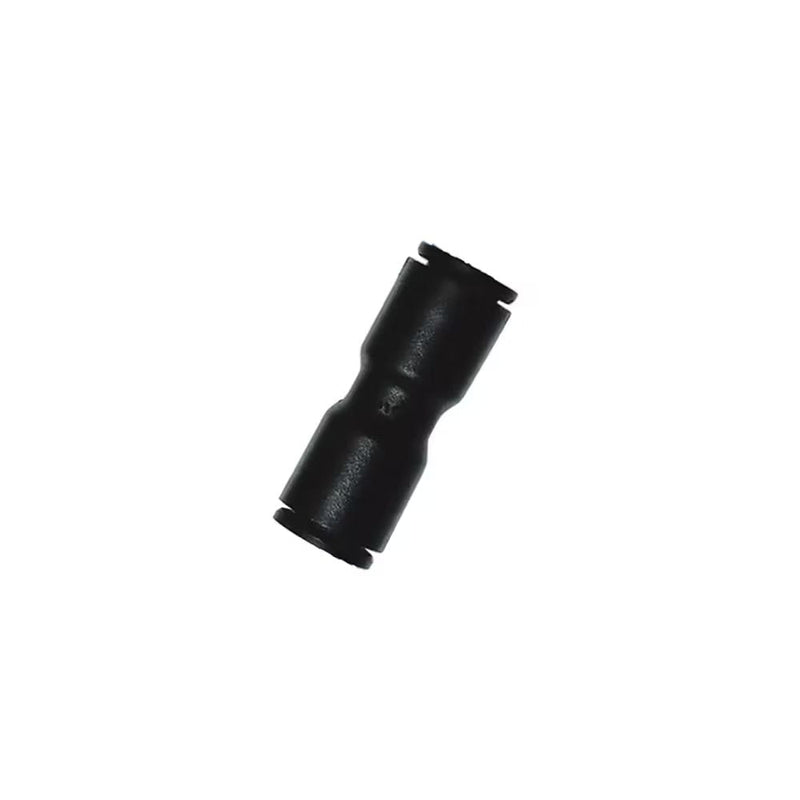

3106 06 10 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 10 mm Push-to-Connect | 42 mm Length | Straight | Polymer

3106 06 10 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 10 mm Push-to-Connect | 42 mm Length | Straight | Polymer | Pack of 10

Save $62.38 Save $62.38
$155.95
$155.95 - $155.95
$155.95
$93.57
$93.57 - $93.57
$93.57

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3106 06 10 Parker | 10 |
Brand: LF 3000®
Series: 3106 Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD ØD1 G G1 L Kg
3106 03 00 3 mm 3 mm - 8.5 mm 25 mm .002 Kg
3106 03 04 3 mm 4 mm - 8.5 mm 25 mm .002 Kg
3106 04 00 4 mm 4 mm - 8.5 mm 25 mm .001 Kg
3106 04 06 4 mm 6 mm - 11 mm 28 mm .002 Kg
3106 04 08 4 mm 8 mm 10.6 mm 13.5 mm 34,1 mm .005 Kg
3106 06 56 6 mm 1/4" mm - 13.5 mm 36 mm .009 Kg
3106 06 00 6 mm 6 mm - 10.5 mm 28.5 mm .002 Kg
3106 06 08 6 mm 8 mm 10.6 13.5 mm 34,1 mm .005 Kg
3106 06 10 6 mm 10 mm - 16 mm 42 mm .008 Kg
3106 08 00 8 mm 8 mm - 13.5 mm 38 mm .004 Kg
3106 08 10 8 mm 10 mm - 16 mm 42 mm .007 Kg
3106 08 12 8 mm 12 mm - 19 mm 50.5 mm .026 Kg
3106 10 00 10 mm 10 mm - 16 mm 42 mm .005 Kg
3106 10 12 10 mm 12 mm - 19 mm 50.5 mm .018 Kg
3106 12 62 12 mm 1/2" - 22 mm 56.5 mm .041 Kg
3106 12 00 12 mm 12 mm - 19 mm 50.5 mm .009 Kg
3106 12 14 12 mm 14 mm - 22 mm 56 mm .025 Kg
3106 12 16 12 mm 16 mm - 27 mm 61 mm .066 Kg
3106 14 00 14 mm 14 mm - 22 mm 56 mm .014 Kg
3106 16 00 16 mm 16 mm - 27 mm 56 mm .041 Kg
