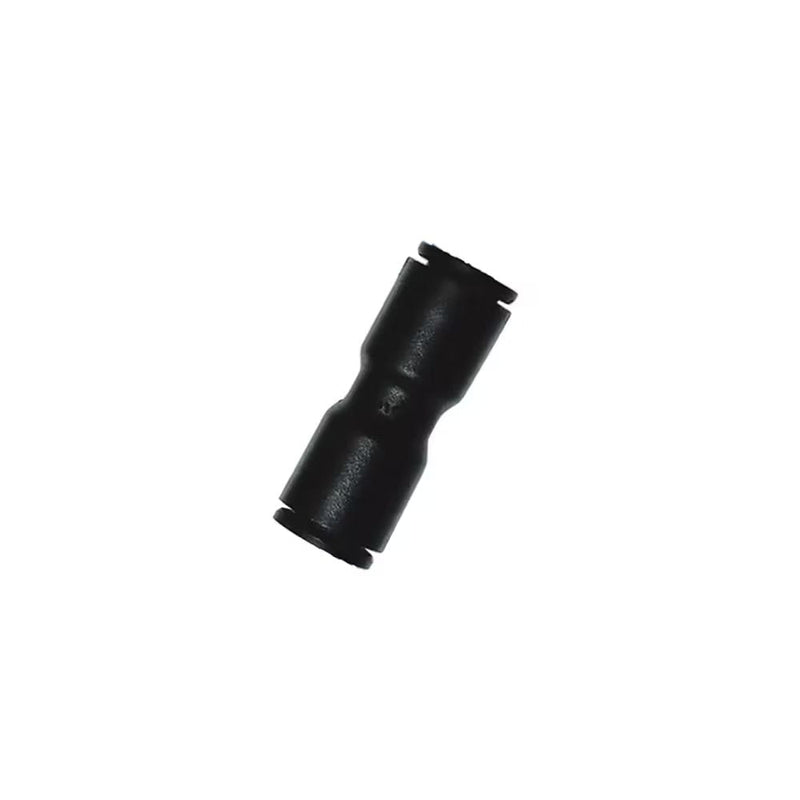

3106 04 56 by Parker | Tube to Tube Fitting | 5/32" Push-to-Connect x 1/4" Push-to-Connect | 1.16" Length | Straight | Nylon

3106 04 56 by Parker | Tube to Tube Fitting | 5/32" Push-to-Connect x 1/4" Push-to-Connect | 1.16" Length | Straight | Nylon | Pack of 10

Save $31.09 Save $31.09
$77.73
$77.73 - $77.73
$77.73
$46.64
$46.64 - $46.64
$46.64

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3106 04 56 Parker | 10 |
Brand: LF 3000®
Series: 3106 Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD1 ØD2 G2 L Oz
3106 53 04 1/8" 5/32" .33" .96" .11 Oz
3106 53 56 1/8" 1/4" .43" 1.32" .34 Oz
3106 04 56 5/32" 1/4" .43" 1.16" .34 Oz
3106 56 08 1/4" 5/16" .53" 1.44" .40 Oz
3106 60 56 3/8" 1/4" .63" 1.61" .50 Oz
3106 60 62 3/8" 1/2" .87" 2.17" .55 Oz
