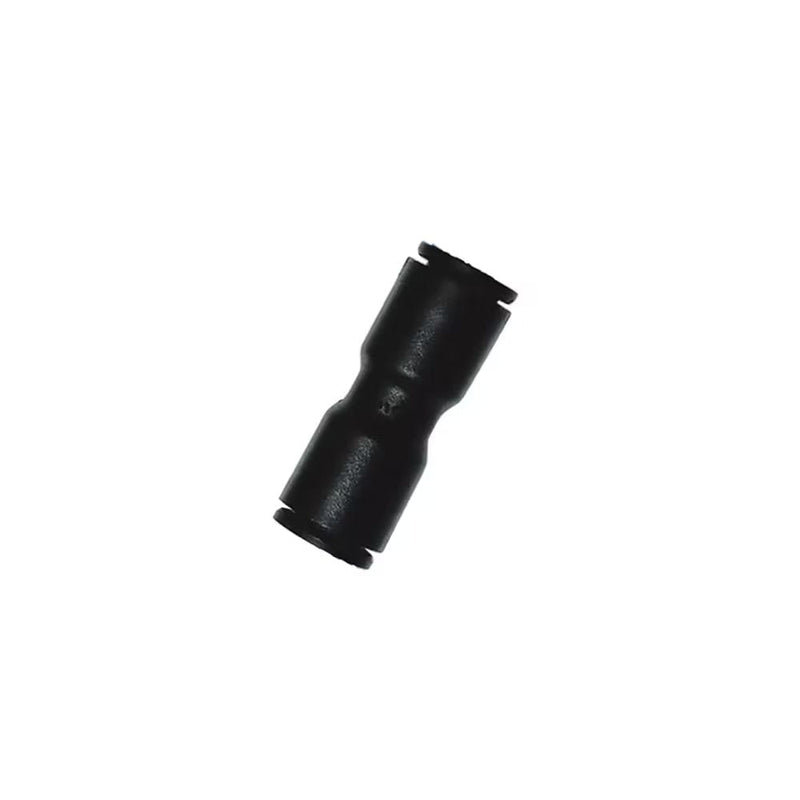

3106 60 56 by Parker | Tube to Tube Fitting | 3/8" Push-to-Connect x 1/4" Push-to-Connect | 1.61" Length | Straight | Nylon

3106 60 56 by Parker | Tube to Tube Fitting | 3/8" Push-to-Connect x 1/4" Push-to-Connect | 1.61" Length | Straight | Nylon | Pack of 10

Save $51.38 Save $51.38
$128.45
$128.45 - $128.45
$128.45
$77.07
$77.07 - $77.07
$77.07

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3106 60 56 Parker | 10 |
Brand: LF 3000®
Series: 3106 Series
Shape (Orientation): Straight
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD1 ØD2 G2 L Oz
3106 53 04 1/8" 5/32" .33" .96" .11 Oz
3106 53 56 1/8" 1/4" .43" 1.32" .34 Oz
3106 04 56 5/32" 1/4" .43" 1.16" .34 Oz
3106 56 08 1/4" 5/16" .53" 1.44" .40 Oz
3106 60 56 3/8" 1/4" .63" 1.61" .50 Oz
3106 60 62 3/8" 1/2" .87" 2.17" .55 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
