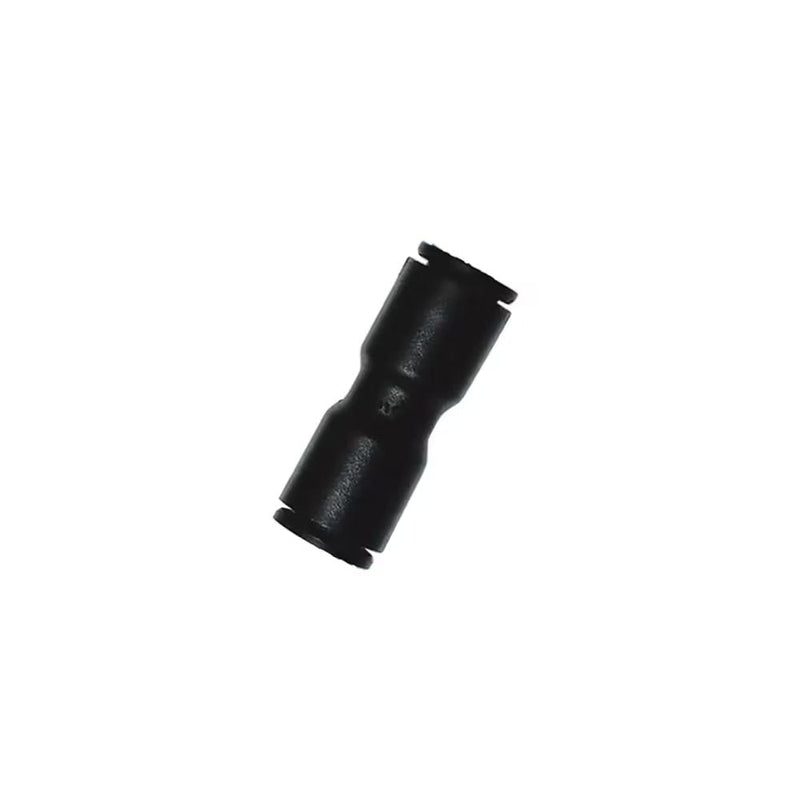

3106 56 08 by Parker | Tube to Tube Fitting | 1/4" Push-to-Connect x 5/16" Push-to-Connect | 1.44" Length | Straight | Nylon | Pack of 10

Save $34.07

$85.18

$85.18 - $85.18

$85.18

$51.11

$51.11 - $51.11

$51.11

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 3106 56 08 Parker \| 10 \|
Brand:	LF 3000®
Series:	3106 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD1	ØD2	G2	L	Oz
3106 53 04	1/8"	5/32"	.33"	.96"	.11 Oz
3106 53 56	1/8"	1/4"	.43"	1.32"	.34 Oz
3106 04 56	5/32"	1/4"	.43"	1.16"	.34 Oz
3106 56 08	1/4"	5/16"	.53"	1.44"	.40 Oz
3106 60 56	3/8"	1/4"	.63"	1.61"	.50 Oz
3106 60 62	3/8"	1/2"	.87"	2.17"	.55 Oz
