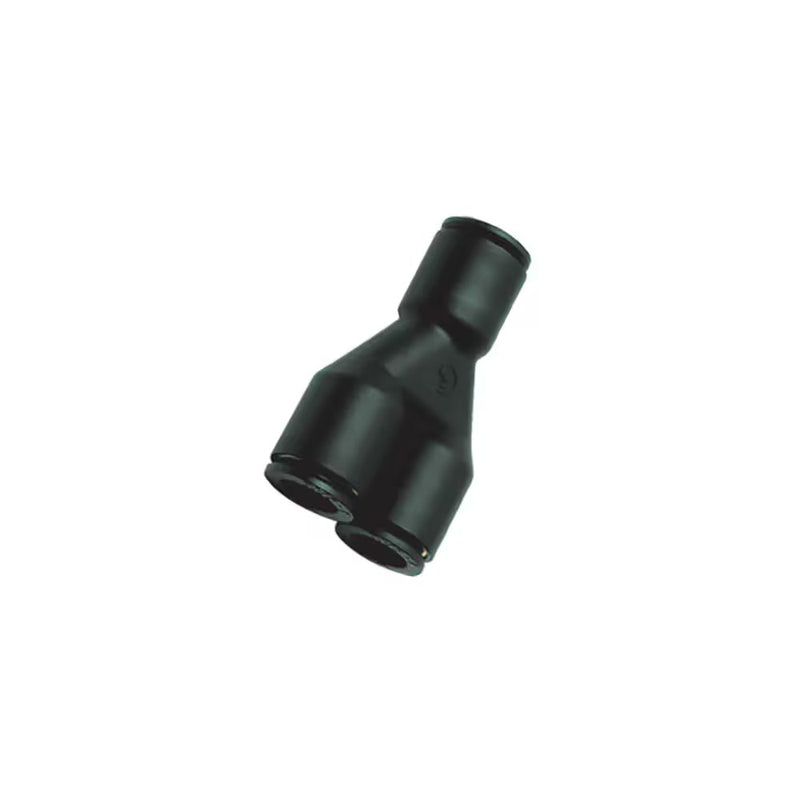

3140 55 00 by Parker | Tube to Tube Fitting | 3/16" Push-to-Connect x 3/16" Push-to-Connect | 1.77" Length | Y | Nylon

3140 55 00 by Parker | Tube to Tube Fitting | 3/16" Push-to-Connect x 3/16" Push-to-Connect | 1.77" Length | Y | Nylon | Pack of 10

Save $63.75 Save $63.75
$159.38
$159.38 - $159.38
$159.38
$95.63
$95.63 - $95.63
$95.63

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3140 - “Y” union fractional inch tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3140 55 00 Parker | 10 |
Brand: LF 3000®
Series: 3140 Series
Shape (Orientation): Y
Material(s): Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD1 ØD2 H K L N Oz
3140 53 00 1/8" 1/8" .69" .33" 1.12" .35" .16 Oz
3140 55 00 3/16" 3/16" .87" .34" 1.77" .45" .10 Oz
3140 56 00 1/4" 1/4" .87" .43" 1.42" .45" .24 Oz
3140 60 00 3/8" 3/8" 1.30" .63" 2.09" .67" .59 Oz
3140 62 00 1/2" 1/2" 1.77" .87" 2.64" .91" .88 Oz
3140 53 56 1/8" 1/4" .87" .43" 1.42" .45" .20 Oz
3140 04 56 5/32" 1/4" .87" .43" 1.42" .45" .43 Oz
3140 56 60 1/4" 3/8" 1.30" .63" 1.31" .67" .50 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
