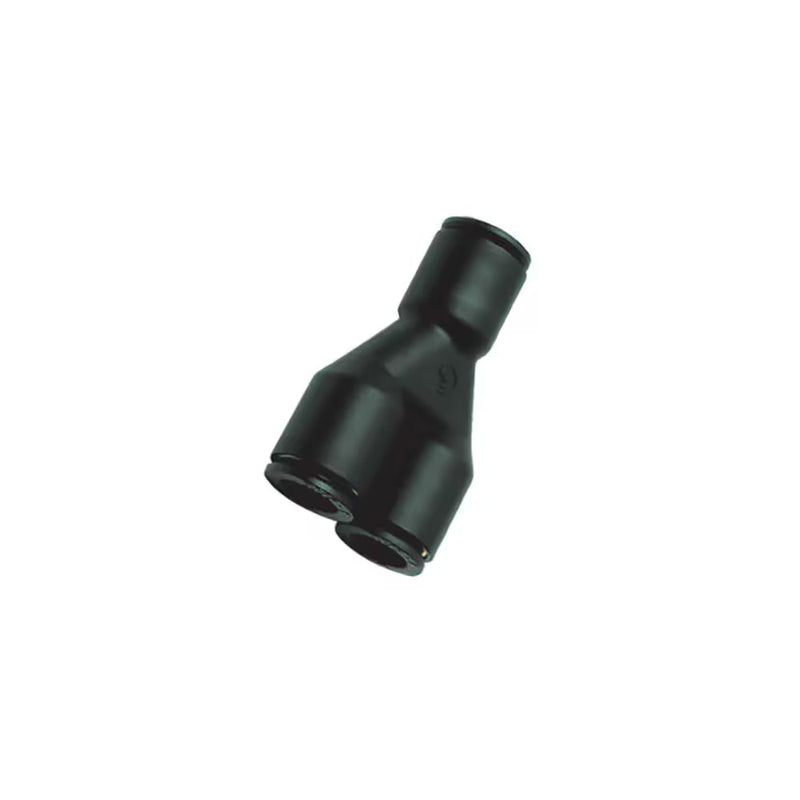

3140 62 00 by Parker | Tube to Tube Fitting | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 2.64" Length | Y | Nylon

3140 62 00 by Parker | Tube to Tube Fitting | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 2.64" Length | Y | Nylon

Save $6.33 Save $6.33
$16.80
$16.80 - $16.80
$16.80
$10.47
$10.47 - $10.47
$10.47

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3140 - “Y” union fractional inch tube to tube
Specifications for Variant SKU: 3140 62 00 Parker
Brand: LF 3000®
Series: 3140 Series
Shape (Orientation): Y
Material(s): Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD1 ØD2 H K L N Oz
3140 53 00 1/8" 1/8" .69" .33" 1.12" .35" .16 Oz
3140 55 00 3/16" 3/16" .87" .34" 1.77" .45" .10 Oz
3140 56 00 1/4" 1/4" .87" .43" 1.42" .45" .24 Oz
3140 60 00 3/8" 3/8" 1.30" .63" 2.09" .67" .59 Oz
3140 62 00 1/2" 1/2" 1.77" .87" 2.64" .91" .88 Oz
3140 53 56 1/8" 1/4" .87" .43" 1.42" .45" .20 Oz
3140 04 56 5/32" 1/4" .87" .43" 1.42" .45" .43 Oz
3140 56 60 1/4" 3/8" 1.30" .63" 1.31" .67" .50 Oz
