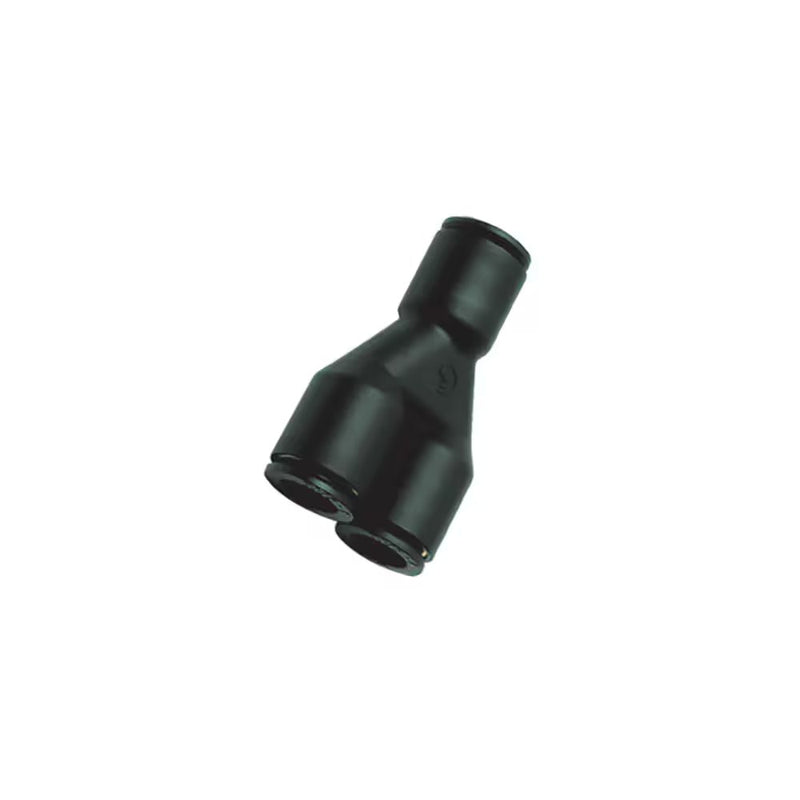

3140 60 00 by Parker | Tube to Tube Fitting | 3/8" Push-to-Connect x 3/8" Push-to-Connect | 2.09" Length | Y | Nylon | Pack of 10

Save $55.93

$139.82

$139.82 - $139.82

$139.82

$83.89

$83.89 - $83.89

$83.89

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3140 - “Y” union fractional inch tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3140 60 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3140 Series
Shape (Orientation):	Y
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance Silicone-Free
Markets:	Pneumatic Industrial Automation Robotic Printing Packaging Textile
Applications:	Air Cutting Fluids Inert Gases Vacuum
Pressure Range	Up to 290 psi (20 bar) 3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range	-4° to +175° F (-20° to +80° C) 3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability	28" Hg


Part Number	ØD1	ØD2	H	K	L	N	Oz
3140 53 00	1/8"	1/8"	.69"	.33"	1.12"	.35"	.16 Oz
3140 55 00	3/16"	3/16"	.87"	.34"	1.77"	.45"	.10 Oz
3140 56 00	1/4"	1/4"	.87"	.43"	1.42"	.45"	.24 Oz
3140 60 00	3/8"	3/8"	1.30"	.63"	2.09"	.67"	.59 Oz
3140 62 00	1/2"	1/2"	1.77"	.87"	2.64"	.91"	.88 Oz
3140 53 56	1/8"	1/4"	.87"	.43"	1.42"	.45"	.20 Oz
3140 04 56	5/32"	1/4"	.87"	.43"	1.42"	.45"	.43 Oz
3140 56 60	1/4"	3/8"	1.30"	.63"	1.31"	.67"	.50 Oz
