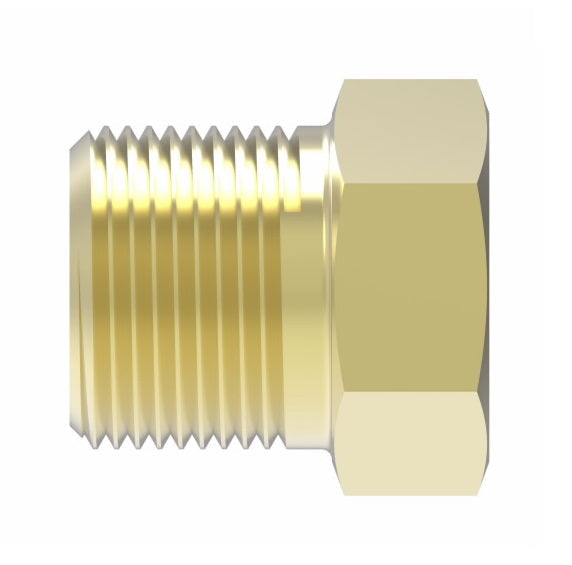

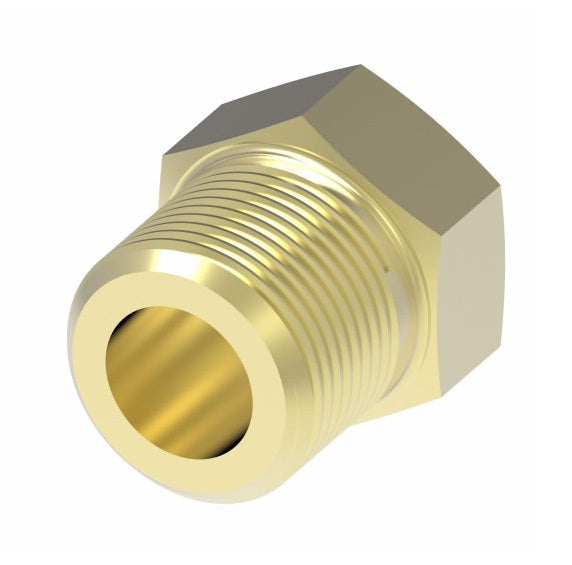

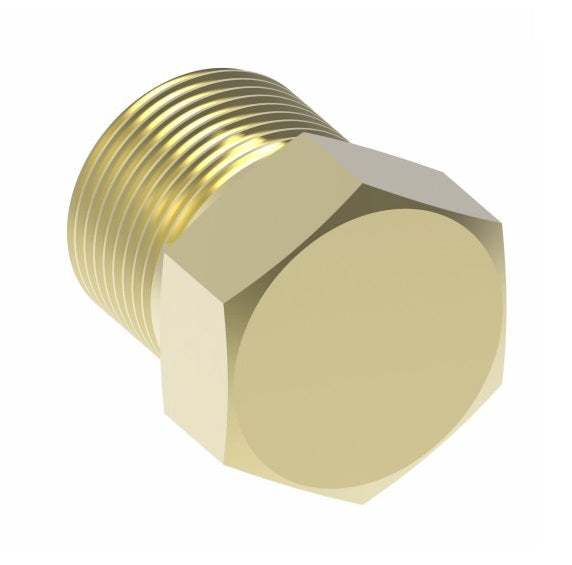

3152X12 by Danfoss | Pipe Adapter | Hex Head Plug | 3/4" Male NPTF (Special Short Thread) | Brass

3152X12 by Danfoss | Pipe Adapter | Hex Head Plug | 3/4" Male NPTF (Special Short Thread) | Brass

Name: 3152X12 by Danfoss | Pipe Adapter | Hex Head Plug | 3/4" Male NPTF (Special Short Thread) | Brass
Brand: Danfoss/Eaton
SKU: 3152X12 Danfoss
Price: 5.26 USD
Availability: InStock

$5.26 - $5.26

$5.26

$5.26 - $5.26

$5.26

Aeroquip® by Danfoss
Pipe Adapter - Hex Head Plug

Quantity

Specifications for Variant SKU: 3152X12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass Part Number with Sealant	Male Pipe Thread (PTF Short Thread)	Hex C	F	L
3152X2	3152X2Z	1/8"	7/16"	0.19"	0.57"
3152X4	3152X4Z	1/4"	9/16"	0.18"	0.62"
3152X6	3152X6Z	3/8"	11/16"	0.22"	0.72"
3152X8	3152X8Z	1/2"	7/8"	0.22"	0.78"
3152X12	3152X12Z	3/4"**	1-1/16"	0.25"	0.88"

** PTF Special Short Thread
