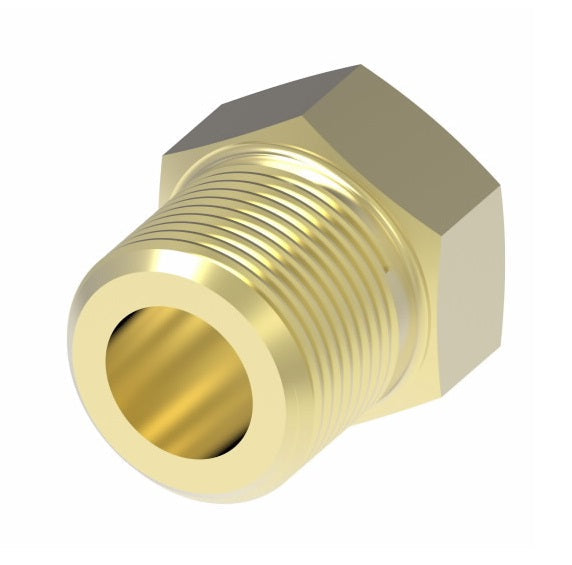

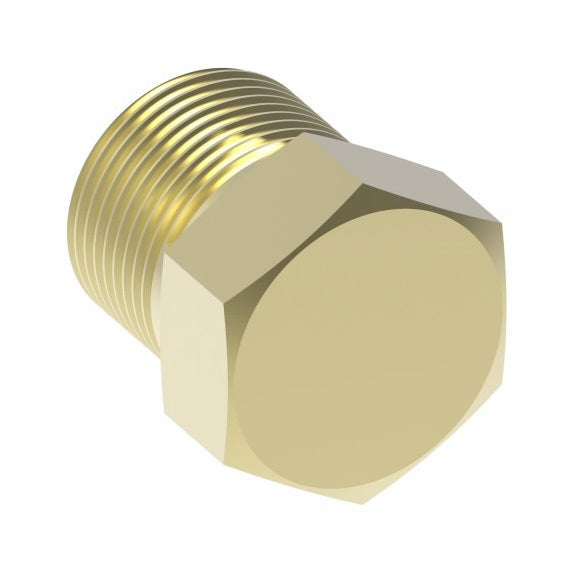

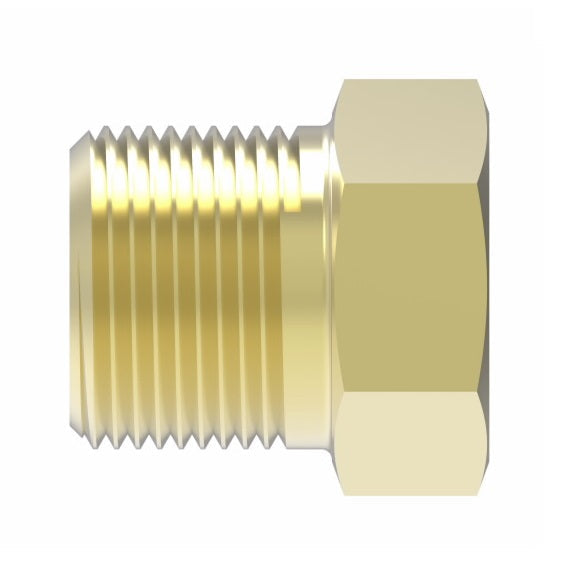

3152X8 by Danfoss | Pipe Adapter | Hex Head Plug | 1/2" Male NPTF (Short Thread) | Brass
3152X8 by Danfoss | Pipe Adapter | Hex Head Plug | 1/2" Male NPTF (Short Thread) | Brass
3152X8 by Danfoss | Pipe Adapter | Hex Head Plug | 1/2" Male NPTF (Short Thread) | Brass
3152X8 by Danfoss | Pipe Adapter | Hex Head Plug | 1/2" Male NPTF (Short Thread) | Brass

3152X8 by Danfoss | Pipe Adapter | Hex Head Plug | 1/2" Male NPTF (Short Thread) | Brass

$4.74 - $4.74
$4.74
$4.74 - $4.74
$4.74

Aeroquip® by Danfoss
Pipe Adapter - Hex Head Plug
Specifications for Variant SKU: 3152X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
Part Number
with Sealant		 Male Pipe Thread
(PTF Short Thread)		 Hex
C		 F L
3152X2 3152X2Z 1/8" 7/16" 0.19" 0.57"
3152X4 3152X4Z 1/4" 9/16" 0.18" 0.62"
3152X6 3152X6Z 3/8" 11/16" 0.22" 0.72"
3152X8 3152X8Z 1/2" 7/8" 0.22" 0.78"
3152X12 3152X12Z 3/4"** 1-1/16" 0.25" 0.88"

** PTF Special Short Thread

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
