Aeroquip® by Danfoss

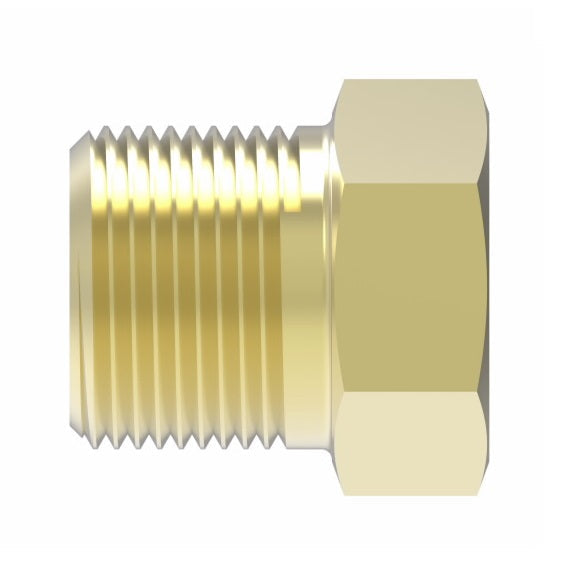

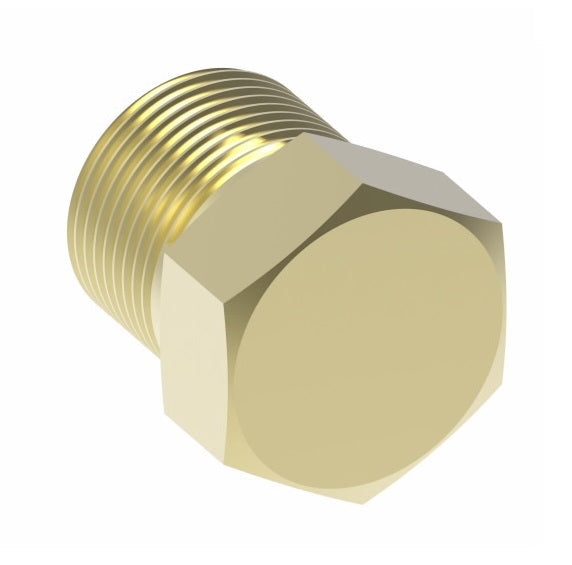

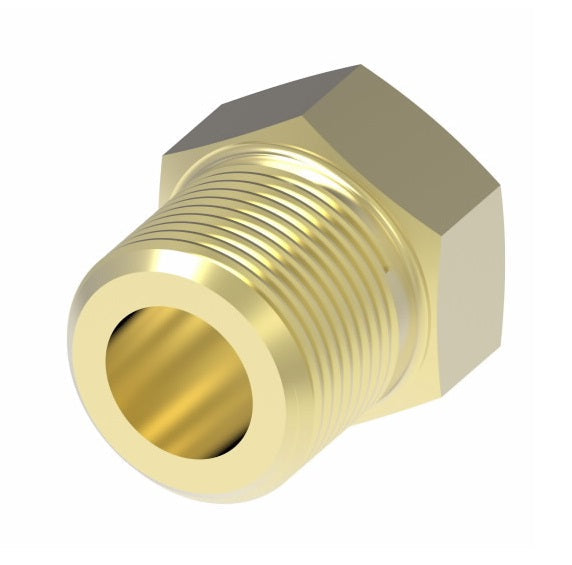

Pipe Adapter - Hex Head Plug
Specifications for Variant SKU: 3152X4Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
Part Number
with Sealant		 Male Pipe Thread
(PTF Short Thread)		 Hex
C		 F L
3152X2 3152X2Z 1/8" 7/16" 0.19" 0.57"
3152X4 3152X4Z 1/4" 9/16" 0.18" 0.62"
3152X6 3152X6Z 3/8" 11/16" 0.22" 0.72"
3152X8 3152X8Z 1/2" 7/8" 0.22" 0.78"
3152X12 3152X12Z 3/4"** 1-1/16" 0.25" 0.88"

** PTF Special Short Thread
