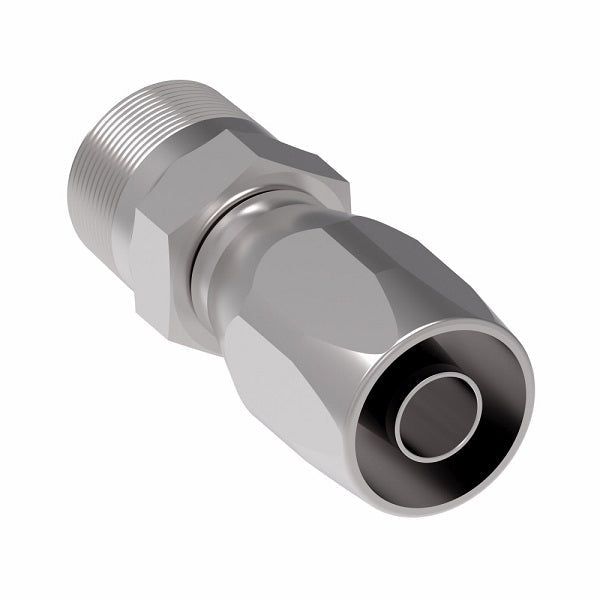

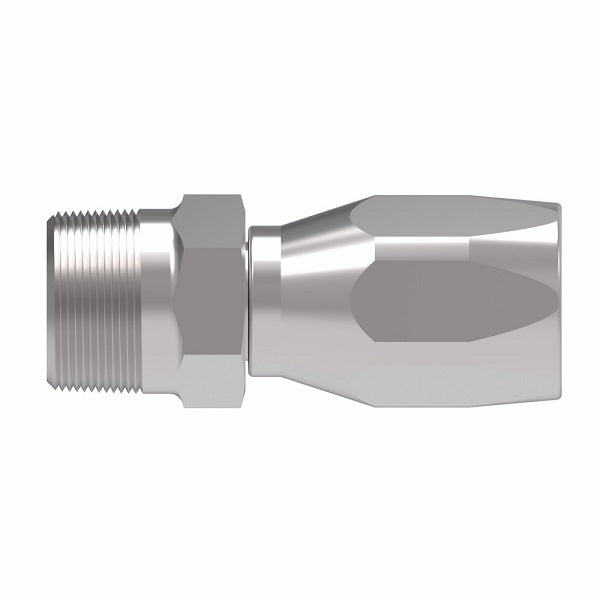

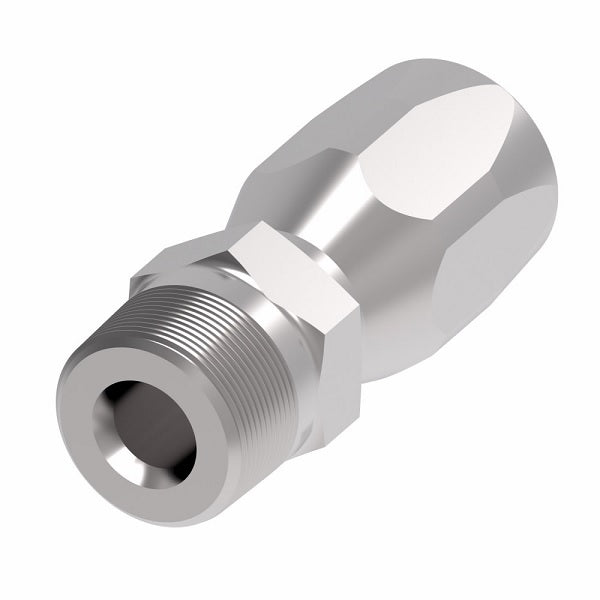

4412-12-12S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -12 Male Pipe x -12 Reusable Hose End | Steel
4412-12-12S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -12 Male Pipe x -12 Reusable Hose End | Steel
4412-12-12S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -12 Male Pipe x -12 Reusable Hose End | Steel
4412-12-12S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -12 Male Pipe x -12 Reusable Hose End | Steel

4412-12-12S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -12 Male Pipe x -12 Reusable Hose End | Steel

$36.04 - $36.04
$36.04
$36.04 - $36.04
$36.04

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4412-12-12S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ
4412-2-4S -04 1/8-27 1.68" 0.93" 0.13"
4412-4-4S -04 1/4-18 1.87" 1.12" 0.13"
4412-4-5S -05 1/4-18 1.96" 1.18" 0.17"
4412-4-6S -06 1/4-18 2.13" 1.23" 0.24"
4412-6-6S -06 3/8-18 2.13" 1.23" 0.23"
4412-4-8S -08 1/4-18 2.48" 1.33" 0.30"
4412-6-8S -08 3/8-18 2.48" 1.33" 0.36"
4412-8-8S -08 1/2-14 2.73" 1.58" 0.36"
4412-8-10S -10 1/2-14 2.88" 1.59" 0.46"
4412-12-10S -10 3/4-14 2.94" 1.65" 0.46"
4412-8-12S -12 1/2-14 3.24" 1.68" 0.49"
4412-12-12S -12 3/4-14 3.24" 1.67" 0.55"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
