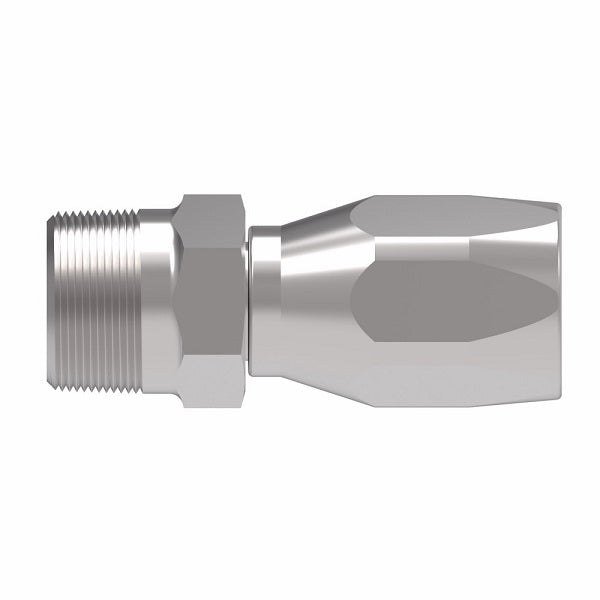

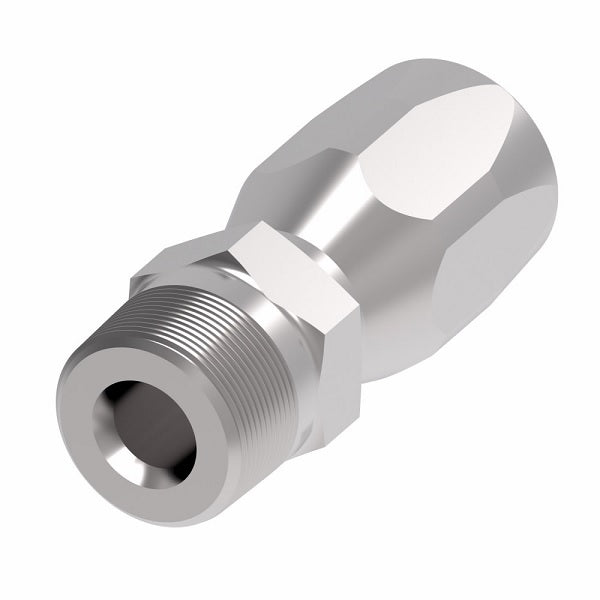

4412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
4412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
4412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel
4412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel

4412-4-6S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -06 Reusable Hose End | Steel

$11.27 - $11.27
$11.27
$11.27 - $11.27
$11.27

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4412-4-6S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ
4412-2-4S -04 1/8-27 1.68" 0.93" 0.13"
4412-4-4S -04 1/4-18 1.87" 1.12" 0.13"
4412-4-5S -05 1/4-18 1.96" 1.18" 0.17"
4412-4-6S -06 1/4-18 2.13" 1.23" 0.24"
4412-6-6S -06 3/8-18 2.13" 1.23" 0.23"
4412-4-8S -08 1/4-18 2.48" 1.33" 0.30"
4412-6-8S -08 3/8-18 2.48" 1.33" 0.36"
4412-8-8S -08 1/2-14 2.73" 1.58" 0.36"
4412-8-10S -10 1/2-14 2.88" 1.59" 0.46"
4412-12-10S -10 3/4-14 2.94" 1.65" 0.46"
4412-8-12S -12 1/2-14 3.24" 1.68" 0.49"
4412-12-12S -12 3/4-14 3.24" 1.67" 0.55"
