4412-4-8S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -08 Reusable Hose End | Steel

4412-4-8S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -08 Reusable Hose End | Steel

Name: 4412-4-8S Aeroquip by Danfoss | Male Pipe 100R5 Reusable Hose Fitting (2 Piece) | -04 Male Pipe x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4412-4-8S Danfoss
Price: 44.39 USD
Availability: InStock

$44.39 - $44.39

$44.39

$44.39 - $44.39

$44.39

Aeroquip® by Danfoss

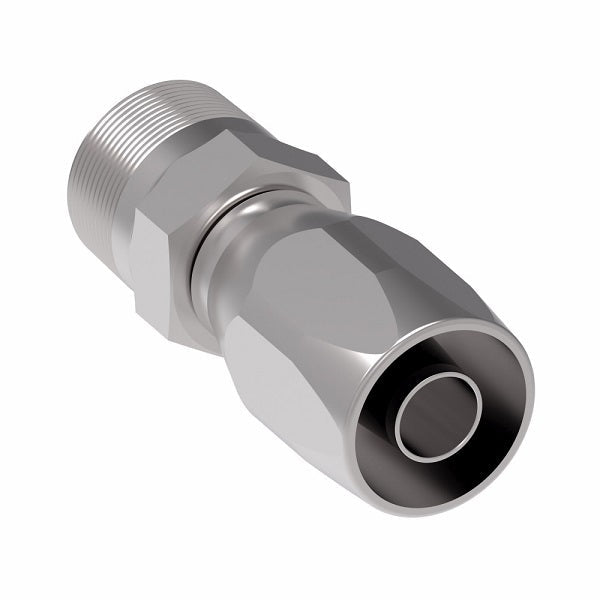

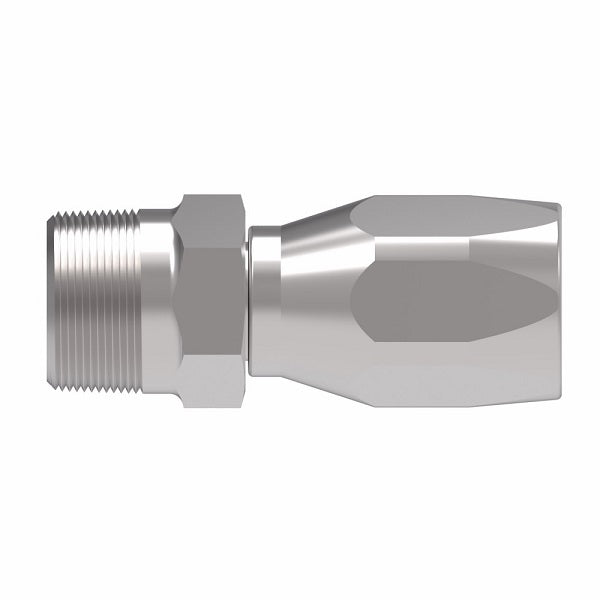

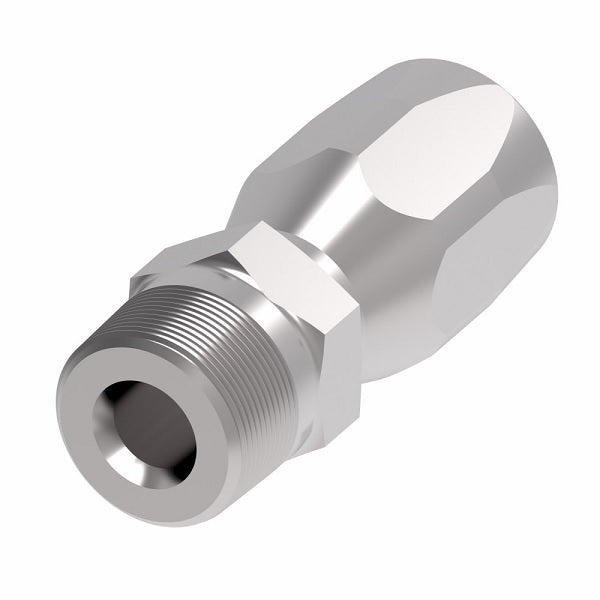

SAE 100R5 Style Reusable Hose Fitting - Male Pipe - Straight

Two Piece Fitting.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4412-4-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
4412-2-4S	-04	1/8-27	1.68"	0.93"	0.13"
4412-4-4S	-04	1/4-18	1.87"	1.12"	0.13"
4412-4-5S	-05	1/4-18	1.96"	1.18"	0.17"
4412-4-6S	-06	1/4-18	2.13"	1.23"	0.24"
4412-6-6S	-06	3/8-18	2.13"	1.23"	0.23"
4412-4-8S	-08	1/4-18	2.48"	1.33"	0.30"
4412-6-8S	-08	3/8-18	2.48"	1.33"	0.36"
4412-8-8S	-08	1/2-14	2.73"	1.58"	0.36"
4412-8-10S	-10	1/2-14	2.88"	1.59"	0.46"
4412-12-10S	-10	3/4-14	2.94"	1.65"	0.46"
4412-8-12S	-12	1/2-14	3.24"	1.68"	0.49"
4412-12-12S	-12	3/4-14	3.24"	1.67"	0.55"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
