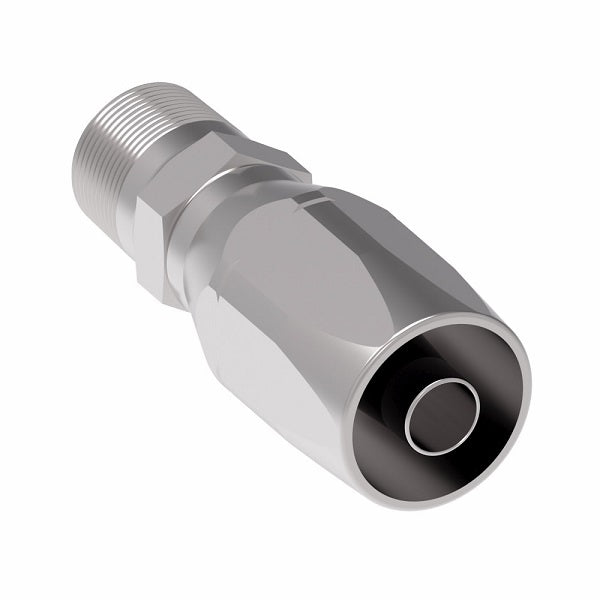

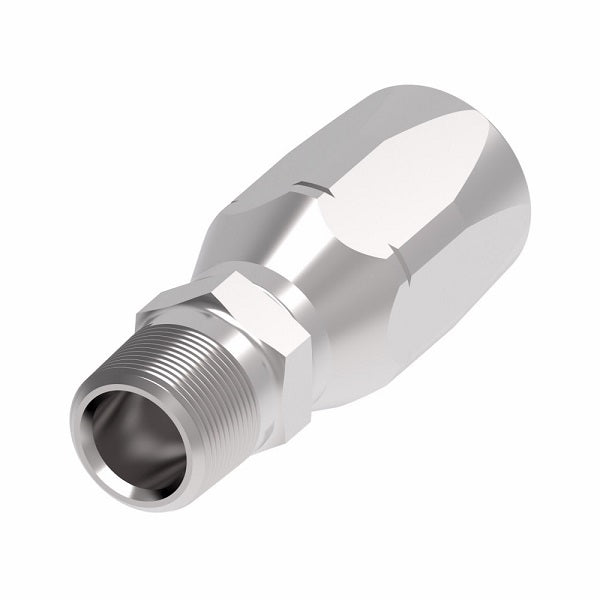

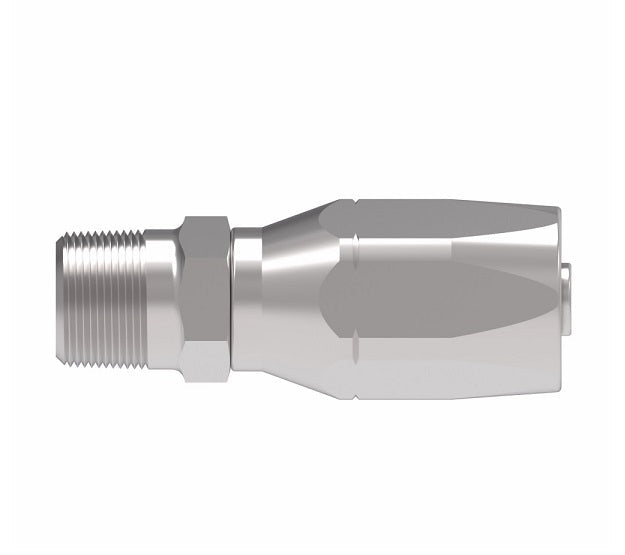

4722-16-16S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel

4722-16-16S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel

Name: 4722-16-16S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4722-16-16S Danfoss
Price: 76.3 USD
Availability: InStock

$76.30 - $76.30

$76.30

$76.30 - $76.30

$76.30

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4722-16-16S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Male NPT, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
4722-4-4S	-04	1/4-18	2.50"	1.26"	0.17"
4722-6-6S	-06	3/8-18	2.75"	1.28"	0.31"
4722-8-8S	-08	1/2-14	3.09"	1.58"	0.39"
4722-8-10S	-10	1/2-14	3.18"	1.63"	0.50"
4722-12-12S	-12	3/4-14	3.61"	1.74"	0.61"
4722-16-12S	-12	1-11-1/2	3.92"	2.06"	0.61"
4722-16-16S	-16	1-11-1/2	4.40"	2.36"	0.82"
4722-20-20S	-20	1-1/4-11-1/2	4.90"	2.59"	1.05"
4722-24-24S	-24	1-1/2-11-1/2	4.98"	2.74"	1.28"
4722-32-32S	-32	2-11-1/2	5.50"	3.05"	1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
