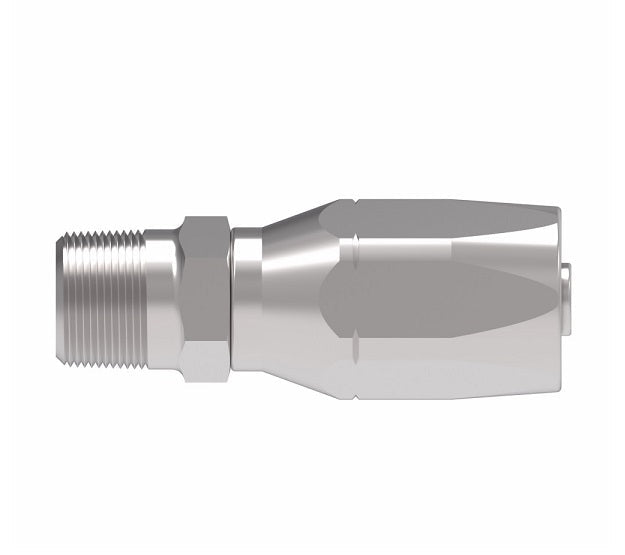

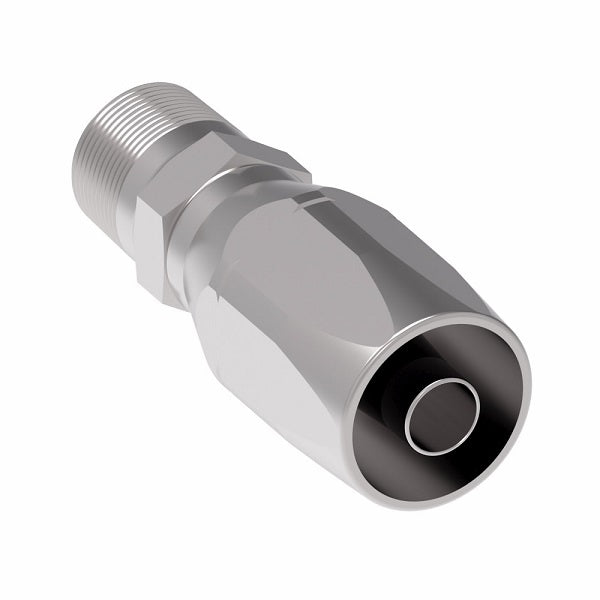

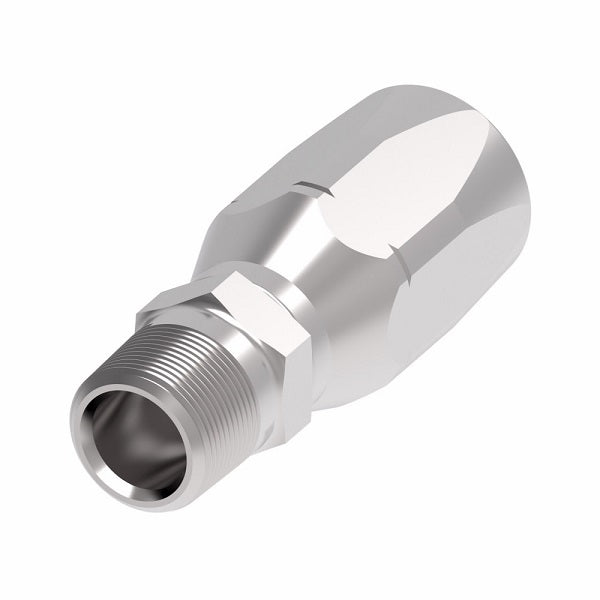

4722-8-10S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Steel

4722-8-10S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Steel

Name: 4722-8-10S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -08 Male Pipe x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4722-8-10S Danfoss
Price: 64.97 USD
Availability: InStock

$64.97 - $64.97

$64.97

$64.97 - $64.97

$64.97

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4722-8-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 5/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
4722-4-4S	-04	1/4-18	2.50"	1.26"	0.17"
4722-6-6S	-06	3/8-18	2.75"	1.28"	0.31"
4722-8-8S	-08	1/2-14	3.09"	1.58"	0.39"
4722-8-10S	-10	1/2-14	3.18"	1.63"	0.50"
4722-12-12S	-12	3/4-14	3.61"	1.74"	0.61"
4722-16-12S	-12	1-11-1/2	3.92"	2.06"	0.61"
4722-16-16S	-16	1-11-1/2	4.40"	2.36"	0.82"
4722-20-20S	-20	1-1/4-11-1/2	4.90"	2.59"	1.05"
4722-24-24S	-24	1-1/2-11-1/2	4.98"	2.74"	1.28"
4722-32-32S	-32	2-11-1/2	5.50"	3.05"	1.75"
