4722-20-20S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel
4722-20-20S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel
4722-20-20S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel
4722-20-20S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel

4722-20-20S Aeroquip by Danfoss | Male Pipe 100R2 Skive Style Reusable Hose Fitting | -20 Male Pipe x -20 Reusable Hose End | Steel

$144.61 - $144.61
$144.61
$144.61 - $144.61
$144.61

Aeroquip® by Danfoss

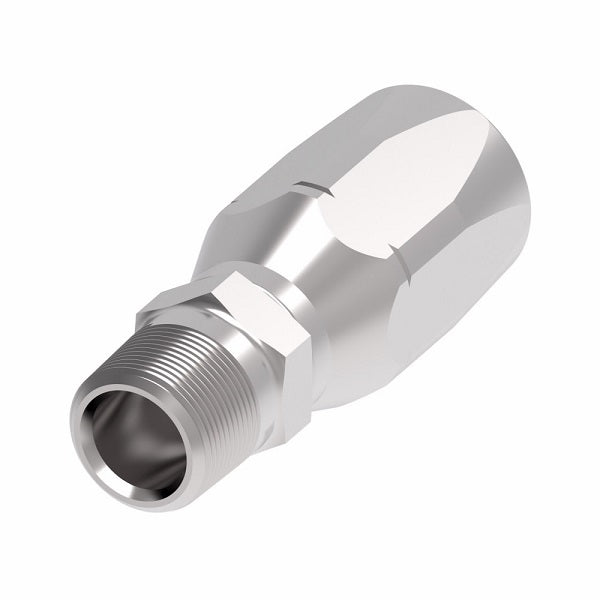

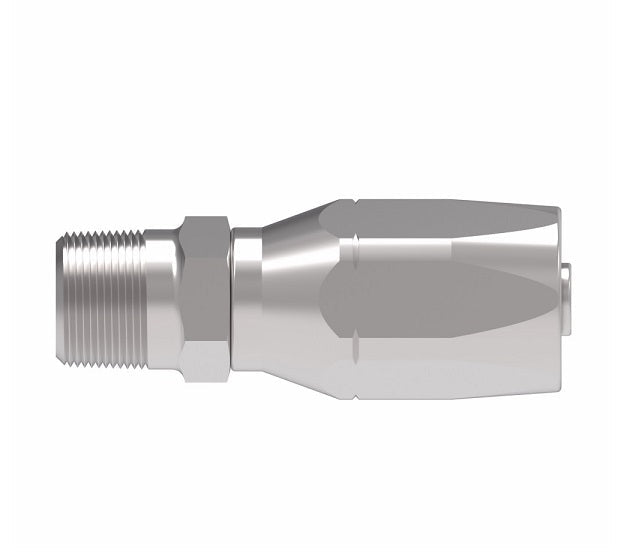

100R2 Skive Style Reusable Hose Fitting - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4722-20-20S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPT, 1-1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
4722-4-4S -04 1/4-18 2.50" 1.26" 0.17"
4722-6-6S -06 3/8-18 2.75" 1.28" 0.31"
4722-8-8S -08 1/2-14 3.09" 1.58" 0.39"
4722-8-10S -10 1/2-14 3.18" 1.63" 0.50"
4722-12-12S -12 3/4-14 3.61" 1.74" 0.61"
4722-16-12S -12 1-11-1/2 3.92" 2.06" 0.61"
4722-16-16S -16 1-11-1/2 4.40" 2.36" 0.82"
4722-20-20S -20 1-1/4-11-1/2 4.90" 2.59" 1.05"
4722-24-24S -24 1-1/2-11-1/2 4.98" 2.74" 1.28"
4722-32-32S -32 2-11-1/2 5.50" 3.05" 1.75"
