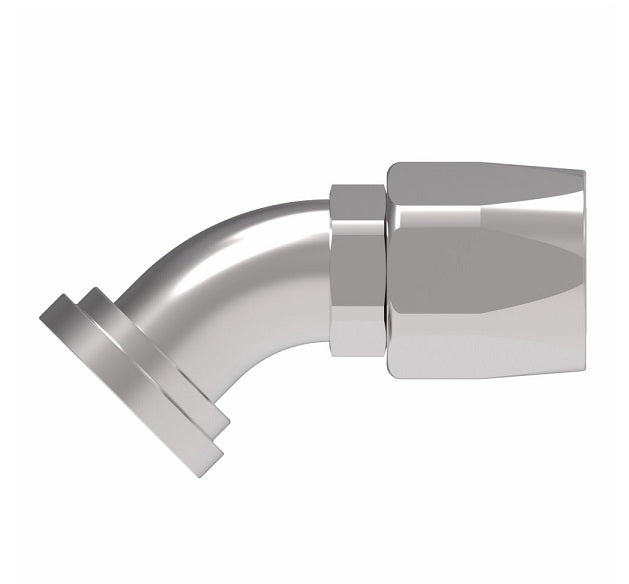

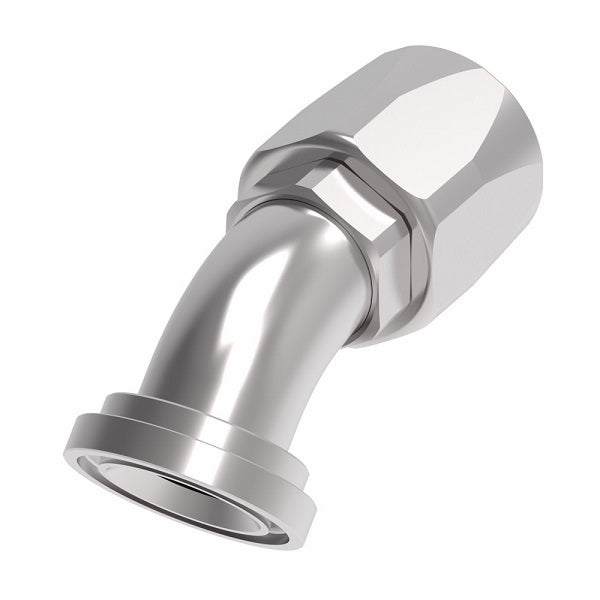

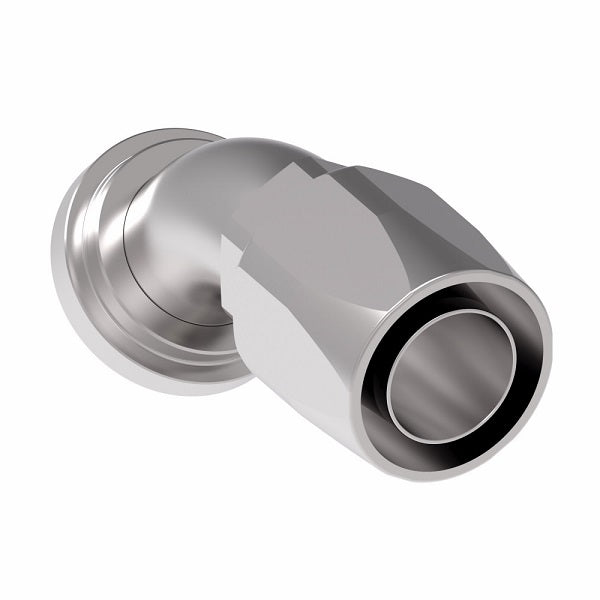

4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel | Pack of 10

$1,323.77 - $1,323.77

$1,323.77

$1,323.77 - $1,323.77

$1,323.77

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 45° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4777-16S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1in Code 61 Flange, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass & Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
4777-12S	-	-12	1.50"	4.02"	2.45"	0.55"	1.00"
4777-16S	-	-16	1.75"	3.80"	2.53"	0.82"	1.12"
4777-20S	-	-20	2.00"	4.12"	2.75"	1.05"	1.12"
4777-24S	-	-24	2.38"	4.38"	2.92"	1.28"	1.12"
4777-24-32S	-	-32	2.38"	4.78"	2.94"	1.37"	1.12"
4777-32-24S	-	-24	2.81"	4.38"	2.92"	1.28"	1.12"
4777-32S	-	-32	2.81"	5.81"	3.33"	1.75"	1.25"
4777-40-32S	-	-32	3.31"	5.22"	3.38"	1.75"	1.30"
-	39-4777-40	-40	-	-	-	-	-
