Aeroquip® by Danfoss

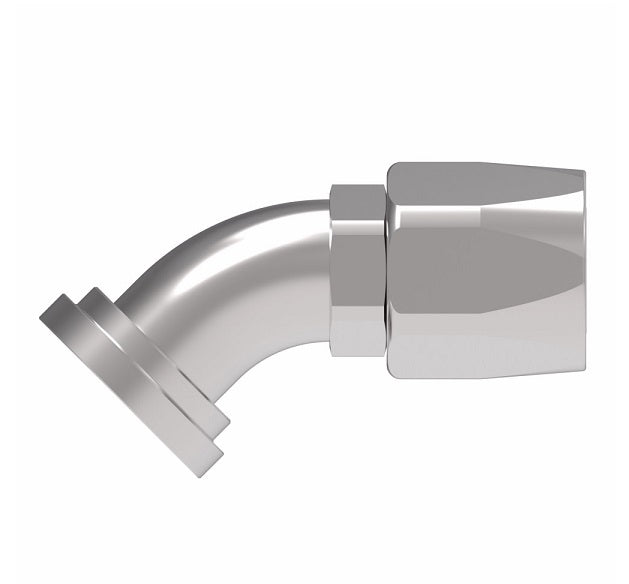

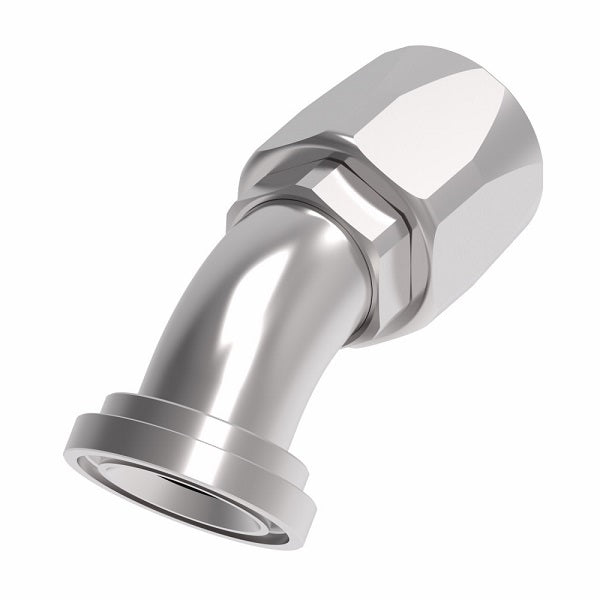

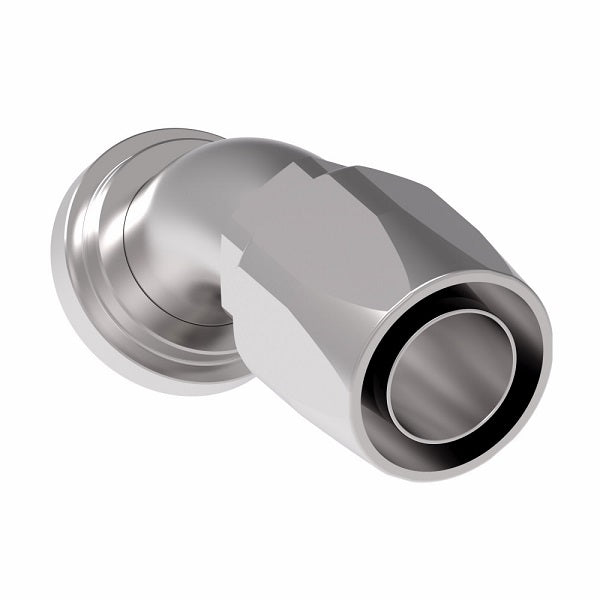

SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4777-32S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 2in Code 61 Flange, 2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Brass & Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4777-12S - -12 1.50" 4.02" 2.45" 0.55" 1.00"
4777-16S - -16 1.75" 3.80" 2.53" 0.82" 1.12"
4777-20S - -20 2.00" 4.12" 2.75" 1.05" 1.12"
4777-24S - -24 2.38" 4.38" 2.92" 1.28" 1.12"
4777-24-32S - -32 2.38" 4.78" 2.94" 1.37" 1.12"
4777-32-24S - -24 2.81" 4.38" 2.92" 1.28" 1.12"
4777-32S - -32 2.81" 5.81" 3.33" 1.75" 1.25"
4777-40-32S - -32 3.31" 5.22" 3.38" 1.75" 1.30"
- 39-4777-40 -40 - - - - -
