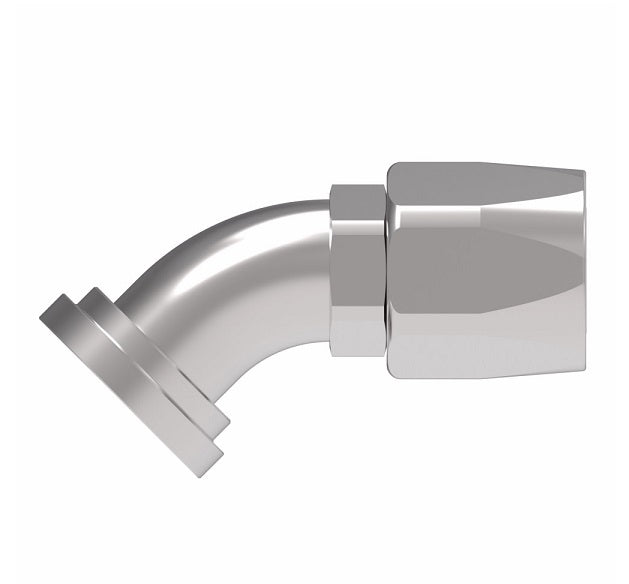

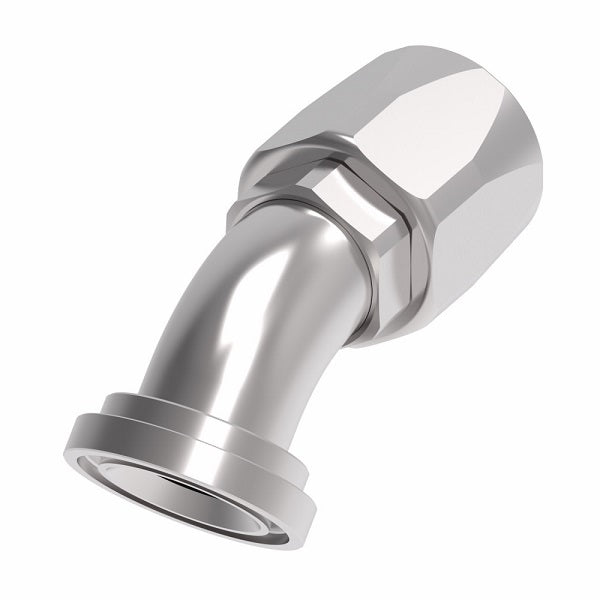

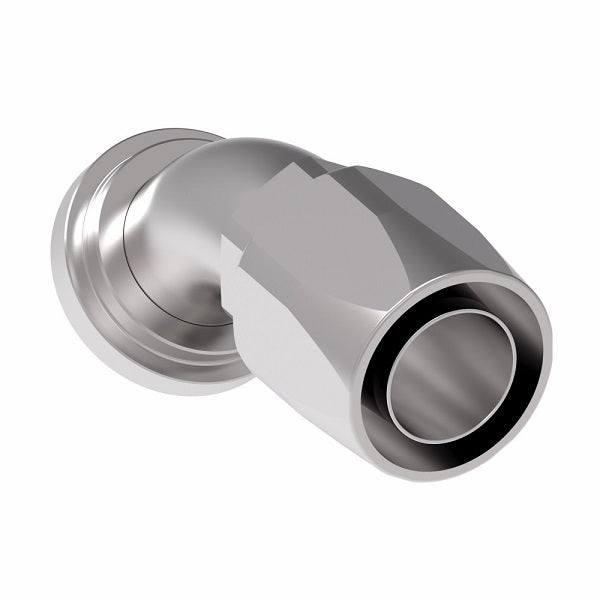

4777-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel
4777-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel
4777-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel
4777-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel

4777-40-32S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -40 Code 61 Split Flange x -32 Reusable Hose End | Steel

$214.74 - $214.74
$214.74
$214.74 - $214.74
$214.74

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4777-40-32S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 2-1/2in Code 61 Flange, 2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Brass & Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4777-12S - -12 1.50" 4.02" 2.45" 0.55" 1.00"
4777-16S - -16 1.75" 3.80" 2.53" 0.82" 1.12"
4777-20S - -20 2.00" 4.12" 2.75" 1.05" 1.12"
4777-24S - -24 2.38" 4.38" 2.92" 1.28" 1.12"
4777-24-32S - -32 2.38" 4.78" 2.94" 1.37" 1.12"
4777-32-24S - -24 2.81" 4.38" 2.92" 1.28" 1.12"
4777-32S - -32 2.81" 5.81" 3.33" 1.75" 1.25"
4777-40-32S - -32 3.31" 5.22" 3.38" 1.75" 1.30"
- 39-4777-40 -40 - - - - -
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
