Aeroquip® by Danfoss

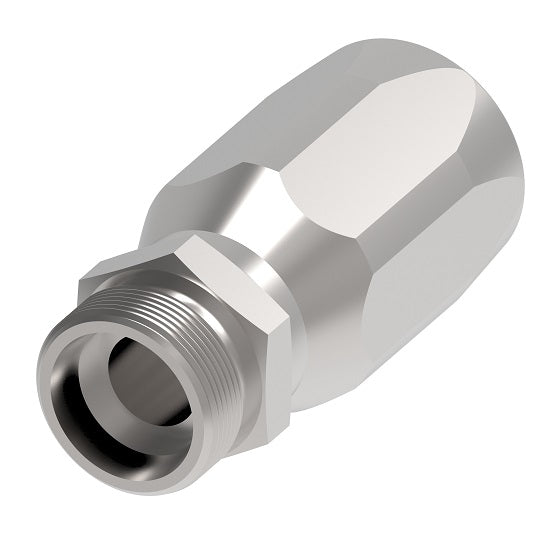

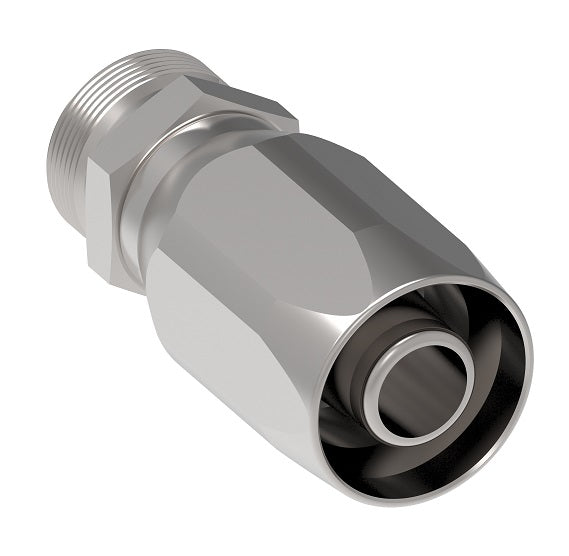

5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

O-Ring Required.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 487-12-12S Danfoss
Series:	5400 Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel
Seal Material(s):	Neoprene


Carbon Steel Part number	Body Size	Hose Size	Thread	Dimensions	Required O-Ring Part number
487-8-6S	1/2"	-6	7/8-20	.96" (24.4mm)	22546-17
487-8-8S	1/2"	-8	7/8-20	1.06" (26.9mm)	22546-17
487-12-12S	3/4"	-12	1-1/4-18	1.07" (27.2mm)	22546-23
487-16-16S	1"	-16	1-19/32-20	1.01" (25.7mm)	22546-28
