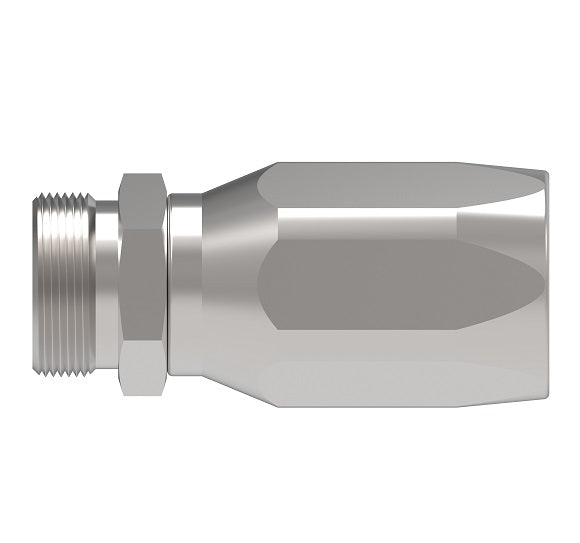

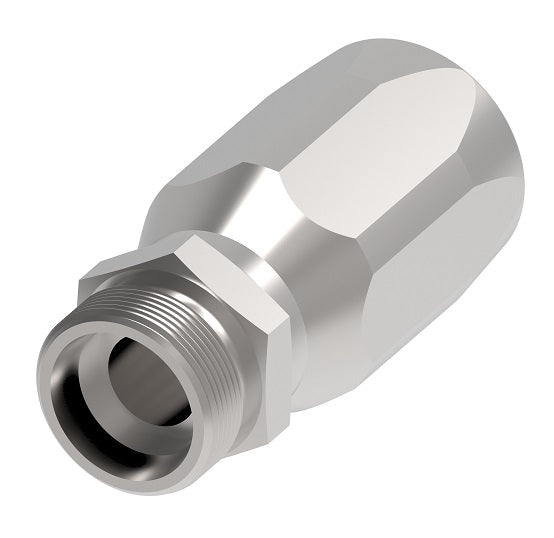

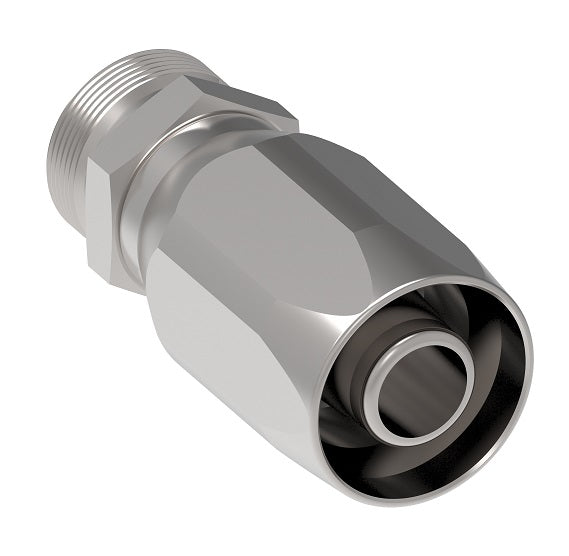

487-8-6S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -08 Male SAE 100R5 Thread x -06 Hose Barb | Carbon Steel

487-8-6S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -08 Male Thread x -06 Hose Barb | Carbon Steel

Name: 487-8-6S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -08 Male Thread x -06 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: 487-8-6S Danfoss
Price: 54.59 USD
Availability: InStock

$54.59 - $54.59

$54.59

$54.59 - $54.59

$54.59

Aeroquip® by Danfoss
5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

O-Ring Required.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 487-8-6S Danfoss
Series:	5400 Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel
Seal Material(s):	Neoprene


Carbon Steel Part number	Body Size	Hose Size	Thread	Dimensions	Required O-Ring Part number
487-8-6S	1/2"	-6	7/8-20	.96" (24.4mm)	22546-17
487-8-8S	1/2"	-8	7/8-20	1.06" (26.9mm)	22546-17
487-12-12S	3/4"	-12	1-1/4-18	1.07" (27.2mm)	22546-23
487-16-16S	1"	-16	1-19/32-20	1.01" (25.7mm)	22546-28

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
